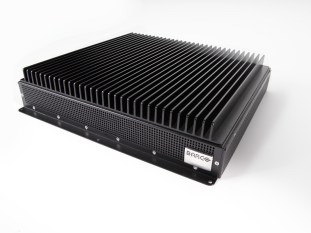

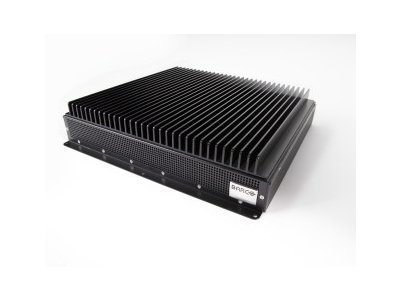

The DPM-7700 is Barco's latest graphics display server that allows ATC application servers to be separated from the controller working position. DPM-7700 acts as a high-performance networked graphics device for distributed systems and combines the latest graphics processing and computing performance into a compact, fanless package.

With the DPM-7700 as a separate display server, there is no longer a need for graphics generation on the application computer. This separation between graphics server and application computer offers a number of advantages:

  • The application computer’s overall performance increases and more advanced system architectures become possible. The application server is fully dedicated to compute-only operations since graphics controllers and input device interfaces are not required.
  • The space required for the controller working position can be organized more efficiently. The application server can even be placed in an equipment room hundreds of meters away.
  • The split between graphics – application allows for more cost-efficient, spread investments. Upgrades of the application server can be done without changing any other part of the system.

Features

  • High performance X11 and GLX graphics capability
  • Fanless design and solid state storage for noiseless operation
  • Fast boot, very low maintenance and high reliability for highest up time
  • Multiple copper/fiber 1Gb network connections
    (primary and back-up system)
  • Drives two displays, up to 4MP per display (optionally drives four displays)
  • Designed for air traffic control applications, with specific monitor and control possibilities and customizable booting and configuration options
  • Supports Barco's Tellar display recording software with either local or networked archiving
  • Uses open interface standards (network, X11 protocol, etc) for platform and OS independence
  • Project specific customizations possible
