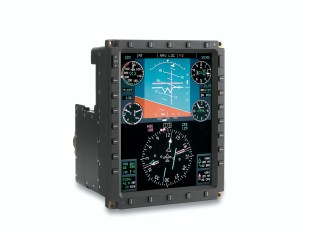

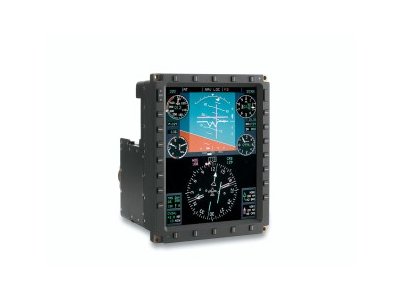

The MFD-3068 is a Multi-Function, primary flight instrumentation display with a sunlight readable 6" x 8" Active Matrix Liquid Crystal Display and LED backlight.

Versatility

AMLCD and LED-backlight technology provides high brightness, excellent contrast and reduced volume with low power consumption.
Several bezel and interfacing options are available allowing the MFD-3068 to fit into various avionics architectures for both new and retrofit aircraft.

Main features:

  • 6 x 8 inch AMLCD color screen
  • 1024 x 768 XGA resolution
  • NVG compatibility option
  • Extensive Built-In Testing (BIT)
  • Modular hardware architecture
  • Compact design
  • Several interface options
  • Up-to-date application & graphics processing options
  • Integrity monitoring option for DAL A applications
  • Can be used as remote processing unit for limited space applications
  • Forced air-cooling resulting in high reliability and low life cycle cost
  • Supports MOSArtTM

Features

Possible interfaces:

  • Arinc429 input/output channels (with software adjustable speed)
  • MIL-STD-1553 redundant bus (A & B) (with RT & BC capability)
  • Arinc708 input channels
  • Open/GND & 28V/Open discrete inputs
  • Open/GND discrete outputs
  • Ethernet lines 10/100Mbit
  • EIA-485/EIA-422 (general purpose communication line)
  • Arinc825 (avionics CAN bus)
  • Analog video input/output
  • DVI input (fixed XGA resolution)
  • DVI output (display copy or second independent image)
  • SMPTE-292M video input
  • Arinc818 input (fixed XGA resolution)
  • Arinc818 output (display copy or second independent image)
  • RS-232 (maintenance line)
  • Internal CFAST SATA SSD up to 128GB
