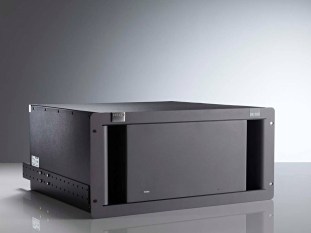

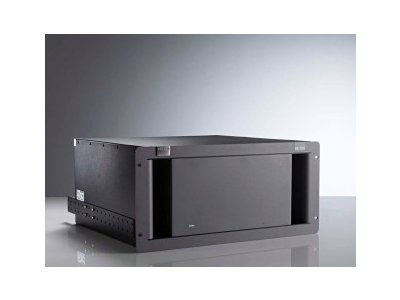

DX-100 Single-window video processor for LED displays

OTRZYMAJ RABAT DODATKOWY NAWET 40%* W każdej chwili możesz się wypisać
Cena na telefon
Produkt niedostępny
Input
  • SDI
    • 8NTSC/PAL per SMPTE 259M
    • HD 720p per SMPTE 296M / HD 1080i per SMPTE 292M
  • DVI
    • RGB/YCbCr
    • All supported to maximum pixel rate: Single link (165MHz) / Dual link (240MHz)
Output
  • Removable
  • NNI
    • Proprietary Barco format on an HDMI connector
    • Up to 2048 pixels either horizontally or vertically.
      • Maximum active area: 768K pixels
      • 12 bits per RGB per pixel
  • DVI
    • Proprietary Barco format on an DVI connector
    • Up to 2048 pixels either horizontally or vertically.
      • Maximum active area: 3x 480K pixels
Processing
  • Number of layers: 1
  • Number of layers: 1
  • Ext. Genlock: Composite sync signal (standard or tri -level) or black burst. Termination is 75 ohms, +/- 0.1%.
  • Video Delay
    • Min. delay mode: 2 ms
    • Video Delay
      • Min. delay mode: 2 ms
      • Reduced delay mode
        • Progressive sources: 2ms
        • Interlaced sources: 23ms @ 50Hz / 19ms @ 60Hz
Physical and Electrical
  • Power Input: 100-240 VAC, 50-60 Hz
  • Power consumption: 180 watts maximum
  • Mechanical:
    • H: 8.75 inches (22.22 cm)
    • W: 17.00 inches (43.18 cm)
    • W: 19.00 inches (48.26 cm) with rackmount wings
    • D: 17.00 inches (43.18 cm), excluding connectors and latches
    • 5RU rackmount
  • Temperature: 0-40 degrees C
  • Humidity: 0-95% non-condensing
  • Chassis Weight: 52 lbs. (23.6 kg)
