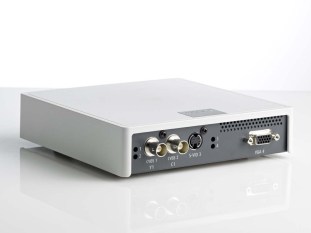

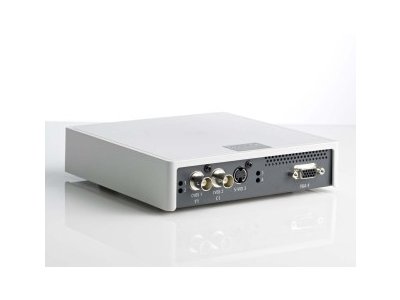

MNA-120 ENC ANA AV-to-IP encoder for the digital operating room with VGA & CVBS or VGA & S-Video

Name: MNA-120 ENC ANA AV-to-IP encoder for the digital operating room with VGA & CVBS or VGA & S-Video
Brand: Barco
Availability: OutOfStock

OTRZYMAJ RABAT DODATKOWY NAWET 40%_{* W każdej chwili możesz się wypisać}

Cena na telefon

Produkt niedostępny

downloadPobierz kartę produktu

Conversion	Analog baseband video signals to uncompressed IP video streams
Security	AES 128 encrypted transmission of all video, data & control signals
Encoder system	VGA & CVBS or VGA & S-Video
IP connectivity	10GE Fiber Optic Interface with SFP+ connector module
IP standards	AVB, IP, IGMP, IGMP snooping, PIM, RTP, RTCP, 802.1q, AES 128b, HTTP(s)
USB	USB OTG type A/B USB Type A
Audio	Line-in, line-out and mic-in connector
Compliance	Supporting HIPAA compliance External 12V Medical Approved PSU
Power consumption	< 30W
Size	152x152x37 mm
Certifications	UL 60601-1; CE EN60601-1 ed 3; c-UL CSA C22.2 No601.1 FCC-B; EN 60601-1-2 ed 3, IEC 60601-1 ed 3 CE (MDD) ICES-003
