Barco

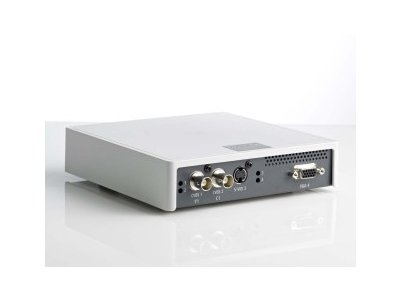

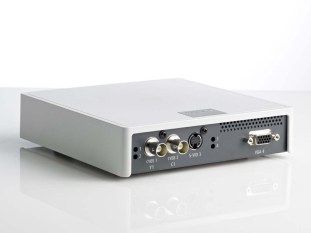

MNA-120 ENC DP AV-to-IP encoder for the digital operating room with 2x DP inputs

OTRZYMAJ RABAT DODATKOWY NAWET 40%* W każdej chwili możesz się wypisać
Cena na telefon
Produkt niedostępny
Conversion Digital and analog baseband video signals to uncompressed IP video streams
Processing Up to 300 Mega Pixels per second, for either one or two separate video signals (up to 2560 x 1600/60Hz or 2x 1920 x 1200/60Hz)
Security AES 128 encrypted transmission of all video, data & control signals
Encoder system 2x DP input
IP connectivity 10GE Fiber Optic Interface with SFP+ connector module
IP standards AVB, IP, IGMP, IGMP snooping, PIM, RTP, RTCP, 802.1q, AES 128b, HTTP(s)
USB USB OTG type A/B
USB Type A
Audio Line-in, line-out and mic-in connector
Compliance Supporting HIPAA compliance
External 12V Medical Approved PSU
Power consumption < 30W
Size 152x152x37 mm
Certifications UL 60601-1; CE EN60601-1 ed 3; c-UL CSA C22.2 No601.1
FCC-B; EN 60601-1-2 ed 3, IEC 60601-1 ed 3
CE (MDD)
ICES-003
