Barco

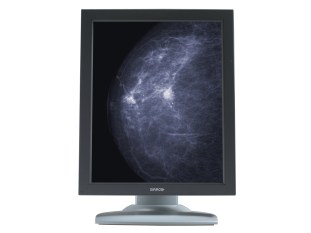

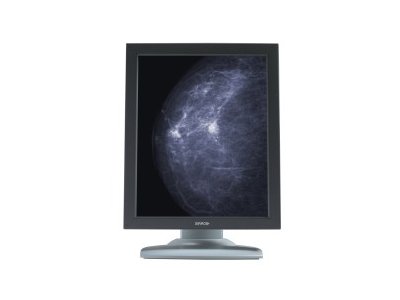

Nio 5MP MDNG-6121 5 MegaPixel (2800 x 2096) diagnostic grayscale display system

OTRZYMAJ RABAT DODATKOWY NAWET 40%* W każdej chwili możesz się wypisać
Cena na telefon
Produkt niedostępny
Screen technology TFT AM LCD Dual Domain IPS
Active screen size (diagonal) 541 mm (21.3")
Active screen size (H x V) 432 x 324 mm (17.0 x 12.8")
Aspect ratio (H:V) 4:3
Resolution 5MP (2800 x 2096)
Pixel pitch 0.1540 mm
Color imaging No
Gray imaging Yes
Number of grayscales (LUT in/LUT out) 1024 grey levels (10/12)
Viewing angle (H, V) 170°
Uniform Luminance Technology (ULT) Yes
Per Pixel Uniformity (PPU) No
Ambient Light Compensation (ALC) No
Backlight Output Stabilization (BLOS) Yes
I-Guard No
Maximum luminance 1100 cd/m²
DICOM calibrated luminance (ULT off) 500 cd/m²
Contrast ratio (ULT off) 1000:1
Response time (Tr + Tf) 32 ms
Video input signals DVI-D Dual Link
USB ports 1 upstream (endpoint), 2 downstream
USB standard 2.0
Power consumption (nominal) 78W
Power save mode Yes
Dimensions with stand (W x H x D) Portrait: 382 x 577~637 x 249 mm
Landscape: 488 x 472~532 x 249 mm
Dimensions w/o stand (W x H x D) Portrait: 382x 488 x 114 mm
Landscape: 488 x 382 x x 114 mm
Net weight with stand 12.3 kg
Mounting standard VESA (100 mm)
Screen protection Protective, non-reflective PMMA cover
Recommended modalities CT, MR, US, DR, CR, NM, Film
Certifications UL 60601-1 1ST EDITION, CAN/ CSA-C22.2 NO. 601.1-M90, IEC 60601-1 2ND ED:1988 + A1:1991 + A2:1995, IEC 60950-1:2001 1ST EDITION, CE - 2004/108/EC, CE - 93/42/EC, A1:2007/47/EC CLASS IIB, DEMKO - EN 60601-1, CCC - GB9254-2008 + GB4943-2001 + GB17625.1-2003, BSMI - CNS13438(95) + CNS14336(94), KCC, VCCI, FCC class B, FDA 510K, Rohs
Supplied accessories Getting Started Guide
Quick-Installation Sheet
Video cable (DVI Dual Link)
Main cables (UK, European (CEBEC/KEMA), USA (UL/CSA; adaptor plug NEMA 5-15P), Chinese (CCC))
USB 2.0 cable
External power supply
Optional accessories NA
QA software MediCal QAWeb
Warranty 5 years
