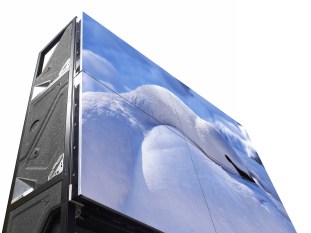

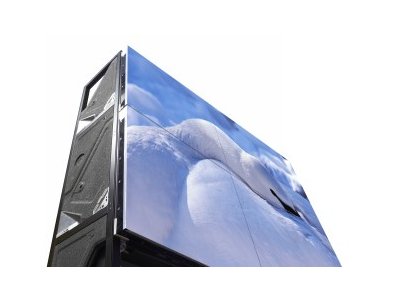

OverView OL-521 Fully redundant 50" full HD 16:9 LED video wall

Name: OverView OL-521 Fully redundant 50" full HD 16:9 LED video wall
Brand: Barco
Availability: OutOfStock

OTRZYMAJ RABAT DODATKOWY NAWET 40%_{* W każdej chwili możesz się wypisać}

Cena na telefon

Produkt niedostępny

downloadPobierz kartę produktu

Resolution	Full HD (1920 x 1080 pixels)
Brightness	On-screen: 460 Cd/m²
On-screen contrast	560,000:1
Color	Up to 165% EBU (at maximum color mode)
Display technology	Rear projection DLP
White point	2,300K \| 6,500K \| 9,300K \| arbitrary
Brightness uniformity	95% ANSI 9
Screen	FXS, with H/V 34°/33° ( +/- 3°) half gain angle
Screen gap	Hor: 0.8 mm \| 0.03”, Vert. 0.5 mm \| 0.02” (@ 25°C) Hor: < 0.4 mm \| 0.015”, Vert. < 0.3 mm \| 0.012” (@ 30°C)
Screen gap with optional NoGap screen technology	Hor: 0.1 mm \| 0.004" Vert. 0.1 mm \| 0.004" All temperature/humidity conditions
Color stability	Self calibration with spectrometer based Sense⁶
Dimensions	• Diagonal: 50" (Approx.) • Width: 1,088 mm \| 42.8" • Height: 612 mm \| 24.1" • Depth: 454 mm \| 17.9" • Weight: Projection Module: < 44 kg \| 97 lbs • Weight: Pedestal: < 28 kg \| 62 lbs
Light source	6x redundancy for each of 3 LED’s
Light source lifetime	> 60,000h (at 6500k) > 80,000h in eco mode MTBF LED > 500,000 h
Conditions for operation	10°C-40°C, 50°F-104°F, 80% humidity (non-condensing)
AC input voltage	90 – 240 V, 50-60Hz
Power	170W (eco) 230W (typ.) 350W (max)
Heat dissipation	580 BTU/h (eco) 785 BTU/h (typ.) 1,194 BTU/h (max)
Signal	2x Dual link DVI-D in / 2x Dual link DVI-D out Single link DVI-D in, with HDCP (optional)
Pixel clock	330 MHz
Input frequency	24 – 62 Hz
Genlock	49 – 61 Hz
Minimum frame delay	1 frame
Signal processing	Loop through Free cropping, free scaling (optional)
Direct ethernet access	Built in web server
Graphical user interface	All settings and operational parameters
Integration to third party equipment	WEB service API (optional)
Warranty	2 years
