Barco

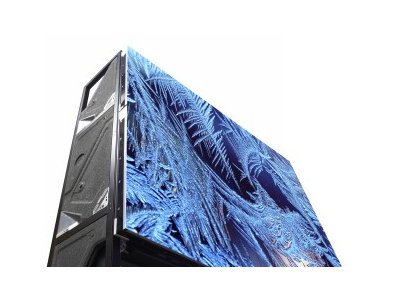

OverView OLF-510 Fully redundant 50" WXGA 16:9 LED video wall with front access

OTRZYMAJ RABAT DODATKOWY NAWET 40%* W każdej chwili możesz się wypisać
Cena na telefon
Produkt niedostępny
Resolution WXGA (1368x768 pixels)
Brightness On-screen: 460 Cd/m²
On-screen contrast 560,000:1
Color Up to 165% EBU (at maximum color mode)
Display technology Rear projection DLP
White point 2,300K | 6,500K | 9,300K | arbitrary
Brightness uniformity 95% ANSI 9
Screen FXS, with H/V 35°/33° ( +/- 3°) half gain angle
Screen gap Hor: 1.8 mm | 0.07”, Vert. 1.1 mm | 0.05” (@ 25°C)
Color stability Self calibration with spectrometer based Sense6
Dimensions • Diagonal: 50" (Approx.)
• Width: 1,088 mm | 42.8"
• Height: 612 mm | 24.1"
• Depth: 454 mm | 17.9"
• Weight: Projection Module: < 53 kg | 117 lbs
Light source 6x redundancy for each of 3 LED’s
Light source lifetime > 60,000h (at 6500k)
> 80,000h in eco mode
MTBF LED > 500,000 h
Conditions for operation 10°C-40°C, 50°F-104°F, 80% humidity (non-condensing)
AC input voltage 90 – 240 V, 50-60Hz
Power 170W (eco)
230W (typ.)
350W (max)
Heat dissipation 580 BTU/h (eco)
785 BTU/h (typ.)
1,194 BTU/h (max)
Signal 2x Dual link DVI-D in / 2x Dual link DVI-D out
Single link DVI-D in, with HDCP (optional)
Direct ethernet access Built in web server
Graphical user interface All settings and operational parameters
Pixel clock 330 MHz
Input frequency 24 – 62 Hz
Genlock 49 – 61 Hz
Signal processing Loop through
Free cropping, free scaling (optional)
Integration to third party equipment WEB service API (optional)
Warranty 2 years
