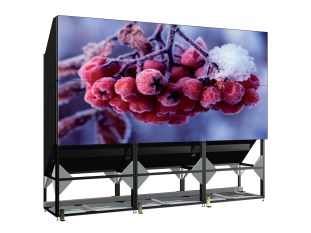

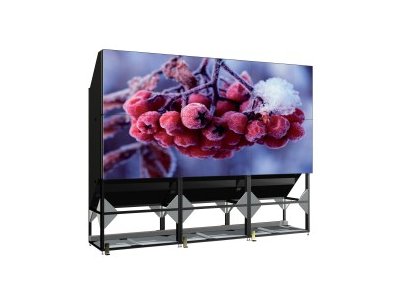

OverView OVL-508 Fully redundant 50" XGA 4:3 LED video wall

Name: OverView OVL-508 Fully redundant 50" XGA 4:3 LED video wall
Brand: Barco
Availability: OutOfStock

OTRZYMAJ RABAT DODATKOWY NAWET 40%_{* W każdej chwili możesz się wypisać}

Cena na telefon

Produkt niedostępny

Resolution	XGA (1024x768px)
Brightness	on-screen: 680 cd/m² (FXS)
On-screen contrast	1,200,000 :1
Color	Up to 165% EBU
Display technology	rear-projection DLP
White point	3,200K \| 6,500K \| 9,600K \| arbitrary
Brightness uniformity	Typ 95% ANSI 13
Screen	BB, FXS, High Gain
Screen gap	< 0.8 mm \| 0.03" modular (@25°C) < 0.4 mm \| 0.015" modular (@30°C)
Color stability	Self calibrating with spectrometer based Sense6
Dimensions	• Diagonal: 50" nominal • Width: 1,000 mm / 39.4" • Heigth: 750 mm / 29.5" • Full depth: 734 mm / 28.9" • Aspect ratio: 4:3 • Weight/module 65 kg / 143 lbs
Light source	3x six fold redundant LED block
Light source lifetime	> 60,000 h, > 80,000 h (eco)
Conditions for operation	10°C-40°C, 50°F-104°F, 80% humidity (nc)
AC input voltage	90 – 240 V, 50-60Hz
Power	typical: 230W, maximum: 350W, eco mode: 170W
Heat dissipation	typical: 785, maximum: 1,194, eco mode: 580 BTU/h
Direct ethernet access	Build in web server
Graphical user interface	All settings and operational parameters
Signal input/output	2x Dual link DVI in, 2x Dual link DVI out Single link DVI in, with HDCP (optional)
Pixel clock	320 MHz
Input frequency	24 – 62 Hz
Genlock	49 – 61 Hz
Signal processing	Loop through up to 10 cubes / Free cropping, free scaling
Integration to third party equipment	Web based API
Warranty	2 years
Structure	Standard structures: 1000 mm \| 39.4 inch, 1500 mm \| 59 inch, ... Customization possible on request
