General specifications

Projector type

Single chip DLP

Technology

0.9" DMD™

Resolution

3,840 x 2,160 (4K UHD)

Aspect ratio

1.78:1 (16:9)

Light source

Laser phosphor

Light source lifetime

20,000 - 60,000 hours

Laser intensity dependent

Light output

DCI (P3) Color Wheel: Up to 4,000 ANSI lumens

T Color Wheel: Up to 5,000 ANSI lumens

M Color Wheel: Up to 7,000 ANSI lumens

CLO (constant light output)

Yes

Contrast ratio

1,800:1 Sequential

450:1 ANSI

Brightness uniformity

>90%

Lens range

(R9802232) - EN68 (0.30:1) - Periscope Lens (requires vertical installation)

(R9801832) - FLDX UST (0.41:1) - 90° Lens

(R9802244) - EN67 (0.65:1)

(R9802243) - EN66 (0.80 - 1.21:1)

(R9802003) - EN76 (0.95 - 1.30:1)

(R9802242) - EN63 (1.20 - 1.70:1) *

(R9802241) - EN61 (1.70 - 2.50:1) *

(R9801211) - EN44 (2.50 - 4.60:1)

* Standard Lens Option(s)

Optical lens shift

Up to 88% vertical lens shift & up to 38% horizontal lens shift (depending on lens selection)

Visit the Barco Residential Lens Calculator for further information

Download Lens & Airflow Data Here

Optical dowser

Yes

Color correction

P7 RealColor™

Color gamut

DCI (P3) Color Wheel: DCI P3

T Color Wheel: REC.709

M Color Wheel: REC.709

Image processing

Embedded Warp & Blend Engine

WARP

4-Corner Warp & Bow Correction via Warp Engine

Orientation

360° Rotation

Network connection

10/100 Ethernet via RJ45 connection

Integrated web server

Yes

Diagnostics

via Prospector web interface

HDR

HDR10

3D

Active Stereoscopic 3D

Additional hardware required please contact an authorized Barco representative for details

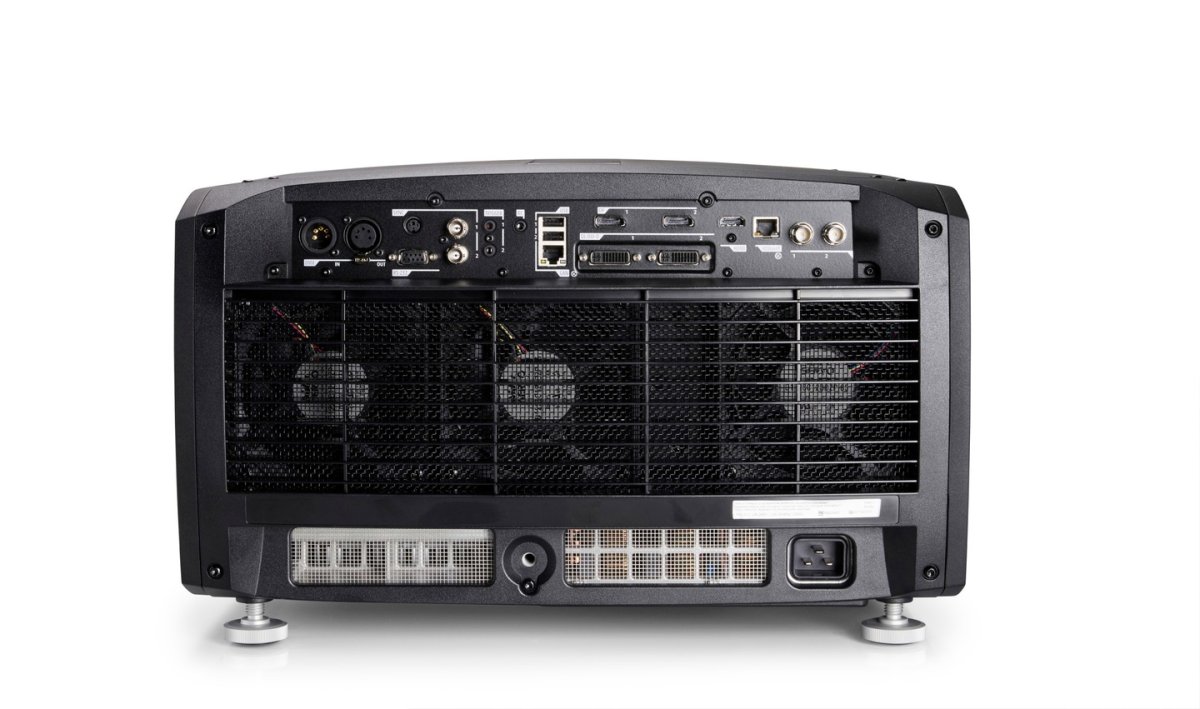

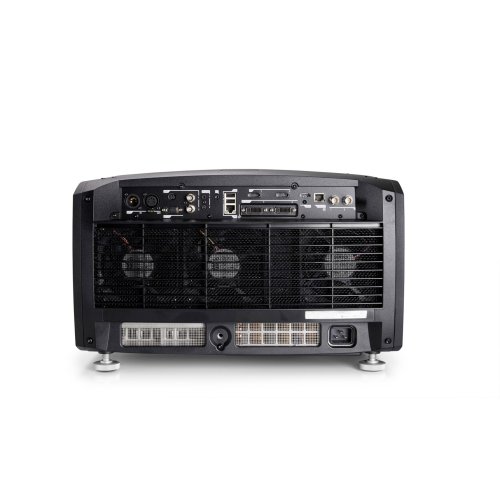

Inputs

1 x HDMI 2.0 (HDCP 2.2)

1 x HDBaseT (HDCP 1.4 - 9Gbps only)

2 x Dual Link DVI-D

2 x Display Port (1.2)

12G-SDI 1 x RJ45 Ethernet

1 x RS232

1 x Remote Control (RC)

3 x USB (2 x Rear, 1 x Front)

DMX (1 x Input, 1 x Output)

Input resolutions

From VGA up to 4K UHD (3,840 x 2,160) @ 60Hz

or up to 2,560 x 1,600 @ 120Hz

Latency

TBD

Control

IR, RS232, IP, 12v Trigger

Driver modules available for: Crestron, Control4, RTI & Savant NOTE: 12v Trigger(s) do not follow standard functionality and require an IP command to enable / disable them.

Download our integration guide for more information.

Power requirements

100 - 240V / 50 - 60Hz

Power consumption

1,100 W - Max.

BTU per hour

4,000 BTU/h - Max.

Standby power

Standby ECO Mode:

110v - 0.73W (with LAN Connection)

230v - 0.82W (with LAN Connection)

Noise level (typical at 25°C/77°F)

36 dB(A)

Operating temperature

10 to 45 °C at Sea Level

Optimal Set Point: 20 °C

Operational humidity

20 to 80% (relative humidity)

Airflow requirements

Air Inlet (from Rear w/Feet Down):  Right Side

Exhaust (from Rear w/Feet Down):  Rear Clearance Requirements:

Front: 1cm

Left: 1cm

Right: 50cm

Rear: 100cm

Top: 1cm

Exhaust airflow

112 ft3/min @ 25 °C

190 m3/hour @ 25 °C

Download Lens & Airflow Data Here

Dimensions (WxLxH)

Excluding Lens

475 x 588 x 286 mm

18.7 x 23.1 x 11.3 in.

Weight

Excluding Lens

37 kg / 81.5 lbs

Shipping Dimensions

Excluding Lens

730 x 600 x 480 mm

28.7 x 23.7 x 18.9 in.

Shipping weight

Excluding Lens

43 kg / 94.8 lbs

Standard accessories

Power Cord, Remote Control

Certifications

CE, FCC Class A and cCSAus

Safety requirements

This projector is Risk Group 2 (RG2) according to IEC EN 62471-5. This projector may become Risk Group 3 (RG3) when an interchangeable lens with throw ratio greater than 4.7 is installed. For Northern America, installation requirements according to Risk group 3 (RG3) must be followed when interchangeable lens with throw ratio greater than 2.5 is installed. Refer to the installation manual for further information.

24/7 operation

This projector is designed and warranted for heavy duty 24/7 operation.

Specific measures and design considerations have been made in order for it to comply with stringent requirements in challenging applications.

Warranty

Limited 3 years parts and labor

Extendable up to 5 years
