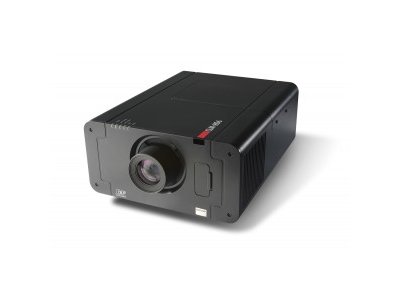

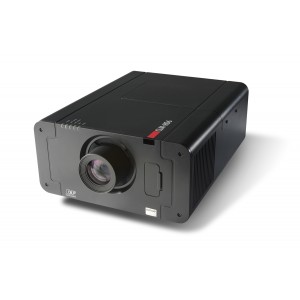

Projector type Full HD single-chip DLP projector
Technology 0.65" DMD™ x1
Color wheel: RGBYW
Resolution 1920x1080
Brightness 6,000 center lumens
5,700 ANSI lumens
Contrast ratio >1,300:1
Brightness uniformity 95%
Aspect Ratio 16:9
ScenergiX N/A
Lens type CWH
Lens range CWH
0.81:1
1.27-1.52
1.52-2.03
2.03-3.85
3.85-7.32
Optical lens shift Vertical: -20% - +120%
Horizontal: 20% (L) to 20% (R) on zoom lenses
Color correction P7
Lamps 2x330W
Lamp lifetime (typical) 1,500 hrs
2;000 hrs (max)
Transport with lamp Yes
Lamp house, quick replace Yes, auto lamp select
Customer bulb replace N/A
Lamp warranty 120 days or 500 hrs
Sealed DLP™ core Yes
Optical dowser N/A
Advance Picture in Picture Up to two sources simultaneously
Orientation table - ceiling - vertical - side (portrait)
DMX 512 N/A
WARP H+V keystone, pincushion
integrated web server N/A
CLO (constant light output) Optional
3D N/A
Inputs 2 x HDMI (HDCP 1,3); 5-BNC (RGBHV, RGBS/RGBsB;YUV); VGA (RGBHV, RGBS/RGBsB;YUV); cinch (RGBs, YUV) Composite video; S-Video
Optional Inputs N/A
Input Resolutions From NTSC up to UXGA (1600 x 1200), incl. HDTV (1920 X 1080)
max. pixel clock 165 MHz
Software tools Projection Toolset
Control IR, RS232, 12v out
Network connection 10/100 Base-T, RJ-45 connection
Power Requirements 100 - 240V / 50 - 60 Hz
Power consumption 905W
Standby mode: <2W
Noise level (typical at 25°C/77°F)" 40dB(A)
Operational ambient temperature 0°-40°C/ 32°-104°F
Operating humidity 0-80% (non-condensing)
Dissipation BTU max. 3087 BTU/h
Dimensions (WxLxH) 436x550x236mm / 17.16x21.65x9.29 inch
Weight 24kg (53 lbs)
Shipping Dimensions (WxLxH)
661x822x380mm / 26.02x32.36x14.96 inch
Standard accessories Power cord; wireless remote control, HDMI to DVI adaptor
Shipping Weight from Factory 27kg (59.5lbs)
Certifications Complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, RHoS
Warranty 3 years standard, 4th or 5th year optional
