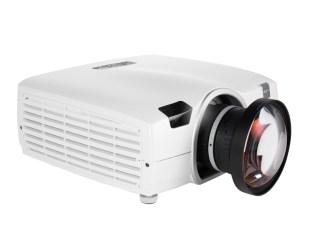

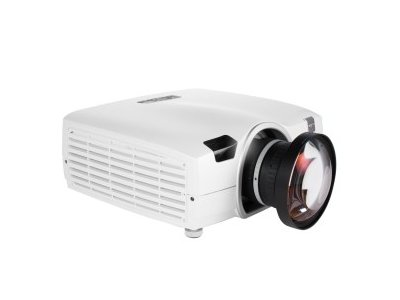

Projector type Single-chip DLP projector
Technology LVDS DMD™ with DarkChip3™
Resolution 1,920 x 1,080 (Full HD)
Brightness 5,500 ANSI lumens (high-brightness color wheel)
Contrast ratio Up to 5,300:1
Brightness uniformity >80%
Aspect Ratio 16:9
Lens type All pure glass lenses
Lenses Zoom EN51 (1.60-2.21:1), Wide Fixed EN52 (0.92:1), Ultra Wide Fixed EN53 (0.74:1), EN54 (2.5-3.9:1), Super Wide Zoom EN55 (0.80-1.08 :1), Wide Zoom EN56 (1.06 – 1.62:1), Ultra Short Throw EN57 (0.28:1)
Optical lens shift Motorized. Range depends on the lens.
Color correction RealColor™
Lamps 1 x 350W UHP (dimmable)
Lamp lifetime Up to 2,000 hours (Full power) / 2,500 hours (eco mode)
Lamp house, quick replace Yes
Lamp warranty 500 hours or 90 days
Sealed DLP™ core Yes
Orientation Table - ceiling (360 degrees through lamp axis)
3D Yes, HDMI 1.4a
Inputs 2x DisplayPort 1.2 (HBR2), 1 x DVI-Dual Link, 1 x HDMI 1.4a, 1 x VGA, 2x 3G-SDI, 1x HDBaseT
Input Resolutions 2,560 x 1,600 - 640 x 480 pixel resolution, RGBHV, RGBS, RGsB, custom formats available, HDTV (1080p, 1080i, 720p), NTSC, PAL, SECAM
Software tools SimCAD, Projector Toolset
Control IR, RS232, Ethernet, USB
Network connection 10/100/1000 base-T, RJ-45 connection, RS-232
Power requirements 100-240V / 50-60Hz
Power consumption less than 530W
Noise Level 33dBA (full), 30dBA (eco mode), 25 dBA with full noise reduction kit
Operational ambient temperature 10 - 40 °C /50 - 104 °F, 0-3,000m (Storage temperature: -20 - 60 °C/-4 - 140 °F)
Operating humidity 20 - 80% RH (Storage Conditions: 10 - 90% RH)
Dissipation BTU max 1,807 BTU/h
Dimensions (WxLxH) 342 x 306 x 143 mm / 13.46 x 12.05 x 5.63 inches
Weight 7.5 kg (16.5 lbs)
Standard accessories Power cord, wireless remote control
Certifications Compliant with FCC, part 15 Class A and CCC, cCSAus, cUL, UL and CE
Warranty Limited 3 years parts and labor. Extendable up to 5.
