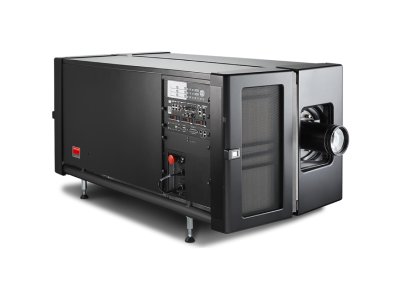

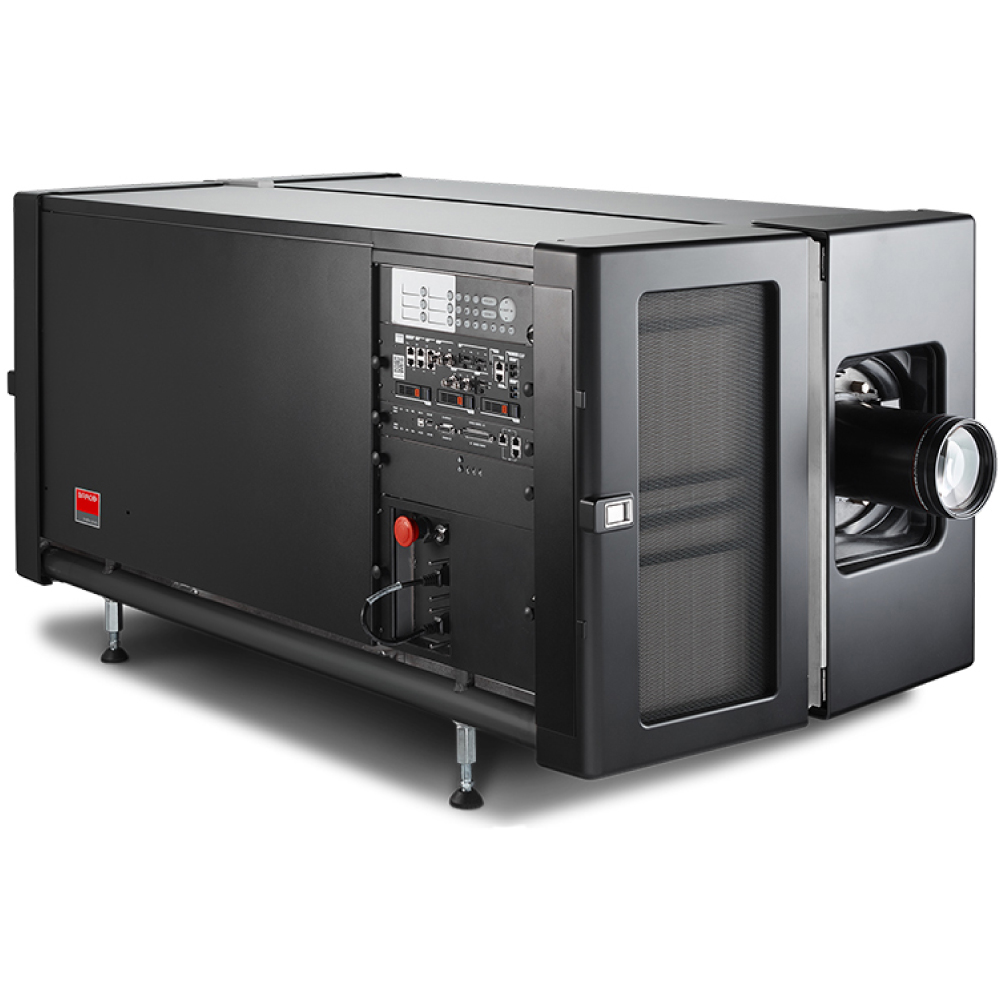

General specifications

Projector type

Three chip DLP

Technology

3 x 1.38" DMD™

Resolution

4,096 x 2,160 (4K)

Aspect ratio

1.89:1

Light source

6P RGB Laser

Light source lifetime

30,000 Hours or more

Replaceable illumination

Light output

Up to 15,000 ANSI lumens

CLO (constant light output)

Yes

Contrast ratio

6,000:1 Sequential

1,000:1 ANSI w/High Contrast Lens

Brightness uniformity

80% at sides

75% at corners

Lens range

(R98013983) - 4K-VHC HDR (1.13 - 1.72:1) *

(R98013333) - 4K-VHC HDR (1.35 - 1.84:1) *

(R98013343) - 4K-VHC HDR (1.45 - 2.10:1) *

(R98013533) - 4K-VHC HDR (1.65 - 2.70:1) *

(R98013543) - 4K-VHC HDR (1.98 - 3.40:1) *

(R98562942) - DC4K HC (1.35 - 1.86:1)

(R98562972) - DC4K HC (1.46 - 2.10:1)

(R98563002) - DC4K HC (1.65 - 2.60:1)

(R98563032) - DC4K HC (2.00 - 3.35:1)

* Standard Lens Option(s)

Optical lens shift

Up to 25% vertical lens shift & up to 15% horizontal lens shift

Motorized zoom, focus, shutter and lens shift

Tilt

20° Forwards

5° Backwards

Optical dowser

Yes

Color correction

P7

Color gamut

REC2020

Image processing

Alchemy - Integrated Cinema Media Processor (ICMP)

WARP

N/A

Orientation

Pedestal / Table Top

Network connection

10/100 Ethernet via RJ45 connection

Software tools

Barco Communicator

Integrated web server

No

HDR

HDR10

3D

Color3D (Barco Laser3D): Native 6-primary color-3D system. Only requires color filter glasses (Dolby3D glasses cannot be reused)

Active glasses systems

Polarization recuperation systems

Inputs

Barco Alchemy ICMP included in the projector:

2 x HDMI2.0a (up to 4K 2D 60fps)

2 x 3G-SDI inputs

16 x AES/EBU audio channels (2 x RJ45)

8 x GPI, 8x GPO (4 x RJ45)

2 x Gbe for content connectivity & ingest

2 x front-accessible USB 3.0 for fast ingest

2 x front-accessible USB 2.0

DCI 4K 2D up to 60fps*

DCI 4K 3D (24 or 30fps per eye)*

DCI High Frame Rates 2K 3D up to 120fps (60fps per eye)

JPEG 2000 bit-rates up to 625 Mbps

MPEG-2 (4:2:0 and 4:2:2 up to 60fps)

Input resolutions

VGA up to 4K (4,096 x 2,160) @ 120Hz

DCI

DCI Compliant

Integrated storage

3.9TB effective storage (RAID-5)

via 3 x 2TB Hot-swappable 2.5" hard-drives

Control

RS232, TCP/IP, 8 x GPIO

Power requirements

Projector:

Y connection: 200-240V / 346-415V 50-60Hz 16A 3W+N+PE

Power cord size range: 4 sq mm to 6 sq mm, 10AWG to 8AWG

Circuit breaker range: 25A to 40A

Delta connection: 200-240V 3W+PE 28A 50-60Hz

Power cord size: 6 sq mm, 8AWG

Circuit breaker: 40A

Chiller:

Y connection: 230/400V 3W+N+PE 16A, 2.5 sq mm

Delta connection: 208V / 3W+PE

Max. 16A per phase

Power consumption

Projector (Full Laser Power):

3.5 kW (2D or Polarization 3D)

2.0 kW (Barco Laser3D - 6P)

Chiller (Full Laser Power):

2.0 kW (2D or Polarization 3D)

1.6 kW (Barco Laser3D - 6P)

Noise level (typical at 25°C/77°F)

Projector (w/Chiller):

68 dB(A) - Max

Projector (w/o Chiller):

52db(A)

Operating temperature

10 to 30 °C Max. (sea Level)

Operational humidity

75% Max. (projector and chiller)

BTU per hour

18,500 BTU/h

Airflow requirements

Air Inlet (from Rear w/Feet Down): TBC

Exhaust (from Rear w/Feet Down): TBC

Exhaust airflow

TDB

Dimensions (WxLxH)

Projector:

742 x 1,446* x 706 mm (includes feet  /  excludes lens)

29.2 x 56.9 x 27.8 in. (includes feet  /  excludes lens)

Chiller:

701 x 701 x 800 mm

27.6 x 27.6 x 31.5 in.

* Excludes allowance for chiller hoses

Weight

Projector: 200 kg / ~440 lbs (excludes lens)

Chiller: ~115 kg / ~250 lbs

Shipping Dimensions

1,780 x 1,320 x 1,020 mm excludes lens - packaged separately)

70.1 x 52.0 x 40.2 in. (excludes lens - packaged separately)

Shipping weight

307 kg / 677 lbs (excludes lens - packaged separately)

Certifications

CE; ETL/UL/FCC, CCC

Warranty

Limited 3 years parts and labor

Extendable up to 5 years

Safety requirements

Class 1, Risk Group 3
