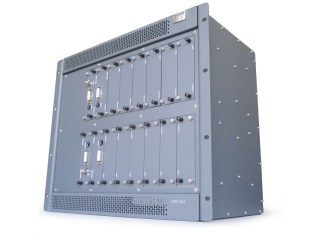

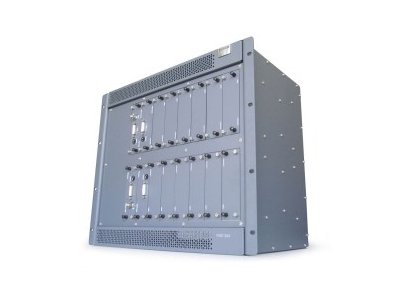

TransForm XDS-400 Universal collaboration box for any four-channel 3D stereo display

Name: TransForm XDS-400 Universal collaboration box for any four-channel 3D stereo display
Brand: Barco
Availability: OutOfStock

OTRZYMAJ RABAT DODATKOWY NAWET 40%_{* W każdej chwili możesz się wypisać}

Cena na telefon

Produkt niedostępny

I/O properties	All interfaces are dual link DVI-I Analog I/O: 50-270 MHz pixel clock Digital I/O: 50-280 MHz pixel clock All interfaces have a Mini Din 3 stereo sync connector
I/O limits	Horizontal resolution 1024-2560 pixels Vertical output resolution 768-1600 pixels Frame rate 24-120Hz Outputs 4 Maximum displays 8 (using Barco Overview OLS projection cubes)
PiP inputs	up to 6
Desktop inputs	As many as there are output channels slots pre-equipped Each desktop input signal must have the same resolution as the output channel
Cluster PC input	As many as there are output channels slots pre-equipped Each cluster input signal must have the same resolution as the output channel (in this case the number of PiP inputs is limited to 11)
Stereo support	Any PiP input can be an active stereo signal, including the Cluster PC input All outputs can be set to active stereo, left mono or right mono
Overlap support	Up to 100% horizontal and vertical Overlap possible
Software	XDS Control Center software v3 or higher needed
Power	110-220 V 800 W max
Dimensions	19" rack mountable 9U high Keep 1U free space under and above unit for cabling
