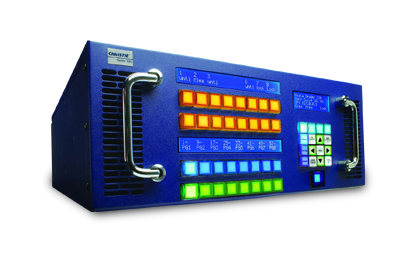

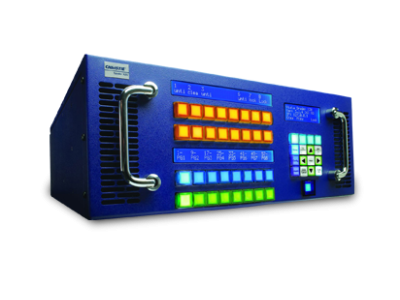

Procesor Christie Spyder X20-1608 ST HD (120-052131-01)

Name: Procesor Christie Spyder X20-1608 ST HD (120-052131-01)
Brand: Christie
Availability: OutOfStock

OTRZYMAJ RABAT DODATKOWY NAWET 40%_{* W każdej chwili możesz się wypisać}

Cena na telefon

Produkt niedostępny

downloadPobierz kartę produktu

Input Number	X20-0808: 8 Inputs total - 4 Supporting composite, S-Video, Component Analog, HDSDI, SDI and 3G SDI (SMPTE 424M) - 4 Supporting Progressive DVI and Progressive RGBHV X20-1608: 16 Inputs total - 8 Supporting composite, S-Video, Component Analog, HDSDI, SDI and 3G SDI (SMPTE 424M) - 8 Supporting Progressive DVI and Progressive RGBHV
Input Signals	Analog RGB, composite, component DVI, single-link and dual-link (8 inputs are dual-link capable) SDI, HD-SDI and 3G HD-SDI (SMPTE 424M) Optional HDCP support
Pixel Clock	Analog up to 165MHz DVI up to 330MHz
Resolutions	Horizontal resolutions up to 2560 and vertical resolutions up to 2160 within 330MHz (any resolution greater than 2048 x 1200 uses 2 input channels)
Scan Rates	Up to 120Hz dependant on pixel clock rate maximum
Output Number	8 @ (< 2048x1200) or 4 @ (2560x1600) or combination
Output Signals	Analog RGB, component DVI, single-link and dual-link (4 outputs are dual-link capable) SDI, HD-SDI and 3G HD-SDI (SMPTE 424M)
Output Pixel Clock	Analog up to 165MHz, DVI up to 265MHz
Output Resolution	Horizontal resolutions up to 2560 and vertical resolutions up to 2160 within 330MHz (any resolution greater than 2048 x 1200 uses 2 input channels)
Output Scan Rates	Up to 120Hz dependant on pixel clock rate maximum
Control & Networking	RS232 In/Out Ethernet (10/100)
Enhanced Feature Sets	Independent aspect ratio and frame rate setup Overlay's Transitions Aspect ratio conversions Integrated source monitoring Output rotation (portrait) Advanced ‘auto-sync’ functionality Optional stereoscopic support Bitmap borders Window titling Optional HDCP support
Accessories	Standard: User Manual (CD-ROM and Quick Manual), 2 AC power cords, Spyder X20 control software, rack hardware
Power Requirements	Operating Voltage: 100V AC to 240V AC @ 50/60Hz Max Current: 9.0A @ 100V AC Max Power: 900 W Dissipation: <750 BTU/hr
Operating Environment	Temp: 5 to 35°C (40 to 95° F) Humidity: 20 - 80% non-condensing
Dimensions	Size: 4RU Dimensions:(L x W x H): 21.9 x 17.3 x 7.0" (556 x 439 x 178mm) Shipping dimensions:(LxWxH) 32.3 x 25.5 x 15.0" (820 x 648 x 381mm) Volume: 2652 cubic in Weight: 59 lb (27kg) Shipping weight: 70.5 lb (32kg)
Regulatory	This product conforms to the following regulations related to product safety, environmental requirements and electromagnetic compatibility (EMC): UL/CSA/IEC 60950 (3rd Edition) FCC Class A, CE, CCC RoHS, WEE
Limited Warranty	3 years parts and labour Contact an authorised Christie representative for full details of our limited warranty
