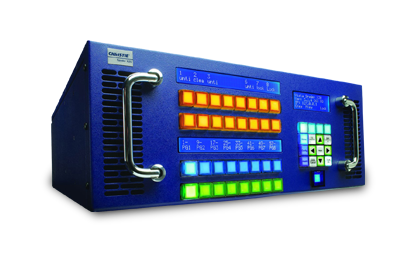

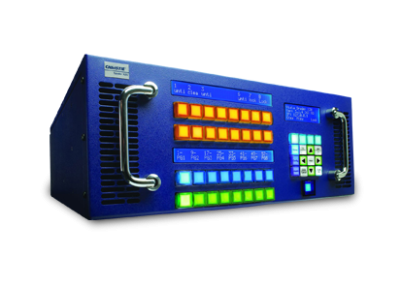

Procesor Christie Spyder X20-1608 (120-052108-01)

OTRZYMAJ RABAT DODATKOWY NAWET 40%* W każdej chwili możesz się wypisać
Zapisując się do Newslettera, otrzymasz RABAT do 40%* Możesz wypisać się w każdej chwili
Pola wymagane
Cena na telefon

Zapytanie o produkt Procesor Christie Spyder X20-1608 (120-052108-01)

TokenZmień
Pola wymagane
Produkt niedostępny

Negocjuj cenę

TokenZmień
Pola wymagane
downloadPobierz kartę produktu
Input Number
  • X20-0808: 8 Inputs total - 4 Supporting composite, S-Video, Component Analog, HDSDI, SDI and 3G SDO (SMPTE 424M) - 4 Supporting Progressive DVI and Progressive RGBHV
  • X20-1608: 16 Inputs total - 8 Supporting composite, S-Video, Component Analog, HDSDI, SDI and 3G SDO (SMPTE 424M) - 8 Supporting Progressive DVI and Progressive RGBHV
Input Signals
  • Analog RGB, composite, component
  • DVI, single-link and dual-link (8 inputs are dual-link capable)
  • SDI, HD-SDI and 3G HD-SDI (SMPTE 424M)
  • Optional HDCP support
Pixel Clock
  • Analog up to 165MHz
  • DVI up to 330MHz
Resolutions
  • Horizontal resolutions up to 2560 and vertical resolutions up to 2160 within 330MHz (any resolution greater than 2048 x 1200 uses 2 input channels)
Scan Rates
  • Up to 120Hz dependant on pixel clock rate maximum
Output Number
  • 8 @ (< 2048x1200) or 4 @ (2560x1600) or combination
Output Signals
  • Analog RGB, component
  • DVI, single-link and dual-link (4 outputs are dual-link capable)
  • SDI, HD-SDI and 3G HD-SDI (SMPTE 424M)
Output Pixel Clock
  • Analog up to 165MHz, DVI up to 265MHz
Output Resolution
  • Horizontal resolutions up to 2560 and vertical resolutions up to 2160 within 330MHz (any resolution greater than 2048 x 1200 uses 2 input channels)
Output Scan Rates
  • Up to 120Hz dependant on pixel clock rate maximum
Control & Networking
  • RS232 In/Out
  • Ethernet (10/100)
Enhanced Feature Sets
  • Independent aspect ratio and frame rate setup
  • Overlay's
  • Transitions
  • Aspect ratio conversions
  • Integrated source monitoring
  • Output rotation (portrait)
  • Advanced ‘auto-sync’ functionality
  • Optional stereoscopic support
  • Bitmap borders
  • Window titling
  • Optional HDCP support
Accessories
  • Standard: User Manual (CD-ROM and Quick Manual), 2 AC power cords, Spyder X20 control software, rack hardware
Power Requirements
  • Operating Voltage: 100V AC to 240V AC @ 50/60Hz
  • Max Current: 9.0A @ 100V AC
  • Max Power: 900 W
  • Dissipation: <750 BTU/hr
Operating Environment
  • Temp: 5 to 35°C (40 to 95° F)
  • Humidity: 20 - 80% non-condensing
Dimensions
  • Size: 4RU
  • Dimensions:(L x W x H): 21.9 x 17.3 x 7.0" (556 x 439 x 178mm)
  • Shipping dimensions:(LxWxH) 32.3 x 25.5 x 15.0" (820 x 648 x 381mm)
  • Volume: 2652 cubic in
  • Weight: 59 lb (27kg)
  • Shipping weight: 70.5 lb (32kg)
Regulatory
  • This product conforms to the following regulations related to product safety, environmental requirements and electromagnetic compatibility (EMC):
  • UL/CSA/IEC 60950 (3rd Edition)
  • FCC Class A, CE, CCC
  • RoHS, WEE
Limited Warranty
  • 3 years parts and labour
  • Contact an authorised Christie representative for full details of our limited warranty
