Specifications
5,000
ISO lumens

4,500
ANSI lumens

1800:1 Full on/of
Contrast ratio

WUXGA (1920 x 1200)
Resolution

Solid-state laser
Illumination type

20,000 hours
Illumination performance (hrs)

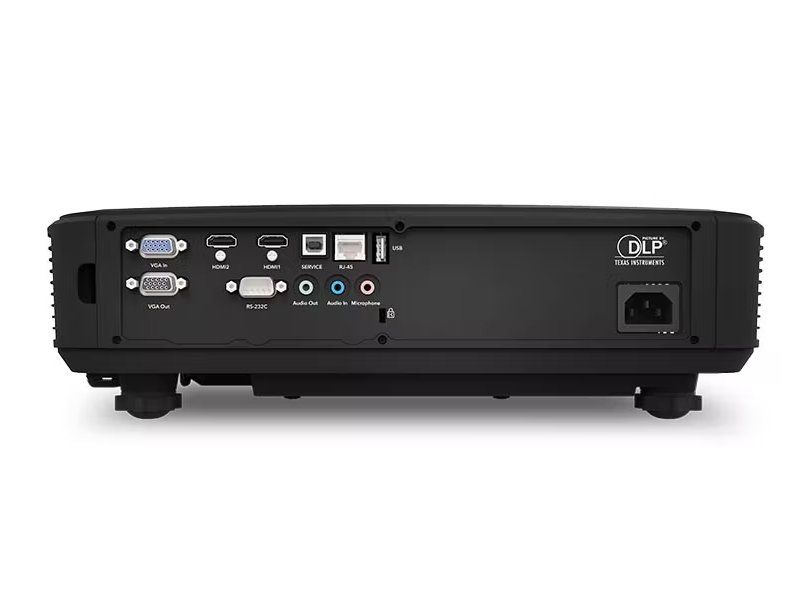

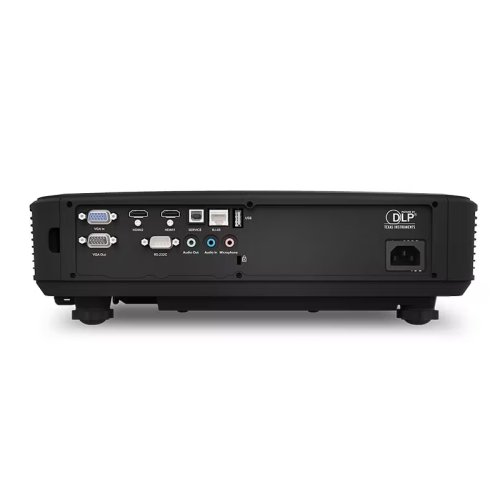

Signal inputs (standard)
HDMI x 2
VGA x 1
VGA audio in (3.5mm phone jack)
Microphone input
USB A - for power out only (5V/1.5A)

Max input pixel rate
1600 x 1200 @ 60Hz (162 MHz)
1920 x 1200 @ 60Hz reduced blanking (154 MHz)

Signal inputs (3D)
Frame packed/side-by-side/top and bottom 3D (HDMI 1.4a)
Frame sequential DLP link 3D (VGA/HDMI)
Frame sequential DLP link 3D (1024 x 768 @120Hz / 1280 x 720 @120Hz)

Pixel clock
162 MHz

Signal outputs
VGA monitor out
10W speaker
Audio output (3.5mm phone jack)

Control and networking
RS-232 in
Ethernet (100BaseT) RJ45
Built-in keypad
Compatible with Crestron RoomView, AMX, PJ Link

Accessories
Standard:
IR remote
AC Line cord for projector head
Optional:
Wall mount

Lens
0.25:1 ultra short throw lens
Focus adjustment
Fixed offset based on image size

Operating voltage
100-240 VAC @ 50/60Hz

Power consumption
350W +/-15% @110V max
250W +/-15% @110V eco mode

Operating current
3.2A +/-15% @110V

Dissipation
1373 BTU/hr max
981 BTU/hr eco mode

Audible noise
Standard mode: 36dBA
Eco mode: 30dBA

Size
(LxWxH) 12.5 x 15.08 x 3.46" (318 x 383 x 88mm) w/o feet

Weight
12.79lbs (5.8kg)

Shipping size
(LxWxH) 20.4 x 16.5 x 12.9" (518 x 420 x 328 mm)

Shipping weight
17.2lbs (7.8 kg)

Operating temperature
40-104°F (5-40°C)

Operating humidity
10-85% non-condensing

Regulatory
This product conforms to all relevant European directives, standards, safety, health and environmental concerns
Directives: RoHS, REACH, WEEE, UL/CSA/IEC 60950-1, FCC Class A, CE, CCC, CU, BIS

Warranty
3 years on the projector
3 years or 20,000 hours on the illumination system*
Contact an authorized Christie representative for full details of our limited warranty
