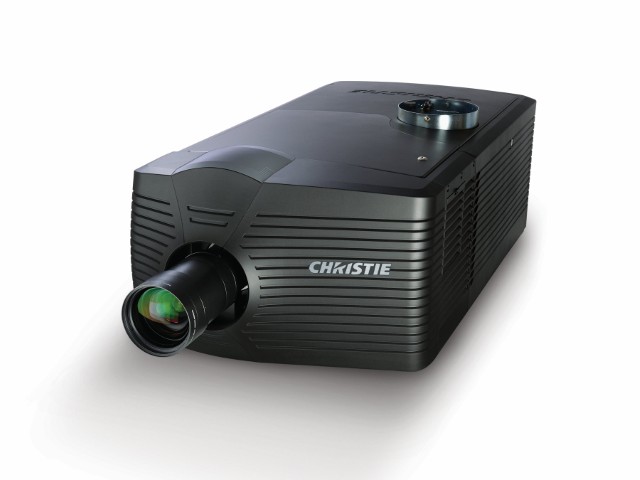

Brightness

10,000 centre [9000 ANSI] 2.0kW lamp
18,000 centre [16,000 ANSI] 3.0kW lamp
25,000 centre [22,500 ANSI] 3.0kW SD lamp
29,000 centre [27,000 ANSI] 4.5kW lamp
35,000 centre [32,500 ANSI] 6.0kW lamp
Contrast

2000:1 (full on/off)
Display Technology and Resolution
4K (4096 x 2160)
3-chip 1.38" DMD™
Supports 4096 x 2160 (24-120Hz) and 3840 x 2160 (24-120Hz)
HDCP compliant
Lamp[1]
Type

Xenon bubble, user-replaceable lamp
Estimated life

2.0kW lamp CDXL-20 3500 hrs
3.0kW lamp CDXL-30 2500 hrs
3.0kW lamp CDXL-30SD 1500 hrs
4.5kW lamp CDXL-45 900 hrs
6.0kW lamp CDXL-60 750 hrs
Input signals
Standard

4x Twin DisplayPort input card
Optional

Dual link DVI input card
Twin HDMI input card
Dual 3G HD-SDI input card
Signal inputs

4K resolution, 120Hz frame rate:

4x Twin DisplayPort input card (standard)
DisplayPort 1.1a via 8 frame-locked L/R 60Hz signals, combined 120Hz output
4:4:4 8/10
4:2:2 8-10-12-bit
DisplayPort 1.1a via 4 frame-locked 120Hz signals in, 120Hz output;
4:4:4 8-/10-bit
4:2:2 8-/10-/12-bit via 4 frame-locked 120Hz signals
Optional Twin HDMI input card (4 required) via 8 frame-locked L/R 60Hz signals, combined 120Hz output:
4:4:4 8-/10-bit
4:2:2 8-/10-/12-bit
Optional Dual Link DVI-D (4 required)
120Hz via 4 120Hz signals in, 120Hz output;
RGB 8-bit
Optional for 60Hz input 120Hz output frame doubled[2]:

2x Twin DisplayPort input card (standard)
2 x DisplayPort 1.1a
60Hz
4:4:4 8-/10-bit
Optional 2x (or 4x) DVI (Dual Link) Input Card
60Hz
RGB 8-bit
Optional 4x 3G HD-SDI
60Hz
4:2:2 10-bit

2K/HD scaling to 4K/QuadHD 4096 x 2160/3840 x 2160 2K/HD resolution, 120Hz frame rate:
1x Twin DisplayPort input card (standard)
DisplayPort 1.1a via 2 frame-locked L/R 60Hz signals, combined 120Hz outpu
4:4:4 8/10
4:2:2 8-/10-/12-bit
DisplayPort 1.1a via 4 frame-locked 120Hz signals in, 120Hz output
4:4:4 8-/10-bit
4:2:2 8-/10-/12-bit via 4 frame-locked 120Hz signals
Optional Twin HDMI input card (1 required) via 2 frame-locked L/R 60Hz signals, combined 120Hz output:
4:4:4 8-/10-bit
4:2:2 8-/10-/12-bit
Optional Dual Link DVI-D (1 required)
120Hz via 4 120Hz signals in, 120Hz output
RGB 8-bit
Optional for 60Hz input 120Hz output frame doubled[2]:

1x Twin DisplayPort input card (standard)
1x DisplayPort 1.1a
60Hz
4:4:4 8-/10-bit
Optional 1x HDMI Input Card (or DVI-D input card with proper cables)
60Hz
RGB 8-bit
Optional 1x DVI (Dual Link) Input Card
60Hz
RGB 8-bit
Optional 1x 3G HD-SDI
60Hz
4:2:2 10-bit
*Also compatible with a variety of 24-60Hz 2D formats.

Control and networking
RS-232
Ethernet (10/100) RJ45 with ChristieNET™ connectivity
Detachable LCD control module
Lens mount
Tool-free lens insertion system
Boresight adjustable
Motorised horizontal and vertical offset
Focus and zoom adjustment
Lenses
Fixed

0.72:1 (no offset)
0.9:1 (Offset: Vertical: ± 29% Horizontal: 9%)
Zoom

1.13-1.31:1 (Offset: Vertical: ± 56% Horizontal: 19%)
1.31-1.63:1 (Offset: Vertical: ± 13% Horizontal: 4%)
1.63-2.17:1 (Offset: Vertical: ± 13% Horizontal: 4%)
1.98-2.71:1 (Offset: Vertical: ± 13% Horizontal: 4%)
2.71-3.89:1 (Offset: Vertical: ± 13% Horizontal: 4%)
3.89-5.43:1 (Offset: Vertical: ± 13% Horizontal: 4%)
5.43:1-7.69:1 (Offset: Vertical: ± 56% Horizontal: 19%)
Accessories
Standard - choose one:

CDXL-20
CDXL-30
CDXL-45
CDXL-60 lamp
Lamp adapter kit for CDXL-20 (if CDXL-20 is to be used).
Heat extraction fan kit
Optional

Rack mount pedestal
Replacement air filter for the light engine
Replacement air filter for the liquid cooling radiator
Christie Twist™ Pro software[3]
Emitter (standard range)
Emitter (long range)
Active 3D eyewear (1, 5 or 10 pack)
Passive stereoscopic modular
Passive 3D eyewear
Optional input cards-
NOTE: there may be a reduced full frame rate capability unless proper combinations of cards are selected.

Dual 3G HD-SDI input card
Twin HDMI input card
Dual Link DVI-D
Power requirements
Projector head

Operating voltage: Single phase 200-240V AC @50/60Hz
Operating current: 27A max at 200V
Lamp power supply

Type: detached, 7kW low-ripple, switch-mode lamp power supply
Operating voltage: 3-phase 200-230V AC @ 50/60Hz
Operating current: 38A per phase max
Operating voltage: 3-phase 380-415V AC @ 50/60Hz
Operating current: 26A per phase max
Dimensions
Size

Projector head (LxWxH): 51.1 x 25.5 x 19.0" (1298 x 648 x 483mm)
Lamp power supply(LxWxH): 21 x 18 x 21" (533 x 457 x 533mm)
Shipping size

Projector head (LxWxH): 60.4 x 36.0 x 28.5" (1535 x 914 x 724mm)
Lamp power supply (LxWxH): 28.0 x 25.0 x 31.5" (710 x 635 x 800mm)
Weight

Projector head 251lbs (114kg)
Lamp power supply 89lbs (40.5kg)
Shipping weight

Projector head 322lbs (146kg)
Lamp power supply 135lbs (62kg)
Operating environment
Operating temperature: 50–95°F (10–35°C)
Humidity (noncondensing): 20–80%
Regulatory Approvals
This product conforms to these regulations related to product safety, environmental requirements and electromagnetic compatibility (EMC):

Directives:

(EC) 2011/65/EU (RoHS)
2012/19/EU (WEEE)
Regulations:

(EC) No. 1907/2006 (REACH)
CAN/CSA C22.2 No. 60950-1
UL 60950-1
IEC 60950-1
EN 60950
FCC, Part 15, Subpart B, Class A
EN55022/CISPR22 Class A
EN55024/CISPR24
CCC (late 2013)
The product is designed to comply to the rules and regulations required for the product to be sold in various regional markets, including: USA/Canada, EU, Norway, Australia/New Zealand, Kuwait, China, Korea, Japan, Mexico, Ukraine, Russia, South Africa, Saudi Arabia, Singapore, Brazil, UAE.

Limited warranty
3 years parts and labour (including light engine)
Contact an authorised Christie representative for full details of our limited warranty
