800 lumens ANSI
10,000:1 dynamic contrast (under LED control) - No mechanical iris required
95% brightness and colour uniformity after electronic adjustment
Display Technology and Resolution

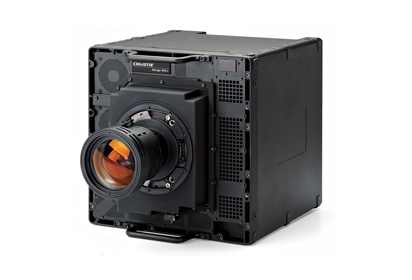

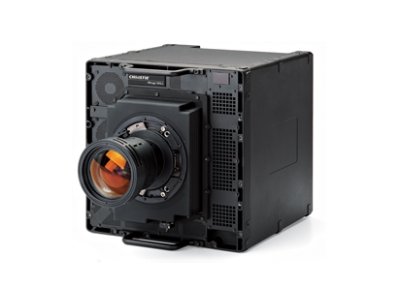

Revolutionary solid state projector using a single TI Darkchip 3™ DMD with a solid state illumination engine (no colour wheel) and sealed optics
Native 2560 x 1600 WQXGA
True 120Hz 3D (60Hz per eye content) or 120Hz via frame doubled content (30Hz per eye)
Input
Signals: Up to 2560 x 1600 WQXGA1
2560 x 1600 @ 60Hz x 2 frame-locked with Dual input 3D for true 120Hz (60Hz per eye 3D), or
2560 x 1600 @ 60Hz x 1 for frame doubled output to 120Hz2
Inputs, Control & Networking
External PC is required for projector operations via Ethernet
Additional Ethernet connections for Christie ArrayLOC™ network
2 x xRS-232 ports
1 x RS-422 port
2 x Dual-link DVI-D
Optical system
Lens mount

Mechanical, horizontal and vertical lens shift
No shutter required
No iris required – user programmable illumination parameters (eliminates the need for a mechanical shutter)
Illumination

Solid state illumination
Illumination lifetime greater than 50,000 hours (to 50% output)
Christie ArrayLOC™

Manages the brightness and colour levels of all projectors within an array to a common level, in real-time with no additional latency
Lenses
Fixed

0.68:1 WQXGA lens
0.80:1 WQXGA lens
Zoom

1.28-1.71:1 WQXGA lens
Offsets

0.68:1 lens features ±5% (horizontal) and ±15% (vertical) offset when mounted in landscape orientation3
0.80:1 lens features +100%/-60% (horizontal) and +150%/-100% (vertical) offset when mounted in landscape orientation3
1.28-1.71:1 lens features +100%/-60% (horizontal) and +150%/-100% (vertical) offset when mounted in landscape orientation3
Standard accessories
Line cord
Christie Twist™4 optional
User kit (icludes manual, IR remote)
Christie AutoCAL™4
Chrstie Twist Pro™4
Rugged motion platform kit5 to withstand 5g shock load (purpose-built)
Ruggedised transit case
Remote IR sensor
Christie MotoBlend™ optical blending6
Enhanced feature sets
Minimum Processing Latency (MPL™)
Auto power up
Menus in 5 languages
Christie ArrayLOC™ – automatic, continuous management of brightness and color space levels of all projectors in an array to a common level, in real-time
Power requirements
Operating voltage: 100-240 VAC 50/60Hz
Operating current: 10A max 100-120VAC, 5A 200-240VAC (lower in normal operational modes)
Dissipation: 2316 BTU/hr max. (lower in normal operational modes)
Dimensions
Size: 15.8" x 15.8" x 16.0" (400 x 400 x 406 mm) without lens
Weight: 88.2lbs (40kg) without lens
Shipping weight: 176.4lbs (80kg) without lens
Operating Environment
Temperature: 40-95°F (5-40°C)
Humidity: 20-80% non-condensing
Portrait and landscape orientation
Regulatory Approvals
Directives (EC) 2011/65/EU (RoHS)
2011/19/EU (WEEE)
Regulation (EC) No. 1907/2006 (REACH)
CAN/CSA C22.2 No. 60950-1
UL 60950-1
IEC 60950-1
FCC, Part 15, Subpart B, Class A
EN55022 / CISPR22 Class A
EN55024 / CISPR24
ICEES003 / NMB003 (A)
Certifications marks and product approvals (check with Christie for latest update): cULus (Canada & US), CE (EU), CCC (China), GoST-R (Russia), KC (Korea), PSE (Japan), C-Tick (Australia & New Zealand); South Africa; Mexico
Warranty
2 years parts and labour (inclusive)
Extended warranty options available
Contact an authorised Christie representative for full details of our limited warranty
