Christie

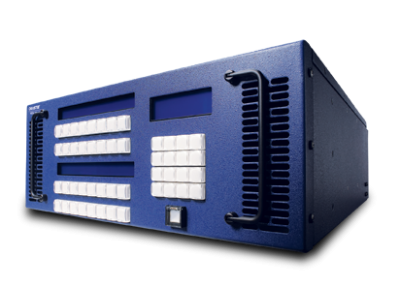

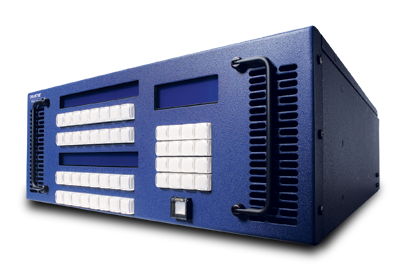

Przełącznik matrycowy Christie Vista URS-1608 Universal-Routing-Switcher (124-002103-XX)

OTRZYMAJ RABAT DODATKOWY NAWET 40%* W każdej chwili możesz się wypisać
Zapisując się do Newslettera, otrzymasz RABAT do 40%* Możesz wypisać się w każdej chwili
Pola wymagane
Cena na telefon

Zapytanie o produkt Przełącznik matrycowy Christie Vista URS-1608 Universal-Routing-Switcher (124-002103-XX)

TokenZmień
Pola wymagane
Produkt niedostępny

Negocjuj cenę

TokenZmień
Pola wymagane
downloadPobierz kartę produktu
Input - Number
  • Vista URS-0808: 8 inputs total - 4 supporting composite, S-video, component analog, HDSDI, SDI, and 3G SDI (SMPTE 424M) and 4 supporting progressive DVI and progressive RGBHV
  • Vista URS-1608: 16 inputs total - 8 supporting composite, S-video, component analog, HDSDI, SDI, and 3G SDI (SMPTE 424M) and 8 supporting progressive DVI and progressive RGBHV
Input - Signals
  • Analog RGB composite, component DVI, single-link and dual-link (8 inputs are dual-link capable)
  • SDI, HD-SDI and 3G HD-SDI (SMPTE 424M)
Input - Resolutions
  • Up to 2560 x 1600 (any resolution greater than 2048 x 1200 uses 2 input channels)
Output - Number
  • 8 @ (< 2048x1200) or 4 @(2560x1600) or combination
Output - Signals
  • Analog RGB, component DVI, single-link and dual-link (4 outputs are dual-link capable)
  • SDI, HD-SDI and 3G HD-SDI (SMPTE 424M)
Output - Resolutions
  • Up to 2560 x 1600 (any resolution greater than 2048 x 1200 uses 2 output channels)
Pixel Clock
  • Analog up to 165MHz, DVI up to 265MHz
Scan Rates
  • Up to 120Hz dependant on pixel clock rate maximum
Control & Networking
  • RS232 In/Out
  • Ethernet (10/100)
Enhanced Feature Sets
  • Independent aspect ratio and frame rate setup, overlay's, transitions, aspect ratio conversions, integrated source monitoring, built-in image capture, output rotation (portrait), optional stereoscopic support
Accessories
  • Standard: User Manual (CD_ROM and quick manual), 2 AC power cords, URS control software, rack hardware
Power Requirements
  • Operating Voltage: 100 VAC to 240 VAC @ 50/60 Hz
  • Max Current: 9.0 A @100VAC
  • Max Power: 900 W
  • Dissipation:
Dimensions
  • Size:4RU
  • Dimensions:(L x W x H): 21.9 x 17.3 x 7.0" (556 x 439 x 178 mm)
  • Shipping Dimensions:(LxWxH) 32.3 x 25.5 x 15.0" (820 x 648 x 381mm)
  • Volume: 2652 cubic in
  • Weight: 59 lb (27 kg)
  • Shipping Weight: 70.5 lb (32 kg)
Operating Environment
  • Temp: 5 to 35° C (40 to 95° F)
  • Humidity: 20 - 80% non-condensing
Regulatory
  • This product conforms to the following regulations related to product safety, environmental requirements and electromagnetic compatibility (EMC):
  • UL/CSA/IEC 60950 (3rd Edition)
  • FCC Class A, CE, CCC
  • RoHS, WEE
Limited Warranty
  • 1 year parts and labor
  • Contact an authorized Christie representative for full details of our limited warranty
