Operating System
Crestron 3-Series; real-time, preemptive, multi-threaded/multitasking kernel; Transaction-Safe Extended FAT file system; supports up to 10 simultaneously running programs; preloaded DMPS3 .AV Framework Base Program
Memory
SDRAM 512 MB
Flash 4 GB
Communications
Ethernet 10/100/1000 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, industry-standard TCP/IP stack, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), FIPS 140-2 compliant encryption, IEEE 802.1X, SNMP, BACnet™/IP [10], IPv4 or IPv6, Active Directory authentication, IIS v.6.0 Web Server, SMTP e-mail client, RSTP, Private Network Mode
Control Subnet 10/100/1000 Mbps Ethernet, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP server, DNS Server, port forwarding, Isolation Mode, IEEE 802.3at Type 1 compliant PoE PSE
AirMedia [1] (Via Ethernet) 10/100 Mbps, IPv4, DHCP, TLS, AES, mDNS, HTTPS web server
Streaming (Via Ethernet) 10/100 Mbps, DHCP, H.264 decoding, MJPEG decoding, HDCP 2.2, RTP, RTSP, SDP
Cresnet Cresnet master mode
USB USB signal routing via select DM transmitters and receivers, or via USB-EXT-DM series extenders [9]; USB device port for computer console (setup)
RS-232 2-way device control and monitoring up to 115.2k baud with hardware and software handshaking
IR/Serial 1-way device control via infrared up to 1.2 MHz or serial TTL/RS-232 (0-5 Volts) up to 115.2k baud; supports CNXRMIRD IR Receiver [6]
DigitalMedia DM 8G+, HDCP 2.2, EDID, CEC, PoDM+ [8], Ethernet
HDBaseT HDCP 2.2, EDID, CEC, RS-232, PoE+ [8], Ethernet
HDMI HDCP 2.2, EDID, CEC
NOTE: Supports management of HDCP and EDID; supports management of CEC between the connected HDMI and HDBaseT devices and the control system
Video
Switcher 9x4 matrix, Crestron QuickSwitch HD technology
Scalers (HDMI outputs) (2) 4K video scalers with motion-adaptive deinterlacing, intelligent frame rate conversion, Deep Color support, 3D to 2D conversion [5], content-adaptive noise reduction, and widescreen format selection (zoom, stretch, maintain aspect-ratio, or 1:1)
Input Signal Types HDMI w/Deep Color, 3D [5], & 4K (DVI & Dual-Mode DisplayPort compatible [4]) on Inputs 1-6; DM 8G+ & HDBaseT w/Deep Color, 3D [5], & 4K on Inputs 7 & 8; streaming & AirMedia on Input 9 (LAN)
Output Signal Types HDMI w/Deep Color & 4K (DVI compatible [4]) on Outputs 1 & 2; DM 8G+ & HDBaseT w/Deep Color, 3D, & 4K on Outputs 3 & 4

Maximum Resolutions
Scan
Type Resolution Frame
Rate Color
Sampling Color
Depth
Progressive 4096x2160 DCI 4K
&
3840x2160 4K UHD 24 Hz 4:4:4 30 bit
30 Hz 4:4:4 24 bit
30 Hz 4:2:2 36 bit
60 Hz 4:2:0 24 bit
2560x1600 WQXGA 60 Hz 4:4:4 36 bit
1920x1080 HD 1080p 60 Hz 4:4:4 36 bit
Interlaced
(excluded on
HDMI outputs) 1920x1080 HD 1080i 30 Hz 4:4:4 36 bit
NOTE: Common resolutions are shown; other custom resolutions are supported at pixel clock rates up to 300 MHz. Interlaced video is not supported on the HDMI outputs.
Streaming Decoder
Video Formats H.264 (MPEG-4 part 10 AVC), MJPEG
Audio Format AAC stereo
Bitrates Up to 25 Mbps
Resolutions Up to 1080p60
AirMedia [1]
Users Supports up to 32 users (presentation device connections)
Client Software OS Support Windows 7, Windows 8, Window 10, Mac® OS X® (versions 10.10 through 10.13)
Client Software Video Frame Rate 30 fps, audio supported
Mobile App OS Support Apple® iOS, Android
Full Screen Device Mirroring Shares the screen image and audio from an Apple iOS, Android, Mac OS X, or Windows device
Resolutions 800x600@60Hz, 1024x768@60Hz, 1280x720@60Hz (720p60), 1280x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1920x1080@60Hz (1080p60), 1920x1200@60Hz
Audio Format Stereo
Audio – General
Switcher/Mixer 14x5 stereo source matrix switcher, digital & analog source inputs, streaming & AirMedia source input, 6-channel gated mic mixer w/DSP, independent mixer per analog output (6-ch mic + 1 stereo source), independent stereo DSP per analog output, integrated power amplifier, two independent digital output mixers (6-ch mic + 1 stereo source), 2x1 digital output mix selector per digital output
Analog-To-Digital Conversion 24-bit 48 kHz
Digital-To-Analog Conversion 24-bit 48 kHz
Frequency Response, Digital & Analog Line Outputs 20 Hz to 20 kHz ±0.5 dB (digital source);
20 Hz to 20 kHz ±0.5 dB (analog line source);
20 Hz to 20 kHz ±0.7 dB (microphone source)
Frequency Response, Speaker Output 20 Hz to 20 kHz ±1 dB @ 25 Watts into 8 Ohms;
100 Hz to 20 kHz ±2.5 dB @ 70 or 100 Volts
S/N Ratio, Digital & Analog Line Outputs >108 dB, 1 kHz, A-weighted (digital source);
>103 dB, 1 kHz, A-weighted (analog line source)
S/N Ratio, Speaker Output 98 dB @ 25 Watts into 8 Ohms, 1 kHz, A-weighted;
96 dB @ 25 Watts into 4 Ohms, 1 kHz, A-weighted
THD+N, Digital & Analog Line Outputs <0.002%, 20 Hz to 20 kHz (digital source);
<0.005%, 20 Hz to 20 kHz (analog line source);
<0.05%, 20 Hz to 20 kHz (microphone source)
THD+N, Speaker Output <0.1%, 1 kHz @ 25 Watts into 4 or 8 Ohms;
<0.7%, 20 Hz to 20 kHz @ 25 Watts into 4 or 8 Ohms
Stereo Separation, Digital & Analog Line Outputs >108 dB (digital source);
>103 dB (analog source)
Stereo Separation, Speaker Output >65 dB @ 25 Watts, 1 kHz
Channel Separation, Digital Outputs >108 dB (digital source);
>103 dB (analog source)
Channel Separation, Analog Line Outputs >103 dB
Speaker Output Modes 4Ω/8Ω stereo, 70V mono, or 100V mono
Speaker Amplifier Output Power 25 Watts RMS per channel @ 8 Ohms, 4 Ohms tolerant;
50 Watts RMS @ 70 or 100 Volts
Audio – Microphone Inputs
Typical of 6 microphone input channels (Mic/Line 1 – 6)
Input Signal Types Mono analog mic or line level
Phantom Power Enable/Disable per channel
Gain 0 to +60 dB Gain adjustment in 3 dB increments, plus Mute
Delay 0.0 to 85.0 ms
EQ Center Frequencies 50 to 200 Hz (Band 1), 200 to 800 Hz (Band 2), 800 to 3.2k Hz (Band 3), 3.2k to 12.8k Hz (Band 4)
EQ Gain ±12.0 dB per band
High-Pass Filter On or Off
Gating Threshold -80 to 0 dB
Gating Depth (Attenuation) -80 to 0 dB
Gating Attack 1 to 250 ms
Gating Release 1 to 1000 ms
Compression Threshold -80 to 0 dB
Compression Ratio 1:1 to 10:1
Compression Attack 1 to 250 ms
Compression Release 1 to 1000 ms
Compression Curve Hard or soft knee
Audio – Source Inputs
Input Signal Types HDMI (Dual-Mode DisplayPort compatible [4]) on Inputs 1-6, DM 8G+ & HDBaseT on Inputs 7 & 8, streaming & AirMedia on Input 9 (LAN), analog 2-channel on Aud In 1-5
Analog Formats Stereo 2-channel
Digital Formats Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS-ES, DTS 96/24, DTS HD® High Res, DTS-HD Master Audio, DTS:X®, LPCM up to 8 channels[11]
Input Compensation ±10.0 dB, adjustable per input
Audio – Analog Line & Speaker Outputs
Typical of 1 analog line/speaker output (Program Out & Speaker Outputs) and 2 analog line outputs (Aux Out 1 – 2)
Output Signal Type/Format Stereo 2-channel
Mic 1 – 6 -80 to +10 dB Level adjustment range, plus Mute and Pan
Mics Master -80 to +10 dB Level adjustment range, plus Mute
Source -80 to +10 dB Level adjustment range, plus Mute and Balance
Master Volume -80 to +10 dB Level adjustment range, plus Mute and Mono
Mixer Presets 1 through 5
Bass ±12.0 dB
Treble ±12.0 dB
Equalization 10-band graphic + 4-band parametric
GEQ Center Frequencies 31.5, 63, 125, 250, 500, 1k, 2k, 4k, 8k, 16k Hz
GEQ Gain ±12.0 dB per band
PEQ Center Frequencies 10 to 22000 Hz per band
PEQ Gain -36.0 to +24.0 dB per band
PEQ Bandwidth 0.02 to 3.50 octaves per band
PEQ Types Peaking EQ, High Pass, Low Pass, High Shelf, Low Shelf, Notch
Delay 0.0 to 85.0 ms
Limiter Threshold -80 to 0 dB
Limiter Ratio 1:1 to 10:1
Limiter Attack 1 to 250 ms
Limiter Hold 1 to 200 ms
Limiter Release 1 to 1000 ms
Limiter Curve Hard or soft knee
EQ Presets 1 through 10 (includes Delay and Limiter settings)
Audio – Digital Outputs
Typical of 4 digital outputs (HDMI Output 1 – 2 & DM Output 3 – 4)
Output Signal Types HDMI (DVI compatible [4]) on Outputs 1 & 2, DM 8G+ & HDBaseT on Outputs 3 & 4
Formats Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS-ES, DTS 96/24, DTS HD® High Res, DTS-HD Master Audio, DTS:X®, LPCM up to 8 channels[11]
Digital Output Mix Select 1 – 2 Selects which mix is routed to the corresponding output
Typical of 2 digital output mixers:
Mic 1 – 6 -80 to +10 dB Level adjustment range, plus Mute and Pan
Mics Master -80 to +10 dB Level adjustment range, plus Mute
Source -80 to +10 dB Level adjustment range, plus Mute and Balance
Master Volume -80 to +10 dB Level adjustment range, plus Mute
Mixer Presets 1 through 5
Connectors – Audio/Video Inputs
AUD IN 1 – 5 (5) 5-pin 3.5 mm detachable terminal blocks;
Balanced/unbalanced stereo line-level analog audio inputs;
Input Impedance: 24k Ohms balanced/unbalanced;
Maximum Input Level: 4 Vrms balanced, 2 Vrms unbalanced
MC1/LN1 – MC6/LN6 (6) 5-pin 3.5 mm detachable terminal blocks;
Comprises (6) balanced microphone/line audio inputs;
Balanced Mic Input Level: -60 to 0 dBV, 1 Vrms maximum;
Balanced Line Input Level: -31 to +11 dBV, 3.7 Vrms maximum;
Unbalanced Line Input Level: -37 to +5 dBV, 1.85 Vrms maximum;
Mic Input Impedance: 3.9k Ohms balanced;
Line Input Impedance: 19k Ohms balanced, 9.5k Ohms unbalanced;
Phantom Power: 48 Volts DC, software enabled/disabled per channel
HDMI 1 – 6 INPUTS (6) HDMI Type A connectors, female;
Digital video/audio inputs;
(DVI and Dual-Mode DisplayPort compatible [4])
DM INPUT 7 – 8 (2) 8-pin RJ45 connectors, female, shielded;
DM 8G+ inputs, HDBaseT compliant;
PoDM+ PSE ports (HDBaseT PoE+ compatible) [8];
Each connects to the DM 8G+ output of a DM transmitter or other DM device, or to an HDBaseT device, via CAT5e, Crestron DM-CBL-8G, or Crestron DM-CBL-ULTRA cable [7]
Connectors – Audio/Video Outputs
SPEAKER OUTPUT
4Ω/8Ω L – R (2) 2-pin 7.62 mm 15A detachable terminal blocks;
4-8 Ohm stereo speaker-level audio output;
Wire Size: Terminals accept up to 14 AWG (2.5 mm²);
Output Power: 25W RMS per channel stereo at 8 Ohms, 4 Ohms tolerant
SPEAKER OUTPUT
70/100V (1) 2-pin 7.62 mm 15A detachable terminal block;
Transformer-isolated 70 or 100 Volt mono speaker-level audio output;
Wire Size: Terminals accept up to 14 AWG (2.5 mm²);
Output Power: 50W RMS mono at 70 or 100 Volts;
Note: 4Ω/8Ω and 70/100V outputs are mutually exclusive
PROG OUT (1) 5-pin 3.5 mm detachable terminal block;
Balanced/unbalanced stereo line-level audio output;
Output Impedance: 200 Ohms balanced, 100 Ohms unbalanced;
Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced
AUX OUT 1 – 2 (2) 5-pin 3.5 mm detachable terminal blocks;
Balanced/unbalanced stereo line-level audio outputs;
Output Impedance: 200 Ohms balanced, 100 Ohms unbalanced;
Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced
HDMI 1 – 2 OUTPUTS (2) HDMI Type A connectors, female;
Digital video/audio outputs;
(DVI compatible [4])
DM OUTPUT 3 – 4 (2) 8-pin RJ45 connectors, female, shielded;
DM 8G+ outputs, HDBaseT compliant;
PoDM+ PSE ports (HDBaseT PoE+ compatible) [8];
Each connects to the DM 8G+ input of a DM receiver or other DM device, or to an HDBaseT device, via CAT5e, Crestron DM-CBL-8G, or Crestron DM-CBL-ULTRA cable [7]
Connectors – Networking, Control, & Power
IR/SERIAL OUT 1 – 4 (4) 2-pin 3.5 mm detachable terminal blocks;
IR/Serial output ports;
IR output up to 1.2 MHz;
1-way serial TTL/RS-232 (0-5 Volts) up to 115.2k baud
IR IN (1) 3-pin 3.5 mm detachable terminal block;
For connection of the CNXRMIRD IR Receiver [6];
Allows control from IR wireless remotes using RC-5 command set
INPUT 1 – 4 (1) 5-pin 3.5 mm detachable terminal block;
Comprises (4) programmable digital inputs;
Input Voltage Range: 0 to 24 Volts DC, referenced to GND;
Logic Threshold: 2.5 Volts DC nominal with 1 Volt hysteresis band;
Input Impedance: 10k Ohms at >5 Volts, 1M Ohms at Pull-up Resistor: 2.2k Ohms per input
RELAY 1 – 4 (1) 8-pin 3.5 mm detachable terminal block;
Comprises (4) normally open, isolated relays;
Rated 1 Amp, 30 Volts AC/DC;
MOV arc suppression across contacts
COM A – B (2) DB9 connectors, male;
Bidirectional RS-232 ports;
Up to 115.2k baud, hardware and software handshaking support
NET (4) 4-pin 3.5 mm detachable terminal blocks;
Cresnet Master ports, paralleled;
Available Cresnet Power: 10 Watts
PoDM+ INPUT PWR (1) Combo D-Sub 7w2 connector, male;
48 Volt DC power input for PoDM power supply [8];
Enables PoDM+ power sourcing on each DM INPUT/OUTPUT port;
Enables PoE power sourcing on the CONTROL SUBNET port
SERVICE (1) USB Type B connector, female;
For factory use only
100-240V~ 6.0A 50/60Hz (1) IEC 60320 C14 main power inlet;
Mates with removable power cord, included
G (1) 6-32 screw;
Chassis ground lug
CONTENT LAN IN 9 (1) 8-pin RJ45 connector, female;
10Base-T/100Base-TX Ethernet port;
Provides a dedicated LAN connection for streaming input & AirMedia [1]
CONTROL SUBNET (1) 8-pin RJ45 connector, female;
10Base-T/100Base-TX/1000Base-T Ethernet port;
PoE PSE (Power Sourcing Equipment) port [8];
Provides a dedicated local network for Crestron devices
LAN (1) 8-pin RJ45 connector, female;
10Base-T/100Base-TX/1000Base-T Ethernet port
COMPUTER (front) (1) USB Type B connector, female;
USB computer console port (for setup only)

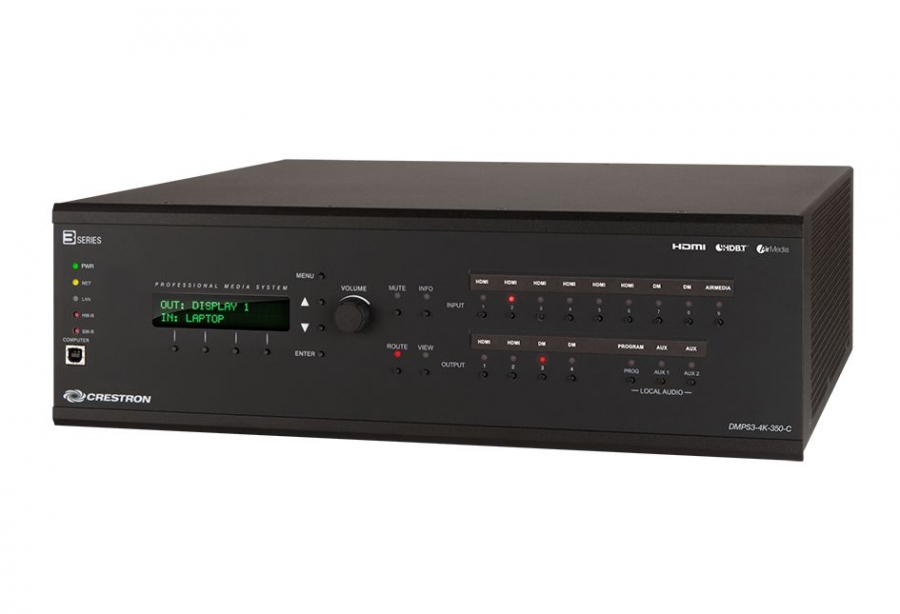

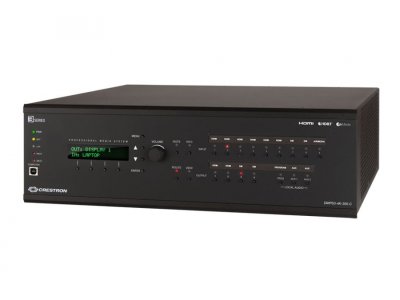

Controls & Indicators
PWR (1) Green LED, indicates operating power supplied from AC power line
NET (1) Yellow LED, indicates Cresnet bus activity
LAN (1) Yellow LED, indicates Ethernet activity
HW-R (1) Recessed pushbutton for hardware reset, reboots the control system
SW-R (1) Recessed pushbutton for software reset, restarts the software program
LCD Display (1) Green LCD alphanumeric; adjustable backlight; 2 lines x 20 characters per line; displays input/outputs by name, volume levels, setup menus, signal routing, device info, and other system information
SOFTKEYS (4) Pushbuttons for activation of LCD driven functions and passcode entry
MENU (1) Pushbutton, steps menu back one level
Λ, V (2) Pushbuttons, for scrolling up or down through the menu and adjusting menu parameters
ENTER (1) Pushbutton, executes the highlighted menu or value
VOLUME (1) Continuous turn rotary encoder, adjusts menu parameters, defaults to Program audio volume
MUTE (1) Pushbutton and red LED, mutes the Program audio output
INFO (1) Pushbutton and red LED, selects INFO mode to view AV and device info
ROUTE (1) Pushbutton and red LED, selects ROUTE mode to allow routing changes
VIEW (1) Pushbutton and red LED, selects VIEW mode to view current routing
INPUT 1 – 9 (9) Pushbuttons and red LEDs, each selects the corresponding video input for routing
OUTPUT 1 – 4, PROG, AUX 1 – 2 (7) Pushbuttons and red LEDs, each selects the corresponding video or audio output for routing
SPEAKER OUTPUT (rear) (1) 3-position slide switch, selects the amplifier output configuration
DM INPUT 7 – 8 (rear) (4) LEDs, green LEDs indicate DM link status, amber LEDs indicate video and HDCP signal presence, for each corresponding port
DM OUTPUT 3 – 4 (rear) (4) LEDs, green LEDs indicate DM link status, amber LEDs indicate video and HDCP signal presence, for each corresponding port
CONTENT LAN IN 9 (rear) (2) LEDs, (1) green and (1) amber, for indication of Ethernet speed, activity, and link status
CONTROL SUBNET (rear) (2) LEDs, (1) green and (1) amber, for indication of Ethernet speed, activity, and link status
LAN (rear) (2) LEDs, (1) green and (1) amber, for indication of Ethernet speed, activity, and link status
Power
Main Power 6 Amps @ 100-240 Volts AC, 50/60 Hz
Power Consumption 93 Watts typical;
72 Watts idle
Available Cresnet Power 10 Watts
Power over DM (PoDM) IEEE 802.3at compliant PoDM+ PSE (Power Sourcing Equipment), each DM INPUT/OUTPUT port supplies up to 30 Watts to power one PoDM (Class 0-3) or PoDM+ (Class 4) PD (Powered Device) [8]
Power over HDBaseT IEEE 802.3at PoE+ compliant PSE (Power Sourcing Equipment), each DM INPUT/OUTPUT port supplies up to 30 Watts to power one HDBaseT PoE or PoE+ PD (Powered Device) [8]
Power over Ethernet (PoE) IEEE 802.3at compliant PoE PSE (Power Sourcing Equipment), the CONTROL SUBNET port supplies up to 15.4 Watts to power one PoE (Class 0-3) PD (Powered Device) [8]
PoDM Power Supply Compatible with model PW-4830DUS or DM-PSU-3X8-RPS [6]
Environmental
Temperature 41° to 104° F (5° to 40° C)
Humidity 10% to 90% RH (non-condensing)
Heat Dissipation 317 BTU/hr typical;
246 BTU/hr idle
Ambient Noise 28.4 dBA typical/idle;
47 dBA maximum
Enclosure
Chassis Metal, black finish, fan-cooled, vented sides
Front Panel Metal, black finish with polycarbonate label overlay
Mounting Freestanding or 3 RU 19-inch rack-mountable (adhesive feet and rack ears included)
Dimensions
Height 5.20 in (133 mm) without feet
Width 17.28 in (439 mm);
19.00 in (483 mm) with rack ears
Depth 15.75 in (400 mm)
Weight
15.5 lb (7.1 kg)
