Projection
Light valve:
Single-chip 0.65" WXGA-800 S450 DMD, DarkChip3TM technology
Brightness:
3,100 ANSI Lumens (Max.)
Contrast Ratio:
Native: 2,200:1 Typical High contrast ratio: 8,000:1 Typical
Native Resolution:
WXGA (1280 x 800)
Aspect Ratio:
16:10
Uniformity:
85% typical (Japan Standard - JBMA)
Projector Lens:
Effective focal length = 654mm ± 10mm @ 87.2 screen size
Lens Offset Ratio: 125% ± 5%
Throw Ratio: 0.35 (wide and tele)
Projection Distance:
0.517m ~ 0.759m ± 0.01m (1.7 ft ~ 2.49 ft)
Diagonal Screen Size: 70" ~ 100" (1.77m ~ 2.54m)
Displayable Colors: Up to 1.07 billion

I/O Connectors
Power:
Universal AC 100-240 50-60 Hz with PFC input
VGA input:
2x 15-pin D-sub connectors (blue), VGA-A and B, for analog RGB/Component input signals
VGA output:
1x 15-pin D-sub connector (black) for VGA-A loop through
S-Video input:
1x standard 4-pin mini-DIN S-Video connector for Y/C signal
Composite video input:
1x yellow RCA jack for CVBS signal
HDMI input:
1x HDMI connector for supporting HDMI 1.4a (HDCP compliant)
USB input:
1x mini USB-B slave for
laser curtain touch HID
firmware upgrade
remote support
1x USB-A connector for supporting
PC-Free Presentation of up to 32 GB using USB flash drive (Office / Multimedia Viewer)
1x USB-B connector for supporting
USB Display
Memory storage access of the S520's built-in 2 GB internal flash memory
Integrated wireless functionality:
Wireless Standard: IEEE802.11 a/b/g/n (2T2R)
OS Environment: Microsoft® Windows 8/7/Vista /XP /2000, MAC OS X
Integrated wireless display:
Intel® WiDi 3.5 with MiracastTM
Audio output:
2x 3.5mm stereo mini phone jack (blue) and 2x pairs of RCA connector (red/white)
1x 3.5mm stereo mono phone jack (green)
Microphone:
1x 3.5mm stereo mini phone jack (pink)
RJ45 port:
1x RJ45 connector for LAN Display and control of projector through network
RS232 port:
1x 9-pin D-sub for RS232 communication
12V DC:
1x 12V DC/200 mA max. output for driving laser curtain
Component video / S-Video input:
NTSC: M (3.58 MHz), 4.43 MHz
PAL: B, D, G, H, I, M, N, 60
SECAM: B, D, G, K, K1, L
Component video input via VGA:
480i/p, 576i/p, 720p, 1080i
Video Compatibility on HDMI input:
480i/p, 576i/p, 720p, 1080p
Built-in flash memory:
2 GB for file storage and PC-Free Presentation (Office Viewer / Multimedia Viewer)
Light source:
280W side-loading user-replaceable lamp
Light source lifecycle:
Up to 3,000 hours in Normal Mode
Up to 4,000 hours in Eco-Mode
Up to 4,500 hours in Dynamic Eco-Cycle Mode
Audio output:
2x 10W
Keystone correction:
Manual vertical ±20°
Special Specifications (if applicable)
Closed captioning, Customizable startup display
All-in-one 10-point multi-touch interactive solution
87" diagonal touch interface on the included dry-erase whiteboard

Noise Level
Normal mode: 36 dB(A)
Eco-Mode: 32 dB(A)
Security
Password Protection (when enabled)
Kensington lock slot (security cable sold separately)

Size & Weight
Dimensions Projector:
14.1" x 9.1" x 14.4" (357mm x 231mm x 367mm)
Dimensions Wall-mount:
19.5" x 9.7" x 28.14" (495.3mm x 246.4mm x 714.7mm)
Dimensions Whiteboard:
80.5" x 55.5" x 2.3" (2045mm x 1410mm x 58.4mm)
Dimensions Laser curtain: (included with projector, to be slotted into the recess located on top edge of whiteboard)
13.0" x 1.99" x 1.61" (330.76mm x 50.57mm x 41.0mm)
Weight Projector:
18.74 lbs (8.5 Kg)
Weight Wall-mount:
13.1 lbs (5.94 Kg)
Weight Whiteboard:
62.0 lbs (28.1 Kg)
Weight Laser curtain:
0.68 lb (309 g)

Environmental and Regulatory
Electrical
Power Supply:
Universal AC 100-240 50-60 Hz with PFC input
Power Consumption:
Normal Mode: 345W ± 10% @ 110 Vac (network on)
Eco-Mode: 285W ± 10% @ 110 Vac (network on)
Standby Mode: ≤0.5W

Environmental
EU RoHS compliant:
Yes
Operating Temperature:
5°C ~ 40°C (41°F ~ 104°F)
Humidity:
80% Maximum
Storage Temperature:
0°C ~ 60°C (32°F ~ 140°F)
Humidity:
90% Maximum
Shipping Temperature:
-20°C ~ 60°C (-4°F ~ 140°F)
Humidity:
90% Maximum
What's in the box

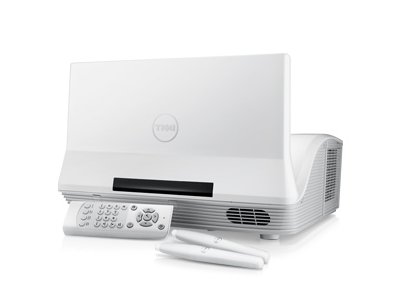

Dell Interactive Projector - S520
87" diagonal whiteboard c/w pen holder
Wall-mount kit
Laser curtain kit and screw
VGA-VGA cable (for VGA Display - primary video connection)
12V DC to DC cable
Remote control c/w 2x AAA batteries
2 Passive pens and
3 Alignment bars
USB A to Mini USB-B cable
InterWrite WorkSpace CD
CD User's Guide and Documentation

Compliance And Standards
Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment
Warranty
Standard Service Support:
Projector unit: 2-year Advanced Exchange Service and Limited Hardware Warranty
Whiteboard: 2-year Advanced Exchange Service and Limited Hardware Warranty
Wall-mount kit: 2-year Advanced Exchange Service and Limited Hardware Warranty
Projector lamp: 1-year lamp warranty
