Colour System: 3-chip DLP®
Display Type: 3 x 0.67" DarkChip™ DMD™
DMD Specification: 1920 x 1200 pixels native. Fast transit pixels for smooth greyscale and improved contrast.
Aspect Ratio: 16:10
Fill Factor 87%
Video & Graphics processing Up to 120 fps 1920 x 1200 pixels sequential input via single DisplayPort or HDMI input.
Up to 4K-UHD 60Hz compatibility displayed within WUXGA.
Smear reduction.
Colour adjustments Up to 10 bits per colour (RGB) processing (depending on source and input type).
Degamma table maps input to 16 bit palette (R, G & B) for display.
Degamma selection from a list.
Individual R, G & B lift and gain.
Black and White level adjustment via Brightness & Contrast control.
ColorMax™ Accurate matching of projectors in tiled or blended applications.
User selection and storage of primary and secondary user defined color targets up to 7 points.
Control On-board keypad.
Remote control - IR.
Network control via RJ45.
Single point of system control via Satellite Control Module
Tablet and smart phone control via served web page.
PC control application.
Mounting Head mounting
Fixing points on Top/Bottom and sides.
Additional front fixing for third party attachments i.e optical blenders.
MLS Mounting
19" 3U rack mounting
SCM Mounting
19" 3U rack mounting
Lens Features Robust lens mount with memorised position, zoom and focus on selected lenses.
Extensive lens shift encompassing all lens capabilities.
High quality sharp lenses with wide focal ranges.
Source Compatibility Graphics standards up to 3840 x 2160 at 60 fps via DisplayPort or HDMI and 1920 x 1200 at 120fps
displayed in WUXGA
Inputs/Outputs Video & Computer Communication & Control
DisplayPort 1.2 DisplayPort 1 5V/2A USB Type A 1
HDMI 2.0b HDMI 1 Ethernet RJ45 1
HDBaseT RJ45 1 Ethernet/Art-Net Ethercon 1
Service Mini USB 1

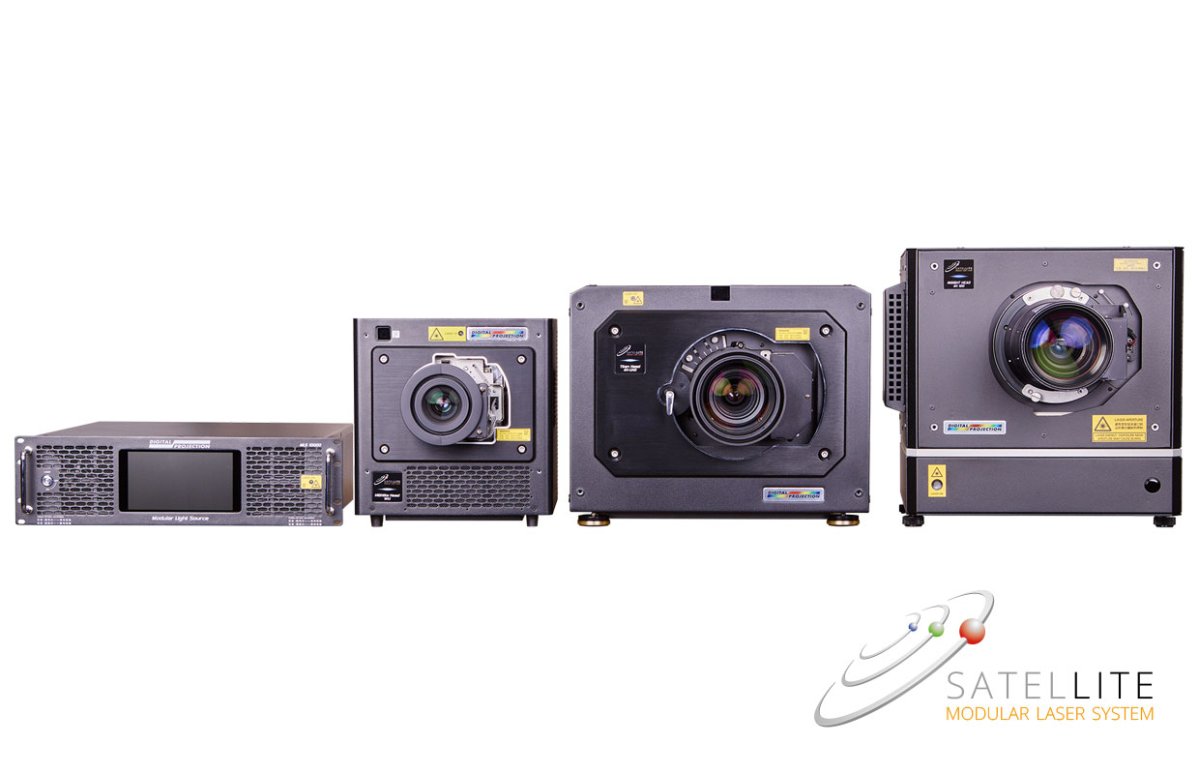

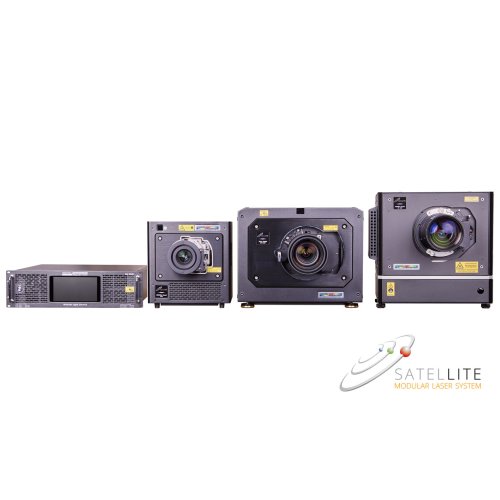

Satellite HIGHlite MLS WUXGA
10,000 to 20,000 ISO Lumens | Contrast Ratio: 2,000:1
Key Features:

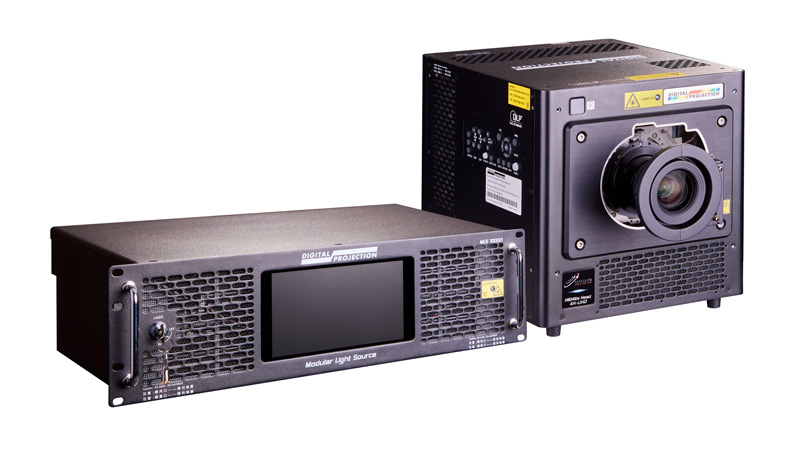

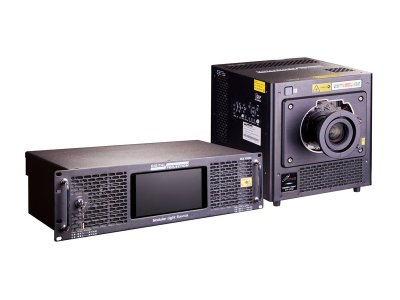

Satellite HIGHlite Head Modular Light Source
Native WUXGA Resolution (1920 x 1200) RGB Modular Light source
Separate Head - compact, lightweight & low noise Near BT2020 colour space
Sealed Optics Rack mountable • Fully Interlocked
Near Maintenance free Interconnection - Satellite Link Cable available in various lengths
Combine up to 2 Modular Light Sources, or share one source to
multiple Heads
Key Specifications:
Document ref: 121-907B
Formats Supported 3840 x 2160p (24, 25, 30, 50, 60 Hz)
1080p/WUXGA (24, 25, 29.97, 30, 50, 59.94, 60 Hz) (Up to 120 Hz)
Computer Compatibility Up to 3840 x 2160
Projector Head Control IR remote control & On-Board keypad with OSD
Automation Control LAN.
Colour Temperature User selectable from 3300 to 10000K
illumination Type RGB Laser Light Source
Typical illumination Life > 20,000 Hours
Lenses Lens Part No. Lens Shift (Frame)
0.83 - 1.21 : 1 zoom 122-817 Ver: 0.5 (U) 0.5 (D) frame, Hor: 0.15 (L) 0.15 (R)
1.21 - 1.70 : 1 zoom 122-818 Ver: 0.47 (U) 0.47 (D) frame, Hor: 0.15 (L) 0.15 (R)
1.50 - 2.15 : 1 zoom 122-819 Ver: 0.47 (U) 0.47 (D) frame, Hor: 0.15 (L) 0.15 (R)
2.00 - 3.90 : 1 zoom 122-820 Ver: 0.47 (U) 0.47 (D) frame, Hor: 0.15 (L) 0.15 (R)
* Lens focal ranges above are the optimised distances but are likely to focus further, please contact
your RSM for more details. Lens ratio tolerances: HighLite Series: +/- 5%.
Lens Mount Motorised shift, zoom and focus. Intelligent Lens Memory with user-definable preset positions on
selected lenses.
Mechanical Mounting Front/Rear Table. Front/Rear Ceiling. Adjustable Front/Rear Feet.
Orientation Table Top or Inverted: Pointing Up. Pointing Down. Roll (Portrait)
Power Requirements Head, MLS & SCM 100 - 240VAC 50/60Hz single phase
Power Consumption Head 156W Single MLS 1000W SCM 25W
Thermal Dissipation Head 1000 BTU/Hr at 10,000 Lumens, 1500 BTU/Hr at 20,000 Lumens
Single MLS 2500 BTU/hr, SCM 85 BTU/Hr
Noise Head 39 dBA MLS 45 dBA SCM 32 dBA
Operating/Storage Temperature Operating: 0 to 40C (32 to 104F) Storage: -20 to 60C (-4 to 140F) (Over 35C Eco Mode)
Operating Humidity 20 to 80% non-condensing
Weight Head: 19 kg MLS: 17 kg SCM: 6.5 kg / Head: 42 lb MLS: 37 lb SCM: 14 lb
Dimensions Head H: 31.5 cm W: 29.9 cm L: 33.7 cm / H: 12.4 in W: 11.77 in L: 13.3 in
Modular Light Source (MLS) 19" 3U rack unit 50cm / 19.6 in deep
Satellite Control Module (SCM) 19" 3U rack unit 27cm / 10.6 in deep
Systems Satellite HIGHlite 10,000 WUXGA 120Hz with 10m Satellite Link Cable - 121-384
Satellite HIGHlite 20,000 WUXGA 120Hz with 10m Satellite Link Cable - 121-385
Certification UL, UKCA, CE, FCC Class A
