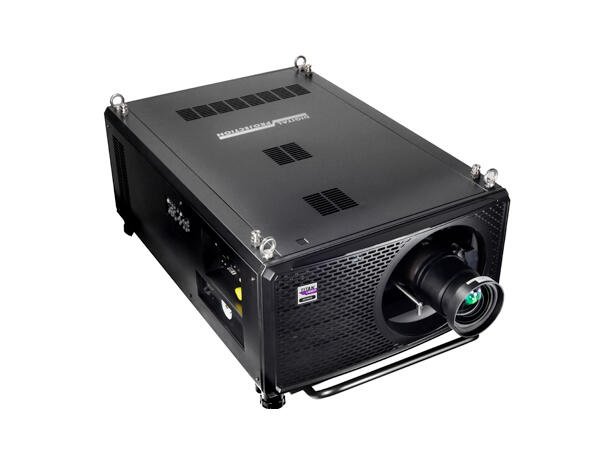

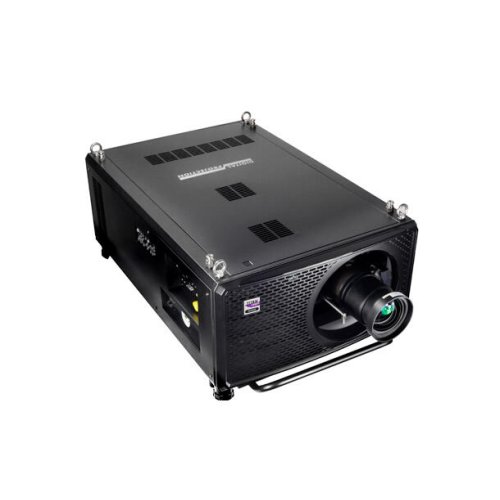

Included Lens
No
Optional Lenses

105-607 Fixed Lens
Throw Ratio 0.67:1
105-608 Fixed Lens
Throw Ratio 1.12:1
105-610 Zoom Lens
Throw Ratio 1.39:1-1.87:1
105-611 Zoom Lens
Throw Ratio 1.87:1-2.56:1
105-612 Zoom Lens
Throw Ratio 2.56:1-4.16:1
105-613 Zoom Lens
Throw Ratio 4.16:1-6.96:1
109-235 Zoom Lens
Throw Ratio 6.92:1-10.36:1
109-236 Zoom Lens
Throw Ratio 1.16:1-1.49:1
120-510 Fixed Lens
Throw Ratio 0.37:1
120-511 Short Zoom Lens
Throw Ratio 0.65:1-0.85:1
120-827 Zoom Lens
Throw Ratio 0.80:1-1.16:1

Colour System: DMD Specification:
Laser Phosphor
Display Type:
3 x 0.96" WUXGA DMD™
Display capability upto WUXGA 2.3 megapixels pixels on screen at WUXGA Fast transit pixels
for smooth greyscale and improved contrast. Display resolutions WUXGA (1920 x 1200)
Aspect Ratio:
16x10
Fill Factor
87%

Key Features
Video & Graphics Processing
DisplayPort 1.2
2 x HDMI 2.0b HDCP 2.2
HDR processing
2 x HDMI 1.4b HDCP 1.4 for Dual Pipe processing and Frame Sequential 3D Format.
Sequential Processing: 3D via single HDMI 1.4b input
Dual Pipe Processing: 3D Left and Right eyes via two HDMI1.4b inputs.
Syncronisation of active glasses.
3G-SDI with loop-through.
DICOM simulation mode.
DMX Art-Net
General Features
Constant Brightness control
Multi-Projector Brightness control
Compatible with selected competitor lenses via lens converter
Selectable EDID
Custom Start-up Logo
Geometry Correction
4-Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, Arc and Image Rotation
Non-linear warp
Digital Zoom, Pan and Scan
Blanking control for custom input window sizing.
Scaling available for fixed aspect ratio screens.
Unscaled processing for pixel mapped display
Edge Blending
Blending control available for all sides with width control.
Correction for non-active pixels at the edge of the display.
Electronic Black Level Compensation.
Picture in Picture
Two sources can be displayed symultaneously using 2D inputs. either picture in picture (PIP) , or side by side
(PBP), with the original aspect ratios maintained.
HDBaseT® Interface
Built in support for reception of uncompressed High Definition Video over standard CAT5e/6 LAN cable
Allows projector to be placed up to 100m from source with low cost cabling
Supports up to 4K UHD 3840 x 2160@60Hz 4:2:0 or 4K UHD 3840 x 2160@30Hz 4:2:2
Colour Processing
Four colour modes available
Powerful seven point colour correction for accurate colour matching with presets.
Easy colour temperature selection
Manual seven point colour adjustment
Traditional lifts and gains
Projector Controller Software
Intuitive user interface for network control
Simultaneous control of user-defined groups of projectors
At-a-glance monitoring of projector status
Projector Automation
Real-time clock provides daily on/off automation
E-mail alerts for system status
Source Compatibility:
2D Graphics standards up to 4K-UHD 3840x2160 resolution at 60Hz via HDMI 2.0, HDBaseT (4:2:0), DisplayPort
inputs
3D Graphics standards up to dual-pipe WUXGA 120Hz via HDMI 1.4b inputs
3G-SDI is SMPTE 292M, SMPTE 259M-C and SMPTE 424M compliant.

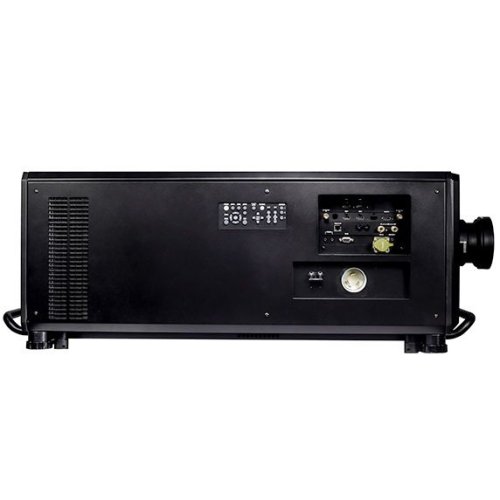

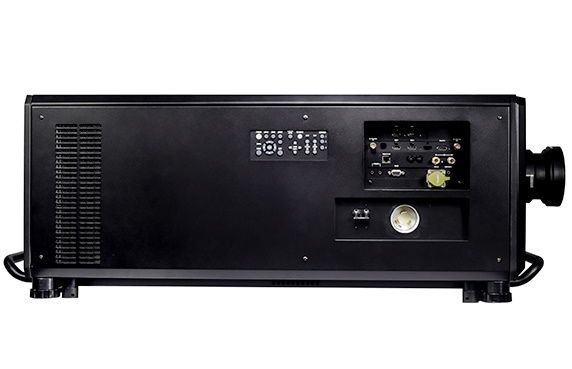

Inputs/Outputs
Video & Computer
Type Connector Qty
DisplayPort 1.2 (2D)
HDMI 1.4b (3D)
HDMI 2.0b (2D)
3G-SDI in (2D)
3G-SDI out
HDBaseT/LAN (2D)
DisplayPort
HDMI
HDMI
BNC
BNC
RJ45
1
2
2
1
1
1
Communication & Control
Type Connector Qty
3D Sync In
3D Sync Out
LAN
RS-232
Wired Remote
12V Trigger
3D Sync IR Out
BNC
BNC
RJ45
9-pin D-Sub
3.5mm Stereo Jack
3.5mm Stereo Jack
BNC
1
1
2
1
1
2
1
3D Formats Supported HDTV Formats Supported
Sequential / 1080p @100Hz
Sequential / 1080p @120Hz
Sequential / WUXGA @100Hz (RB)
Dual -Pipe / 1080p @ 50Hz
Dual -Pipe / 1080p @ 60Hz
Dual -Pipe / WUXGA @ 50Hz (RB)
Dual -Pipe / WUXGA @ 60Hz
1080p (24Hz, 25Hz, 30Hz, 50Hz, 60Hz)
1080i (50Hz, 60Hz)
720p (50Hz, 60Hz)
2K (24Hz, 25Hz, 30Hz, 50Hz, 60Hz)
4K-UHD (24Hz, 25Hz, 30Hz, 50Hz, 60Hz)
Computer Compatibility Bandwidth
2D 4K-UHD upto 60Hz
3D Supported Formats will be displayed upto WUXGA
498 Mpixels/sec via DisplayPort and HDMI2.0.
Remote Control Automation Control
Addressable IR remote Control, Wireless and wired. OnBoard keypad
Crestron RoomView Connected
LAN
RS-232
AMX (Device Discovery)
DMX Art-Net
Served web pages (Projector status, Projector control,
Crestron RoomView, Network settings, Alert mail setup,
Time setup, Error log, On screen Display )
Colour Temperature
3200K to 9300K
Lamp Type Typical Lamp Life
Laser Light Source 20,000 hours

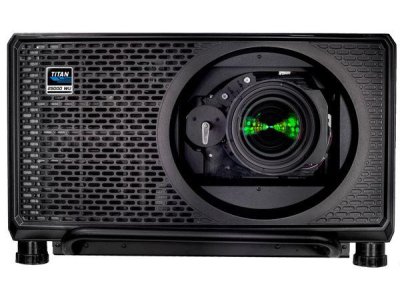

Lenses
Lens Part No. Focus Range Lens Shift
0.67:1 fixed HB
1.12:1 fixed HB
1.16 - 1.49:1 zoom HB
1.39 - 1.87:1 zoom HB
1.87 - 2.56:1 zoom HB
2.56 - 4.16:1 zoom HB
4.16 - 6.96:1 zoom HB
6.92 - 10.36:1 zoom HB
105-607
105-608
109-236
105-610
105-611
105-612
105-613
109-235
1.1m - 10m
3m - 15m
3m - 15m
4m - 24m
4m - 24m
9.1m - 45m
12m - 80m
12m - 80m
Vert: 0.108 (U) 0.108 (D) frame, Hor: 0.044 (L) 0.044 (R) frame
Vert: 0.567 (U) 0.45 (D) frame, Hor: 0.188 (L) 0.188 (R) frame
Vert: 0.408 (U) 0.408 (D) frame, Hor: 0.188 (L) 0.188 (R) frame
Vert: 0.567 (U) 0.45 (D) frame, Hor: 0.188 (L) 0.188 (R) frame
Vert: 0.567 (U) 0.45 (D) frame, Hor: 0.188 (L) 0.188 (R) frame
Vert: 0.567 (U) 0.45 (D) frame, Hor: 0.188 (L) 0.188 (R) frame
Vert: 0.567 (U) 0.45 (D) frame, Hor: 0.188 (L) 0.188 (R) frame
Vert: 0.567 (U) 0.45 (D) frame, Hor: 0.188 (L) 0.188 (R) frame
Lens Mount
Motorised Shift, Zoom and Focus.(Lenses 0.67:1 & 1.12:1 have manual focus, shift is motorised)
Intelligent Lens Memory with 10 user-definable pre-set positions for zoom lenses.
Mechanical Mounting Orientation
Front/Rear Table
Front/Rear Ceiling
Adjustable Front/Rear Feet
Table Top or Inverted: Yes
Pointing Up: Yes
Pointing Down: Yes
Roll (Portrait): Yes
Power Requirements Power Consumption
200VAC & 230 VAC, 50/60Hz single phase Typical 2800W, Max 3100WW
Thermal Dissipation Fan Noise
Max 10284 BTU/Hour @ 200VAC BTU/Hour Typical: 50dBa , Maximum 52dBa, Eco Typical 47dBa
Operating/Storage Temperature Operating Humidity
Operating: Full Power 0°C ~ 35°C (32°F ~95°F), ECO
upto 40°C (104°F)
Storage: -20°C ~ 60°C (-4°F ~ 140°F)
Operating: 10% ~ 90% non-condensing
Storage: 10% ~ 90% non-condensing
Weight (Chassis Only) Dimensions
95 kg
209 lb
L: 969.3mm, W: 650mm, H: 397.3mm (Excl handles)
L: 38.2in, W: 25.6in, H: 15.6in (Excl handles)
Safety & EMC Regulations
UL, CB, CCC, KC, RoHS (CN), FCC Class A, FDA, CE,
IEC EN 60825-1 Class 3R Laser Product, IEC EN 62471-
5 Risk Group 3, WEEE (UK)
Image not found
http://www.digitalprojection.co.uk/digital-products/.jpg
*Dimensions included for reference only and are subject to change. Please download the full set of CAD files for this
display for more accurate information.
