Projektor Eiki EK-612X
Podstawowe parametry: XGA, DLP, 7000 ANSI LM, 4400:1, 1500/2000h (eco), DVI-D, D-Sub 15pin, HDMI, HDBaseT,Component Video 3xRCA, Composite Video, remote in
Mini Jack, Monitor out, RS232, LAN RJ45, USB Typ A for W iFi Dongle, Mini USB Typ B (service), LENS SHIFT pionowy +/-50%, poziomy +/-15%,
Keystone pionowy +/-20 stopni, poziomy +/-20 stopni, 14 kg,
Brightness 7,000 ANSI Lumens
Contrast Ratio 4400:1
Resolution and Aspect Ratio XGA (1024x768), 4:3
Color Reproduction 24-bit (16.7 million colors)
Projection Lamp 465 Watts UHP
Estimated Lamp Life (Eco / Normal) 2,000 / 1,500 hours
Total Pixels 7,864,32 (1024x768) x 1
Imaging System 0.7" DMD™ DLP® chip x 1
Scanning Frequency Auto: H Sync. 15-91 kHz, V Sync. 24-85 Hz
Pixel Clock 1up-to 150 MHz
Lens Optional Lenses Available
Lens Specs Optional Lenses Available
Lens Ratios Optional Lenses Available
Image Diagonal 50-300 in (127-762 cm)
Image Width 3.3-20 ft (1.0-6.1 m)
Throw Distance 4.19-31.5 ft (1.28-9.63 m)
Projector Elevation Adjustment (legs) up-to 10°
Maximum Pitch Up-to 360° Installation
Vertical Keystone Correction Digital: up-to 30° Up or Down
Horizontal Keystone Correction Digital: up-to 30° Left or Right
Image Orientation Normal, Reversed, Inverted
Local Control / Power Management Full Function / Auto Shutdown
Remote Control MiniStereo x 1
RS-232 Control Dsub9 x 1
LAN Port RJ45 x 1
Computer Input in Pixels up-to 1600x1200 (4:3), 1920x1200 (16:10)
Analog 4x3 Inputs UXGA, SXGA+, SXGA, XGA, SVGA, VGA, MAC
Analog Wide Inputs WUXGA, WSXGA+, WXGA+, WXGA
Digital 4x3 Inputs UXGA, SXGA+, SXGA, XGA, SVGA, VGA, MAC
Digital Wide Inputs WUXGA, WSXGA+, WXGA+, WXGA
Video Formats NTSC / PAL / SECAM
Video Input Analog 480i/p, 576i/p
Video Input Digital 480p, 575p, 720p, 1080i/p
Image Signal Resizing Smart Scaling Technology

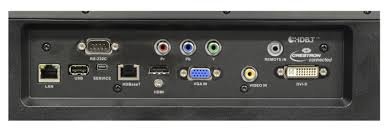

Image Signal Inputs
Computer 1 Dsub15 x 1
Digital Video (w/ HDCP) HDMI x 1
Digital Video (w/ HDCP) DVI-D x 1
HDBaseT RJ45 x 1
Component Video (Y,Pb,Pr and R/G/B) RCA x 3
Composite Video RCA x 1
USB Type A - Wifi Dongle Type A x 1
Mini USB - Service Mini USB x 1
Composite Video RCA x 1
Fan Noise (Eco / Normal) 37 dB / 41 dB
Cabinet Size (HxWxD) - excluding legs 8.1 x 17.8 x 15.3 in (20.5 x 45.2 x 38.8 cm)
Weight (without lens) 30.8 lb (14 kg)
Packaged Size (HxWxD) TBA
Packaged Weight 38.1 lb (17.3 kg)
Operating Temperature 41-95°F (5-35°C)
Electrical Safety Compliance IEC / UL / cUL
Electromagnetic Compatibility FCC Class A, CE Mark
Power Requirements 100-240V AC, 50/60 Hz
Power Consumption 0.5 W in Eco Standby mode, up-to 580 W
Heat up-to 1,978 BTU/hr
Security Facilities Security Bar, Kensington® Security Slot
UPC 4571194678154
Limited Warranty: to the original end use customer only Projector: 3 years / 6000 hours (whichever occurs first)
Lamp: 1 year ownership / 500 hours (whichever occurs first)
