Parametry techniczne
Brightness: 4000 ANSI Lumens
Contrast Ratio: 2000 : 1
Illumination Uniformity (corner to center): 85%
Resolution and Aspect Ratio: 1024 x 768 XGA
Color Reproduction: 8 bit
Projection Lamp: 245 Watt UHP
Estimated Lamp Life: up to 5000 hours of use
Imaging System: 0,63" Inorganic PolySilicon active matrix TFT panels x 3
Total Pixels: 2,359,296 ((1024 x 768) x 3)
Pixel Clock: up to 140 MHz
Lens Type: Manual zoom and focus
Lens specifications: f = 15,5 - 24,5mm
Lens ratios: zoom max:min: 1.6:1, throw:width: 1.18-1.91:1
Image Diagonal: 76 - 762 cm
Image Width: 0,61 - 6,1 m
Throw Distance: 0,7 - 7,2 m
Projector Elevation Adjustment (legs): up to 12° up
Maximum Pitch: up to 30°up or down
Vertical Keystone Correction: Digital: up to 30°up or down
Image Orientation: normal, reversed, inverted
Local Control / Power Management: full function / auto shutdown
RS232 Controls Ports (In & Out): Dsub 9 pin x 1
Remote Projector Control: Wireless (infra red) x 1
LAN Port: RJ-45 x 1
Computer Native Resolution: computer input in pixels: up to 1600 x 1200 (4:3), 1920 x 1200 (16:10)
Computer Compatibility (formats): UXGA, SXGA+, SXGA, XGA, SVGA, VGA, MAC, WUXGA, WSXGA+, WXGA+, WXGA,
Video Compatibility (formats): NTSC, PAL, SECAM, NTSC 4.43, PAL-M, PAL-N

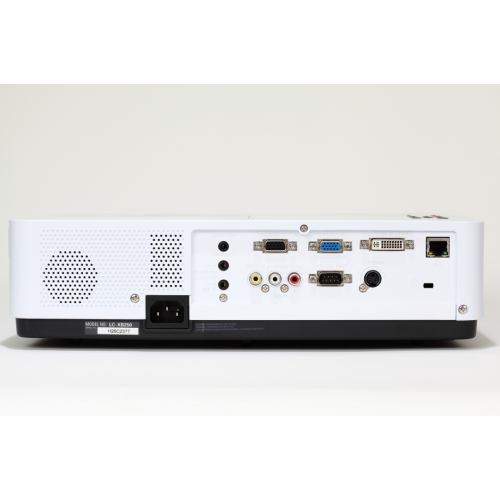

Other Inputs and Outputs: Image signal inputs:
COMPUTER Analog / COMPONENT (with optional adapter) .... Dsub15 x 1
COMPUTER Digital and Analog / Digital Video .... DVI-I x 1
S-Video IN ........ S-Video x 1
Composite video ..... RCA x 1

Audio singal inputs:
COMPUTER AUDIO IN 1and2 / Microphone ... Stereo:MiniStereo x 2
for inputs 3 and 4 .... Stereo: RCA x 2

Outputs:
Computer Monitor ......... Dsub15 x 1
Audio output ........ Variable, Stereo: MiniStereo x 1
Image Signal Resizing: Smart scaling technology
Fan Noise: as low as 29 dBA
Cabinet Size (HxWxD): 87,5 x 350 x 254 mm
Weight: 3,4 kg
Packaged Size (HxWxD): 198 x 434 x 406 mm
Packaged Weight: 5,9 kg
Power Requirements: 100 - 240 V AC, 50/60 Hz
Power Consumption: 0,5 W (Standby Eco) up to 322Watts
Heat: up to 1179 BTU
Electrical Safety Compliance: UL, cUL, IEC
Electromagnetic Compatibility: FCC, Class B, CE Mark
Security Facilities: Kensington Security Slot
Operating Temperature: 5 - 35°C
User Maintenance: clean air filter, replace lamp
Included Accessories: Quick start guice, Owner's manual on CD-ROM, power cord, VGA computer input cable (Dsub15 to Dsub15), wireless remote control and batteries (AAA x 2), network software on CD-ROM, soft carry bag, lens cover, filter cover for ceiling.
