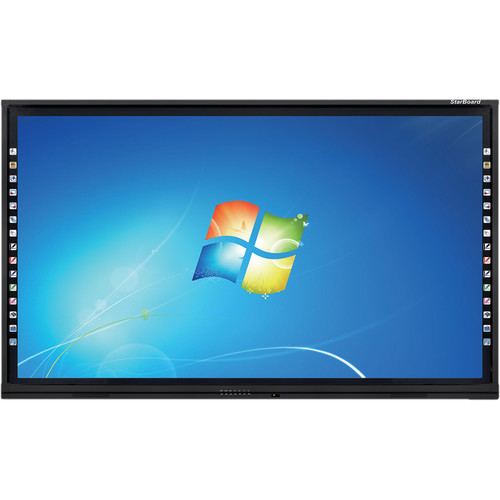

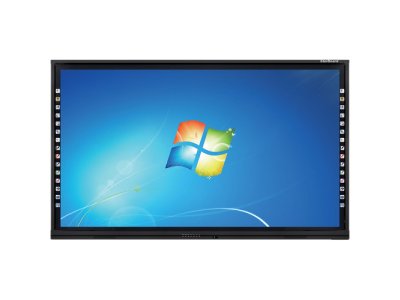

Monitor Interaktywny HITACHI TE-SN-70
Dane techniczne:
Display
Displayarea 1538.88*865.62 mm
BacklightType LED
Brightness 350cd/m2
Display ratio 16:9
ViewingAngle 178°(deg)
Contrast ratio 4000:1
Picture model 16:9/4:3/dot to dot/full screen
Resolution Up to1920*1080
Orientation Landscape
Displayable Colors RGB
Minimum life length panel 50.000 hours
Monitor
Video Mode PAL, SECAM (/NTSC)
Sound Mode DK,BG,I,
Resolution 1280*960/1280*1024/1360*768/1440* 900/1600*1200/1920*1080@60Hz
Responsetime <17ms
Input Terminals
CVBS/Audio Input 1 x 3RCA (yellow, white, red)
YPbPr 1 x MINI 3.5 mm (three-in-one terminal
USB input 2 x USB-A (horizontal)
PC-RGB Input 2 x D-SUB 15 Pin (blue)
PC Audio Input 2 x 3.5 mm Stereo Audio-In jack (green)
HDMI input 3 x HDMI-A (horizontal), one inside
RS232 1 x RS232
Output Terminals
PC-RGB Output 1 x D-SUB 15 Pin (black)
Touch Monitor
Glass Temperedglass/Anti-Glare glass Protective glass with 7 MOHS strength
Technology infrared
Response object finger, pen, stylus pen, other object
Points input 10 Points
Accuracy Φ<3mm
Positioning resolution 4096*4096/16384*16384/32768*32768
Continuous speed <8ms
Cursor speed >180dot/s
PC port : USB
OS(system) WINDOWS all/LINUX/MAC /Android
PCresponse plug and play
Electrical
Voltagerange AC (100~240) V-50/60HZ
Powerconsumption standby <1W
Rated power <420W
Work temperature 0~400C
WorkHumidity 0~90%
Storagetemperature -10~500C
StorageHumidity 0~90%
Optional Parts
Glass OPS Mobile stand TransparentTempered glass, I3/I5,4G,500G
Dimension and Weight
Product dimension 1656*964*72 mm /±2 mm
Package Size 1785*1095*205 mm/±5 mm
Weight Net 75 ±2kg
WeightGross 95±2KG
