Optical
LCD Panel
0.63" (1.6cm) P-Si TFT x 3

Resolution
XGA (1024x768)

White light output (brightness)
3200 ANSI Lumens (Normal Mode)
2100 ANSI Lumens (Eco Mode)

Brightness
3200 ANSI Lumens (Normal Mode)
2100 ANSI Lumens (Eco Mode)

Contrast Ratio
2000:1

Lens
Manual Focus, Manual Zoom x 1.2

Lamp Wattage
215W UHP

Lamp Life
5000 hours (Normal Mode)
6000 hours (Eco Mode)*

Diagonal display size
30~300" (76~762cm)

Number of colours
1074 million colours

Keystone correction
6:1 upward shift, fixed

Focus distance
0.8m~9.0m (Wide), 1.0~10.8m (Tele)

Distance to width ratio
1.5 (Wide), 1.8 (Tele)

Compatibility
Computer compatibility
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA (compressed), MAC 16"

Composite/S-Video
NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43

Component Video
525i(480i), 525p(480p), 625i(576i), 1125i(1080i@50/60), 1125p(1080p@50/60), 750p(720p@50/60)

HDMI Video
Signal: 525i(480i), 525p(480p), 625i(576i), 1125i(1080i@50/60), 750p(720p@50/60), 1125p(1080p@50/60)

Plug & Play
DDC2B

Features
Speakers
1W x 1 (mono)

Basic functions
Freeze, Magnifying, Blank, Auto signal search, Auto eco mode

Picture Adjustments
Aspect selection (video, data, HDMI), Equalizing Digital Gamma Correction, Equalizing Colour temperature adjustment, 2-3 pull down for NTSC, Mirror reverse image, up-side down image, Progressive Scan, Noise Reduction, Overscan

Digital Keystone Correction
Vertical ±30° (XGA@60Hz)

Advanced features (CP-EX300)
MyScreen, My Memory, My Button, My Text, My Source, Picture mode (normal, cinema, dynamic, blackboard, whiteboard greenboard, photo), Input source naming (English), Resolution setting, Filter timer, Template, Closed Caption (for NTSC & component 480i only), Framelock, Eco Mode (normal, eco, intelligent eco, saver), ImageCare™

Outward
Easy lamp replace from top, Easy access air filter

Power on & off
Direct on, Auto off

Security Systems
Security bar, PIN-lock, MyScreen password, Key lock (key pad and remote control), Kensington slot, My Text password

OSD Languages
English, French, German, Spanish, Italian, Norwegian, Dutch, Japanese, Portuguese, Simplified Chinese, Traditional Chinese, Korean, Swedish, Russian, Finnish, Polish, Turkish, Arabic, Persian, Czech, Danish, Hungarian, Romanian, Slovenian, Croatian, Greek, Lithuanian, Estonian, Latvian, Thai, Portuguese (Brazil), Indonesian, Vietnamese

Connections
Digital input
1 x HDMI (HDCP compatible)

Computer Input
1 x 15-pin Mini D-sub (shared with analogue component video input)
1 x 15-pin Mini D-sub (shared with analogue component video input and Monitor Out)

Monitor output
1 x 15-pin Mini D-sub (shared with analogue computer In 2 and analogue component video input)

Video Input
1 x 15-pin Mini D-sub (shared with analogue computer In 1 and analogue computer In 2)
1 x RCA for composite

Audio Input
1 x pair RCA (L/R)

Audio output
1 x pair RCA (L/R)

Control
1 x 9-pin for RS-232C control

Power
Power Supply
100-120V/220-240V, auto switching

Power Consumption/Standby
300W/

Physical
Dimensions (W X H X D)
320 x 85 x 245mm (excluding feet and extrusions)

Weight
2.9Kg

Noise Level
29dB (Normal Mode)/37dB (Bright Mode)

Air Filter
Urethane (Up to 2000 hours)

Miscellaneous
Miscellaneous
Indicator lights (lamp, temp, power), Ceiling mount image, Rear projection image, Serial number label on side, MAC PC support: PJ Control software, MAC address label on front, LiveViewer software

Certification
Certification CP-EX250
UL60950-1/cUL, FCC Part 15 subpart B class B, CE Marking: EN61000-3-2, EN61000-3-3, EN55022, EN55024 (EMC Directive), EN60950-1 (Low voltage directive), WEEE, RoHS, ErP (lot6) compliant, c-tick class B

Accessories Supplied
Accessories Supplied CP-EX250
Remote control with batteries (HL02881), Computer cable, Power cord, User manual (detail & concise)

Optional Accessories
Replacement lamp
DT01433

Warranty
Projector warranty
3 Years/6 Months**

Lamp warranty ( education )
For education and extended warranties please contact your local dealer

disclaimer (3 year/6 months)
*The stated lamp and filter life refers to the average life expected in ideal operating conditions with usage in accordance with the manual. The majority of, but not all lamps and filters should achieve this figure. **A free replacement lamp will be issued if the original lamp is less than 6 months old and it has only been used for less than the hours stated on lamp warranty from the date of first use. Where a lamp fails and a replacement lamp is taken under warranty, the duration of the warranty for the replacement lamp shall be the remainder of the original warranty period only. The specification above and photography is for reference only and may be subject to change.

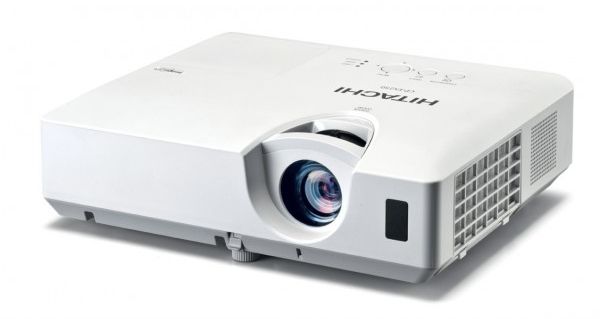

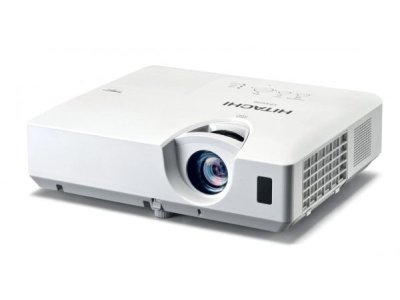

Hitachi CP-EX300 Terminals
