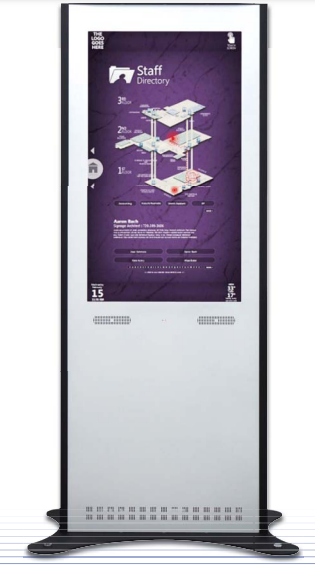

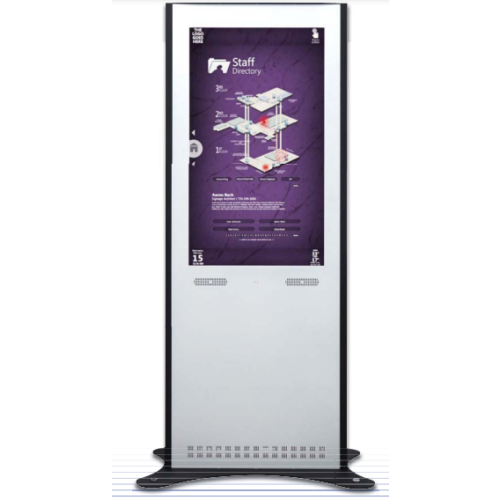

Model D46ESDG(with Glass) | D46ESDI(with Touch screen)
Panel
Screen Size (diagonal) 46" x 2
Active Display Area (inch/mm) 40.08 x 22.54 / 1018.08 x 572.67
Resolution 1920 x 1080
Aspect Ratio 16 : 9
Display Colors 1.07 B
Brightness (cd/m²; typ.) 500
Contrast Ratio 4,000:1
Viewing Angle 178°/178°
Lifetime (hours) 50,000
Backlight type LED
Touch Screen
(Option)
Available Touch Point 1 ~ 6
Response Time (ms) Touch : 9, Drawing : 24
Tempered Glass Transmission: 90%, Thickness: 3.2mm
Available object size
for Touch (mm)
Touch : Ø 10
Stylus : Ø 11
Interface USB 1.0 / USB 2.0 Full speed
Detection Method Infrared Rays
HID (Mouse Click) Windows / Linux / Mac / Android
Resolution
Monitor 1920 x 1080
DTV 1080p
Input HDMI | DVI | VGA(D-Sub) | PC Audio | RS232C
Output Video HDMI(DVI) | RS-232C, Speaker(10Wx2CH)
Power
Input Voltage 100 – 240V AC
Power consumption 220 W
Features
Auto Cooling System yes
Auto Power Control yes
Tempered Glass Option
Operation Temperature (ºC) 0 - 40
Humidity (%) 20 - 80
OSD Language 10 Lang
Dimension Set (W x H x D), inch/mm 30.8 x 79.4 x 5.8(Base:37.6 x 24.8) / 783.2 x 2016.1 x 148 (Base:956 x 630)
Weight Set (lb/kg) 330.7 / 150
