Device

D-ILA Technology Yes

Chip Type 0.69-inch 4K D-ILA device

Native Resolution 4096 x 2160

Number Of Chips 3

8K/e-shiftX Yes

Display Resolution 8192 x 4320

Light Source

Laser Yes

Type BLU-Escent Laser Diode

Life Time (Standard Mode) 20000 hours


Brightness 3000 lm

Dynamic Contrast ∞ : 1

Native Contrast 100000 : 1

Dynamic Light Power control Yes

Modes Mode 1 (gentle), Mode 2 (strong), Off

Manual Aperture Yes

Range -15 (stops down) to 0 (opens up)

DCI-P3 Color Gamut Yes

100% REC 709 Yes

Color Bit Depth 12 bit

ISFccc Certification Yes

HDR

HDR10 Yes

HDR10+ Yes

Frame Adapt HDR Yes

Theatre Optimizer Yes

HLG Yes

Auto Tone Mapping Yes

Mastering Info Display Yes

Info data MaxCLL and MaxFALL mastering data

HDR Picture Modes BT.709 / BT.2020 / DCI / HDR

Lens

Zoom 2 x

Throw Ratio 1.35-2.75:1

Diameter 100 mm

Material All-glass

Build 18-element, 16-group in full aluminium lens barrel.

Lens Shift Yes

Range Horizontal ± 43 %

Range Vertical ± 100 %

Motorized Zoom Yes

Motorized Shift Yes

Motorized Focus Yes

Projection Display size (diagonal) 60 - 300 inch

Memory Function Yes

Number of user presets 10

Lens Cover Yes

HDMI

Number of connections 2

Data Rate 48 Gbps

HDCP Version 2.3

8K60P signal input Yes

4K120p signal input Yes

4K60P signal input Yes

Video Signal range 480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 120/ 100/ 60/ 50/ 30/ 25/ 24, 3840 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 4096 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 7680 x 4320p 60/ 50/ 30/25 /24

PC Signal range VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / WSXGA+ / UXGA / WUXGA / WQHD (60) / WQHD (120)

Input Level Adjustment Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)

Color Space Range Auto/ YCbCr4444 / YCbCr422 / RGB

EDID Modes A and B (older hardware may need to use B settings)

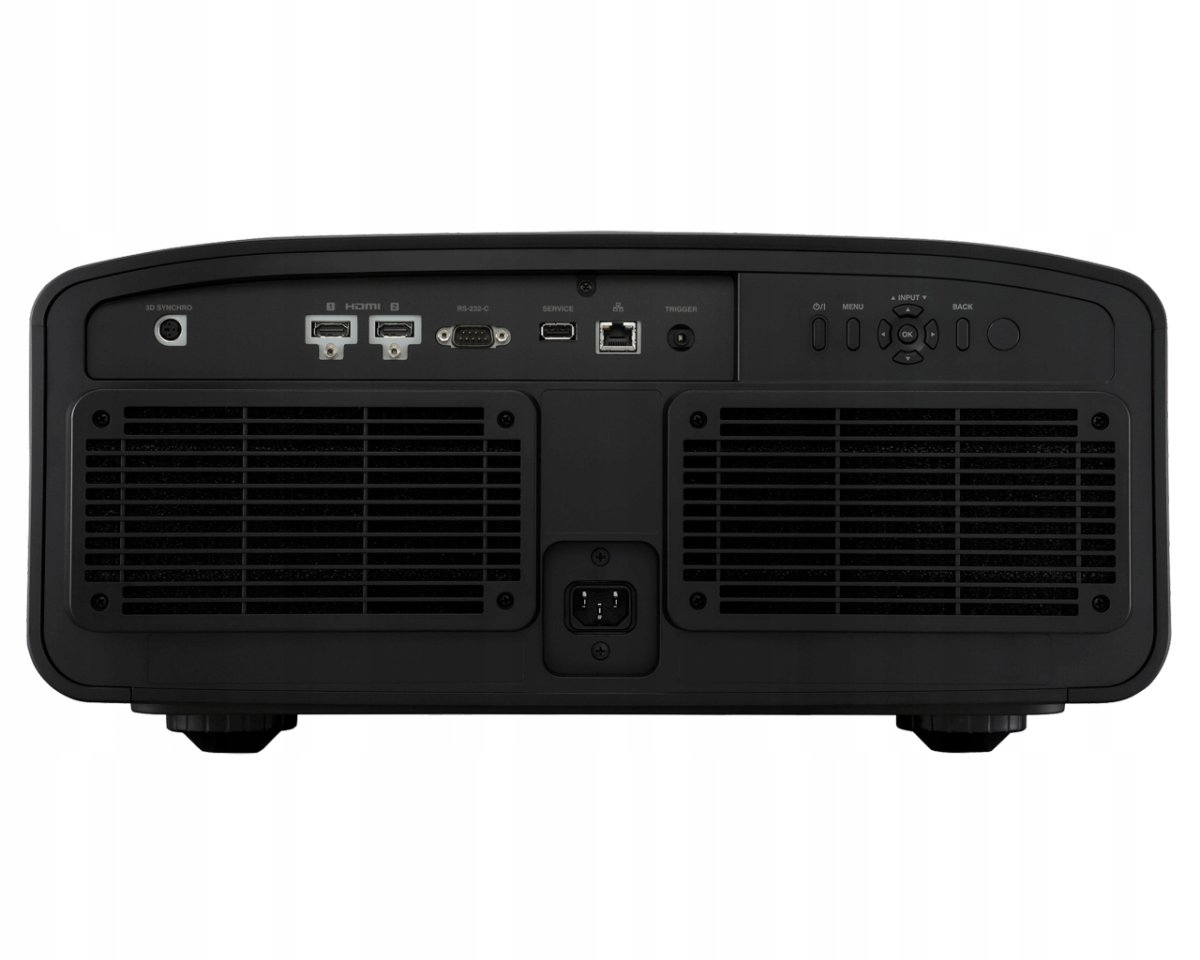

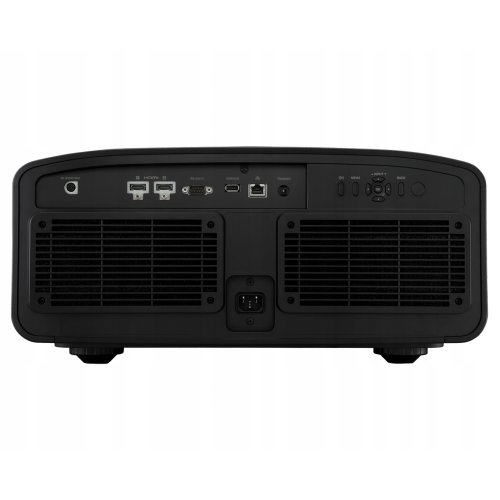

Connections

Trigger out Yes

Connector Mini-Jack (3,5mm)

Power DC 12V / 100mA

3D Synchro Yes

Connector Mini DIN 3-pin

LAN Yes

Connector RJ45

RS-232 Yes

Connector D-sub 9-pin

Service Yes

Connector USB (Type A) for firmware update.

3D

3D Capability Yes

3D Versions Frame Packing, Side-by-Side, Top & Bottom

Frame Packing Resolutions 720p 60/50, 1080p 24

Side-by-Side Resolutions 720p 60/50, 1080p 60/50/24, 1080i 60/50

Top & Bottom Resolution 720p 60/50, 1080p/24

3D Emitter (Optional) Yes, PK-EM2

3D Glasses (Optional) Yes, PK-AG3

Picture Settings

Picture Modes Natural, Cinema, Film, HDR10+, Frame Adapt HDR, HDR10, HLG, Pan_PQ, 6 User modes

Color Temperatures Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2

Gamma Processing Depth 12 bit

Gamma Adjust HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Film 1, Film 2, Pana_PQ, 3 Custom modes

Color Management 6-Axis adjustable CMS

MPC Yes

Low Latency Mode Yes

Clear Motion Drive Yes

Motion Enhance Yes

Auto Calibration Yes

Optional Probe needed Yes

Installation Mode Yes

Number of presets 10

Included settings Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, Pincushion, and Aspect

Anamorphic Modes 4 Modes (A, B, C, D)

Control4 SDDP Yes

Power & Environment

Power Requirement AC100-240V, 50/60Hz

Projector in Use 440W

Standby Eco Mode 0.20W

Network Standby 1.21W (LAN), 0.94W (RS-232C), 1.22W (LAN + RS232C)

Switchover time Approx. 15 min. (To standby or networked standby; default)

Fan Noise 24 dB

Eco Mode Yes

Standby Timer Yes

Operating Temperature 5°C to 35°C

Operating Humidity 20% to 80%

Installation Angle Horizontal +/- 5 degree / Vertical +/- 10 degree

Installation Height Below 2,000 m

In the box

Remote Control Yes, RM-MH27

User Manual Yes

Power Cord Yes

Batteries Yes, 2 x AAA-size batteries

Dimensions & Weight

Product Dimensions (WxHxD) 500 x 234 x 528 (mm)

Product Weight 25.3 Kg

Package Dimensions (WxHxD) 640 x 415 x 665 (mm)

Package Weight 30.7 Kg
