Panel
Screen Size 32"
Panel Technology IPS
Native Resolution 1,920 × 1.080 (FHD)
Brightness (Typ.) 400 nit
Contrast Ratio 1,100 : 1
Dynamic CR 1,000,000 : 1
Viewing Angle (H x V) 178 × 178
Response Time 10 ms (G to G)
Surface Treatment (Haze) 1%
Operation Hours (Hours / Day) 24/7
Orientation Portrait / Landscape
Connectivity

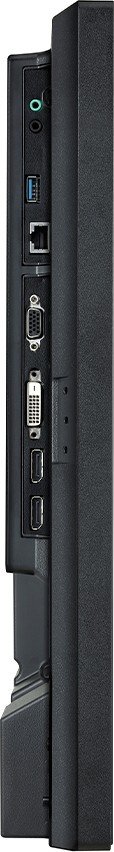

Input HDMI (3, HDCP 2.2), USB 2.0 ( Type A)
Output Audio Out (Off / Fixed / Variable)
External Control RS-232C In/Out (Phone-jack Type), RJ45 In (LAN), IR In (Phone-jack Type)
Mechanical Specification
Bezel Color Black
Bezel Width 13 mm (T/R/L), 18 mm (B)
Weight (Head) 5.7 kg
Weight (Head+Stand) 6.5 kg
Monitor Dimension (W × H × D) 729.4 mm × 428.9 mm × 55.5 mm
Monitor Dimensions with Stand (W × H × D) 729.4 mm × 481 mm × 154.2 mm
VESA™ Standard Mount Interface 200 × 200 mm
Feature
Key Feature Internal Memory 8 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Local Key Operation, webOS 6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Screen Share, Play via URL, Setting Data Cloning, SNMP, ISM (Image Sticking Minimization) Method, Control Manager, Smart Energy Saving, PM Mode, Wake on LAN, Beacon, HDMI-CEC (Compatibility may differ by equipment), SI Sever Setting, webRTC, Pro:Idiom
Environment Conditions
Operation Temperature 0°C to 40°C
Operation Humidity 10% to 80%
Power
Power Supply AC 100-240 V~, 50/60 Hz
Power Type Built-In Power
Power Consumption
Typ./Max. 55 W / 75 W
BTU (British Thermal Unit) 187.67 BTU/Hr (Typ.), 255.911 BTU/Hr (Max.)
Certification
Safety CB / NRTL
EMC FCC Class "A" / CE
ErP No
Software Compatibility
SuperSign CMS Yes
SuperSign Control / Control+ Yes
SuperSign WB Yes
SuperSign Media Editor Yes
LG ConnectedCare Yes
Promota Yes (Not available for Europe/CIS Region)
Sound
Speaker Yes (10 W × 2 EA)
Accessory
Basic Remote Controller, Power Cord, QSG, HDMI Cable, Phone to RS-232C Gender
Optional Stand (ST-322T), Wall Bracket (LSW230B), VESA Adapter (AM-B220S)
