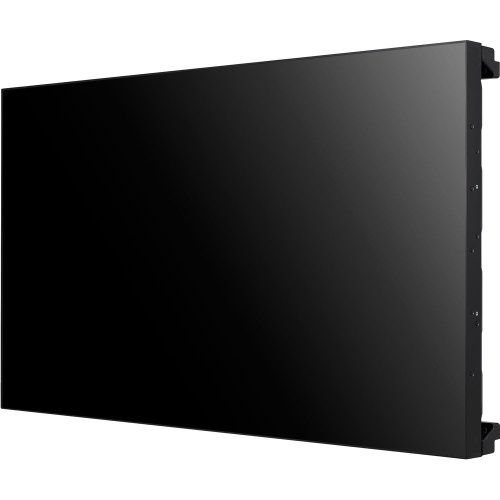

47" class (46.96" diagonal) Direct LED Super Narrow Bezel Display
47WV50BR-B
PANEL
Panel Size
Panel Technology
Contrast Ratio (Typ.)
Response Time
Pixels(H x V x 3)
Color Depth
Color Gamut
Viewing Angle
Orientation
Native Resolution
Dynamic CR (DCR)
Surface Treatment
Aspect Ratio
Brightness
47" class (46.96" measured diagonally)
IPS
1,400:1
12ms (Typ.)
6,220,800
1.06 Billion (10-bit)
68%
178°/178°
Portrait & Landscape
1920 x 1080 (FHD)
500,000:1
Hard coating(3H), Anti-reflection treatment of the front polarizer (Reflectance < 2%)
16:9
500 cd/m^2
VIDEO
Max Input Resolution
Rec. Resolution
Sync Compatability
H-Scanning Freq.
V-Scanning Freq.
Pixel Frequency
Video Input
Color Temperature
Picture mode
1920 X 1080@ 60Hz(RGB, HDMI, DVI-D, Display Port)
1920 X 1080@ 60Hz(RGB, HDMI, DVI-D, Display Port)
Separate, Composite, Digital
30 ~ 83kHz(RGB, HDMI, DVI-D, Display Port)
56~75Hz(RGB) / 56~60 Hz(HDMI, DVI-D, Display Port)
148.5MHz(RGB, HDMI, DVI-D, Display Port)
RGB, HDMI, DVI-D, AV, Component, Display Port
Warm/Medium/Cool
Vivid, Standard, Cinema, Sports, Game
INPUT (Rear)
USB
Audio
Digital
External Control
Analog
USB(1)
PC Audio In(1), AV/Component Audio In(RCA, 1)
DVI-D(1), HDMI(1) with HDCP for all input, Display Port(1)
RS232C(1), RJ45(1), IR Receiver(1)
RGB(1), Component(RGB Shared), AV(BNC, 1)
OUTPUT (Rear)
External Control
Analog
Digital
Audio
RS232C(1)
RGB(1)
DVI-D(1)
External speaker(1)
AUDIO
Sound Mode
Speaker on/off
Balance
Clear Voice II
Audio Power
Standard, Music, Cinema, Sports, Game
Yes
Yes
Yes
20W (10W x 2)
CABINET
Color
Monitor Dimensions
Monitor Weight
Carton Dimensions
Packed Weight
Bezel Width
Handle
VESA™ Standard Mount Interface
Black
41.1" x 23.2" x 3.5"
40.8 lbs.
46.5" x 30.3" x 6.5"
51.8 lbs.
3.2mm (left/top) / 1.7mm (right/bottom)
Yes
600mm x 400mm
SPECIAL FEATURES
Brightness/Contrast /Backlight
Energy Saving
Position/Size
Temperature Sensor
ISM Method
Advanced
Source Selection
Auto Config/Phase
Language (OSD/USB Playback)
Language (CD Manual)
Smart Energy Saving
Auto Power/Source Memory
Tile Mode
Tile mode @ Natural mode
File Play with USB
Input Label
Time
Information Display
DPM Select
Yes
Yes, Off / Minimum / Medium / Maximum / Screen Off
Yes
Yes
Normal, Orbiter, Inversion, White wash
Clear White, Dynamic Contrast, Dynamic Color, Noise Reduction, Gamma, Black Level, Skin color, Digital Noise Reduction
Digital(HDMI/DVI) / DVI / Analog(RGB) / Component/USB
Yes
Korean, Chinese(Traditional), Chinese(Simplified), Japanese, German, English, French, Portuguese(Brazil), Portuguese(Europe), Spanish, Italian, Russian, Swedish(Sweden), Finnish(Finland), Norwegian(Norway), Danish(Denmark), Dutch(Netherlands), Cheskey(Czech), Greek
Korean, Chinese(Traditional), Chinese(Simplified), Japanese, German, English, French, Portuguese(Brazil), Portuguese(Europe), Spanish, Italian, Russian, Swedish(Sweden), Finnish(Finland), Norwegian(Norway), Danish(Denmark), Dutch(Netherlands), Cheskey(Czech), Greek
Yes
Yes
Yes
Yes, Up to 15 x 15
Yes
Yes
Clock, On/off Time, Sleep Timer, Power on Delay
Model/Type, Serial Number, S/W Version, IP Address, Homepage
Yes (Installation Menu)
ACCESSORIES
Accessories
Remote Controller, Power cable, DVI Cable, Manual, IR Receiver, RS-232C Cable, Guide Bracket, Screw
POWER
Power Supply
Power Type
Power Consumption-Typical
Power Consumption-Smart Energy Saving On
Power Consumption-DPM
Power Consumption-Power Off
100–240V~, 50/60Hz
Built-in Power
150W
80W
0.7W
0.5W
STANDARD CERTIFICATIONS
EMC
ErP/ Energy Star 6.0
Safety
FCC Class "B" / CE / KCC
Yes/ Yes
UL / cUL / CB / TUV / KC
WARRANTY
WARRANTY
3-Year Limited Warranty (Parts/Labor/Backlight)
UPC
UPC
7 19192 19268 3
MEDIA PLAYER COMPATIBILITY
External Media Player Attatchable
Yes
ENVIRONMENT CONDITIONS
Operation Temperature
Operation Humidity
0°C~40°C
10%~90%
SOFTWARE COMPATIBILITY
SuperSign Compatibility
Elite-s
