Optical, ,
Display System, , 3LCD 19mm (0.76")
Panel Structure, , 3LCD
Resolution, , WUXGA (1920 x 1200)
Light Output (Brightness) ANSI Lumens, , 8000 (Normal)
Contrast Ratio, , 2,500,000 : 1
Light Source Life, , 20,000 Hours
Lens, , Interchangeable, not included
Lens Zoom, , Powered Zoom x 1.7
Motorized Lens Shift, , Yes
Lens Focus, , Powered Focus
Lens Shift, , Vertical -16.7 – +56.5%, Horizontal +/-10% (Standard Lens ML-713)
Projection Lens F Number, , 1.6 - 2.0 (Standard Lens ML-713)
Focus Distance, , 0.9 – 36.8m (Standard Lens ML-713)
Distance to width ratio (:1), , Lens FL-720M 0.38 / USL-701M 0.74-0.98 / FL-701M 0.78 SL-712M 1.15-1.75 / ML-713M 1.68-2.88 / LL-704M 2.78-4.75 UL-705M 4.75-8.10
Diagonal Display Size, , 30 – 600"
Features, ,
Installation, , Ceiling, Tabletop, Rear, Portrait, 360° Projection
Digital Keystone Correction, , Horizontal ±30°, Vertical ±30° (ML-713)
Picture Modes, , Standard, Natural, Cinema, Dynamic, Board (Black), Board (Green), Whiteboard, Daytime, DICOM SIM, User–1, User–2, User–3
Picture Adjustments, , ASPECT selection (Normal/4:3/16:9/16:10/14:9/Zoom/Native), Perfect Fit (4 corners and 4 sides), Frame Lock (Data signal with vertical frequency of 49 to 51Hz, 59 to 61Hz), HDCR, Image blank by RS232C/Remote control, Image optimizer, Magnify, Mirror reverse image, Up-side down image
Operating Features, , Accentualizer and HDCR 2, Auto Power Off, Auto signal search & Source skip, Blending/Cropping, Closed Caption (CC1– 4, TEXT1– 4) support NTSC (Video) and 480i (Component signal), Digital Keystone Correction (Horizontal, Vertical: ±30 degrees), Direct Power On, Eco Mode (Normal, Eco), Equalizing Color temperature Adjustment, Equalizing Digital Gamma Correction, Filter timer / selectable interval time to show the message for air filter cleaning.(15,000hours is the default), Frame Lock (Data signal with vertical frequency of 49 to 51Hz, 59 to 61Hz), HDBase-T, Image blank by RS232C/Remote control, LED lamps (Filter, Shutter, Security, Lamp–1, Lamp–2, Temp, Power), Lens memory (Lens shift position, Lens type), MAC address displayed on the side of projector, Magnify 4 times (XGA) by RS232C/Remote control, Mechanical shutter, Mirror Reverse Image, Up–side Down Image, My Button by Remote control, My Memory, My source, My Text, MyScreen, Overscan (Video, Component video signal), Perfect Fit (4 corners), capable of saving/loading the setup, Picture by Picture/Picture in Picture, Picture Freeze by RS–232C /Remote control, Picture mode (Standard, Natural, Cinema, Dynamic, Board (Black), Board (Green), Whiteboard, Daytime, DICOM SIM., User–1, User–2, User–3), Progressive(Video signal, Component video or HDMI signal of 525i(480i),625i(576i)),1125i(1080i)), Resolution setting
Network Features, , Wireless Capability(Option), Present via Live Viewer Software (Windows/Mac), Multi Projector, Moderator Control Mode, Projector Quick Connection (iOS / Android app), Projector Monitoring and Control from a Remote Location, E-mail Alerts
Security, , Password / Myscreen Password, Pin Lock, Key Lock
Languages, , 34 Languages (English, French, German, Spanish, Italian, Norwegian, Dutch, Japanese, Portuguese, Simplified Chinese, Traditional Chinese, Korean, Swedish, Russian, Finnish, Polish, Turkey, Arabian, Persian, Czech, Danish, Hungarian, Romanian, Slovenian, Croatian, Greek, Lithuanian, Estonian, Latvian, Thai, Portuguese (Brazil), Indonesian, Vietnamese, Hebrew)

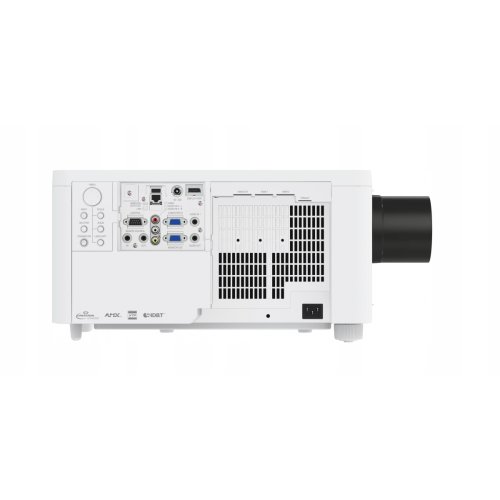

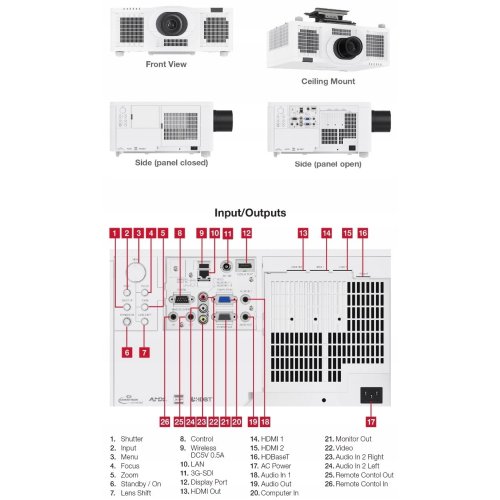

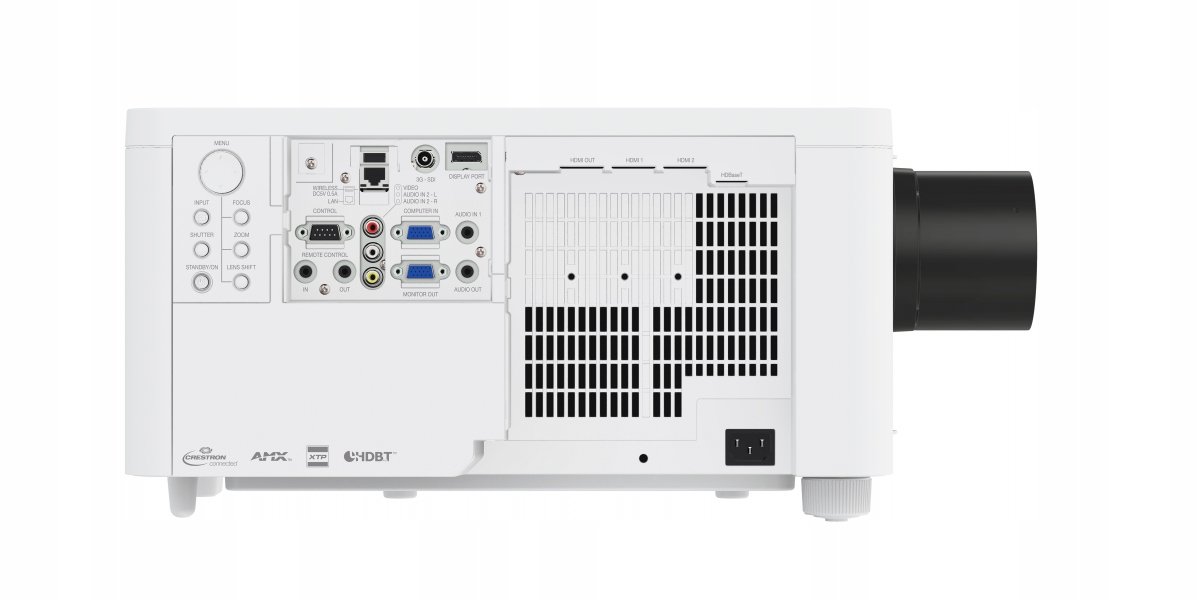

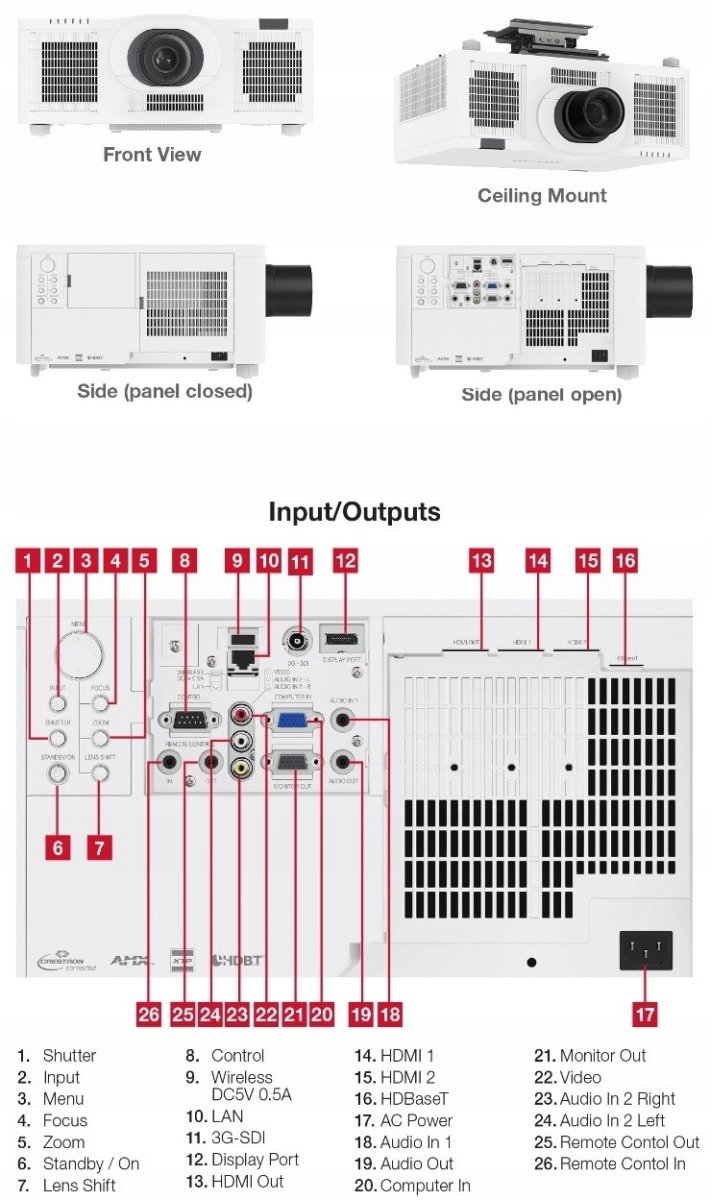

Connections, ,
Digital Input, , HDMI x 2 (HDCP 2.2 compliant) HDBaseT x 1 3G SDI x1 Display Port x 1
Analogue Input, , 15 pin Mini D-Sub x 1, BNC x 1
Video Output, , 15 pin Mini D-Sub x 1, HDMI x 1 (HDCP 2.2 compliant)
Audio Input, , 3.5mm Stereo Mini Jack x 1, RCA Jack (L/R) x 1
Audio Output, , 3.5mm Stereo Mini Jack x 1
RS-232C Control, , 1 x 9-pin D-Sub
Wireless LAN, , USB-WL-5GM wireless adapter (optional)
Wired LAN, , RJ45 Connector x 1
USB Type A, , USB Type A x 1 (wireless adapter)
Wired remote control (in/out), , 3.5mm Stereo Mini Jack x 1 (input) / 3.5mm Stereo Mini Jack x 1 (output)
Power, ,
Power Supply, , AC 100V – 120V / AC 220V – 240V (50/60Hz)
Operating Power Consumption, , 560W
Standby Power Consumption, , Less than 0.5W
Physical, ,
Weight, , 18.2Kg
Dimensions (WxHxD), , 582 x 215 x 431mm
Noise, , 34dB (Normal), 26dB (Whisper)
Filter Life (Hours), , 20,000
Compatibility, ,
Computer, , IBM Compatible VGA, SVGA, XGA,WXGA, WXGA+, SXGA, SXGA+, UXGA, WUXGA
Video, , 525i (480i), 525p (480p), 625i (576i), 625p (576p), 1125i (1080i@50/60), 1125p (1080p@50/60), 4K (3840x2160@30 4:4:4, Compressed)
Accessories, ,
Supplied Accessories, , Power Cable (1.8m), Computer Cable (2m), Remote Control Unit x1,Concise User Manual x1, Security Label x1, Lens Hole Cover x1, Cable Tie (large x1, medium x3), AA Batteries x2, Terminal Cover x 2, Warranty card x1, QC Pass Label x1
Optional Accessories, , USB wireless adapter USB-WL-5GM, Optional lenses: Ultra-short-throw FL-720M, Short-throw USL-701M, Short-throw FL-701M, Short-throw SL-712M, Standard-throw ML-713M, Long-throw LL-704M, Ultra-short-throw UL-705M
Remote Control, , HL02806
Filter, , Lamp free /UX43481
Projector/ Lamp Warranty, , 20,000 hours / 5 years (whichever comes first) (for extended warranties please contact your local dealer)
Miscellaneous, ,
Certification, , CE Marking, EN61000-3-2, EN61000-3-3, EN55032 (Class A), EN55035 (EMC Directive), EN60950-1 (Low Voltage Directive), WEEE/RoHS compliant
Projector/ Light source Warranty, , 20,000 hours / 5 years (whichever comes first)
