Display 3 x 1,5 cm (0,59") p-Si LCD Panel with MLA
Lamp 230 W AC (168 W AC Eco Mode)
Lamp Life [hrs] 4000 (5000 Eco Mode) 1
Brightness 2 2100 ANSI Lumens (approx. 70% in Eco Mode)
Contrast Ratio 2 600:1
Lens F= 2,3, f= 9,7 mm
Diagonal: min. / max. [cm] 144,8 (57") / 264,2 (104")
Projection Distance: min. / max. [cm] 90,2 (36"); 166,9 (66")
Projection Factor 0,74 : 1
Projection Angle [°] 29
Frequency Horizontal: 15–100 kHz (RGB: 24 kHz– 100 kHz); Vertical: 50 – 120 Hz
Native Resolution 1280 x 800 (WXGA)
Supported Resolutions 1920 x 1080 (HDTV 1080i/60; HDTV 1080i/50); 1600 x 1200 (UXGA); 1440 x 900 (WXGA+); 1400 x
1050 (SXGA+); 1280 x 1024 (SXGA); 1280 x 1024 (MAC 23"); 1280 x 960 (SXGA); 1280 x 800 (WXGA);
1280 x 768 (WXGA); 1280 x 720 (HDTV 720p); 1152 x 864 (XGA); 1024 x 768 (XGA); 832 x 624 (MAC
16"); 800 x 600 (SVGA); 720 x 576 (DVD progressive); 720 x 480 (DVD progressive); 720 x 480 (SDTV
480p); 640 x 480 (VGA/MAC 13"); 1152 x 870 (MAC 21") compressed; 1280 x 1024 (Maximum resolution
of digital input)

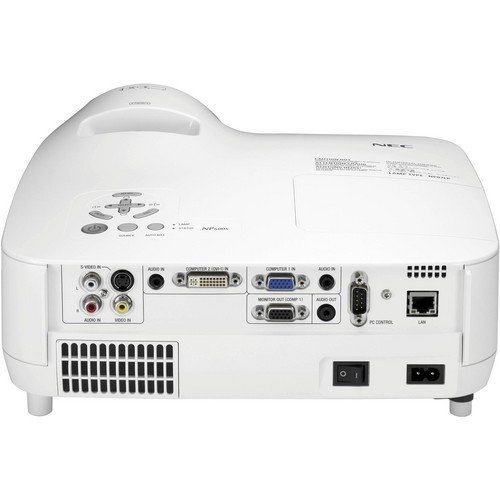

ComputerAnalog Input: 1 x Mini D-sub 15-pin, compatible to component (YPbPr)
Computer Digital Input: 1 x DVI-I (with HDCP)
Video Input: 1 x RCA
S-Video Input: 1 x Mini DIN 4-pin
Audio Input: 1 x RCA Stereo for Video and S-Video; Input: 2 x 3.5 mm Stereo Mini Jack for Computer analog and
digital;
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
PC Control Input: 1 x D-Sub 9 pin (RS-232) (male)
LAN 1 x RJ45
Video Signals PAL / PAL60 / NTSC / SECAM / NTSC 4.43 / PAL-N / PAL-M
Audio Functions [W] 1 x 7 (mono)
Zoom / Focus Adjustment Digital Zoom / Manual
Benefits Auto Power ON/OFF; Automatic and manual Keystone Correction (V= +/-20°); Colour Management; Control
and monitoring via network and RGB-cable; Direct Power-Off Function; High Altitude Mode; Kensington
security slot; Keypad Lock; Magnify; Off-Timer; Optional User Logo; OSD with 21 languages; Password
Security System; Quick On/Off; RS-232 Control; Security Bar; Virtual Remote for direct PC control; Wall
Colour Correction
Remote Control Aspect Ratio; Audio Control; Auto Adjust; Automatic Picture Adjustment; Freeze-function; Lamp Mode
Control; Magnify-function; Optional Presentation and Mouse Control; Picture Adjust; Picture Mode; Picture
Mute; Source Select
Dimensions (W x H x D) [mm] 308 x 130 x 292 (without lens and feet)
Weight [kg] 3,3
Power Supply 200-240 V AC; 50 - 60 Hz
Power Consumption [W] 325 Normal Mode; 170 Eco Mode; 11 Network Stand-by Mode; 3 Stand-by Mode
Fan Noise [dB (A)] 29 / 35 (Eco / Normal)
Safety and Ergonomics CE; TÜV GS; RoHS; Gost-R
Warranty Projector: 3 years pan-European Premium Service; Lamp: 6 Months, max. 1000 Hrs
Shipping Contents IR remote control; Mini D-SUB Signal Cable; Power Cord (4,5 m); DVI-VGA Adapter; Users Manual on CDROM; Quick Setup Guide; Lens Cap
Optional Accessories Ceiling Mount Kit (NP08CM); Lamp (NP07LP); Mouse Receiver (NP01MR)
1
from August 2009 onwards
2
Compliance with ISO21118-2005
