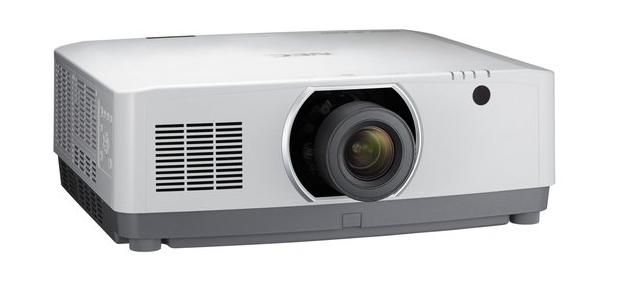

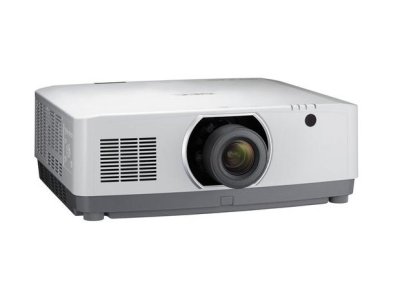

Projection Technology 3LCD Technology
Native Resolution
1920 x 1200 (WUXGA)
Aspect Ratio 16:10
Contrast Ratio 1 2500000:1
Brightness 1 8000 ANSI Lumen (approx. 80% in Eco Mode), with std. optional lense
Lamp Laser Light Source
Light Source Life [hrs] 20000 2
Lens 3 motorized lens options
Lense Adjustment Motorized
Lens shift H:±20, V:+10,-50
Keystone correction +/- 40° manual horizontal / +/- 40° manual vertical
Projection Factor depending on lens selection (std. option NP41ZL at 1.3-3.02:1)
Projection Distance [m] 0.7 – 50.9
Screen Size (diagonal) [cm] / [inch] (best performance range); Maximum: 1,270 / 500"
Zoom Motorized
Focus Adjustment Motorized
Supported Resolutions
1080i/50/60;
1080p/24/25/30/50/60;
1920x1200 (WUXGA) - 640x480 (VGA);
2048 x 1080 (2k);
2560 x 1600 (WQXGA);
4096 x 2160 (4k);
480i/50;
480p/60;
576i/50;
576p/50;
720p/50;
720p/60
Frequency Horizontal: analog: 15/24-100 kHz, digital: 15/24-153 kHz; Vertical: analog: 48-120 Hz, digital: 48-120 Hz
Connectivity
RGB (analog) Input: 1 x Mini D-sub 15-pin, compatible to component (YPbPr)
Digital Input: 1 x DisplayPort; 1 x HDBaseT; 2 x HDMI™ supporting HDCP 2.2
Output: 1 x HDBaseT supporting HDCP 2.2
Audio Input: 1 x DisplayPort Audio support; 1 x HDBaseT audio support; 2 x 3.5 mm Stereo Mini Jack for Computer analog; 2 x HDMI audio support
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Control Input: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet
LAN 1 x RJ45
USB 1 x Type A (USB 2.0 high speed)
3D Sync Output: 1 x Mini DIN 3pin
Remote Control
Remote Control 3D Setup; Aspect Ratio; Audio Control; Auto Adjust; DisplayPort; Eco Mode Control; Edge-Blending; Freeze-function; Geometric Correction; HDMI; Help-function; Keystone Correction; Magnify-function; Multiscreen; Page (up, down); PBP/POP Function; Picture Adjust; Picture Mute; PIP Function; Power (On-OFF); Select (up, down, left, right); Source Select; Test Picture
Electrical
Power Supply 100-240 V AC; 50 - 60 Hz
Power Consumption [W] 774 (Normal) / 592 (Eco) / 0.7 (Network Stand-by) / 0.16 (Stand-by)
Mechanical
Dimensions (W x H x D) [mm] 580 x 208 x 494 (without lens and feet)
Weight [kg] 18.2
Fan Noise [dB (A)] 35 / 45 (Eco / Normal)
Environmental Conditions
Operating Temperature [°C] 5 to 40
Operating Humidity [%] 20 to 80 non-condensing
Storage Temperature [°C] -10 to 50
Storage Humidity [%] 20 to 80 non-condensing
Ergonomics
Safety and Ergonomics CE; EAC; ErP; RoHS; TUEV Type Approved
Additional Features
Special Characteristics 3D ready; 4K/60Hz interfaces; Active 3D; AMX Beacon; Built-in Display/Multiscreen Splitter; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; DICOM simulation; Digital 3D Reform™; Direct Power-Off Function; Edge Blending Function; Free Tilt; Geometric Correction; HDBaseT; HDBaseT-out signal connection; HDR10 Support; High Altitude Mode; Hollywood Quality Video Processing for best image quality; HTTP Browser Control; Keystone Correction (H=±40°, V=±40°); LAN control; Lens Memory; Lens Shift (vertical +0.5 max/-0.1 max, horizontal ± 0.3 max.); Light Source Adjustment; Long Life Lamp; Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security System; PIP/Side by Side, HDMI - Input; PJ LINK; Portrait Setting; Rec2020 to Rec709 colour conversion; RS-232 Control; Seamless Switching; Stacking Function; Test Pattern; Timer-Function; UHD player support; Up to 20,000 hrs Light Source Life; Virtual Remote for direct PC control
Green Features
Energy Efficiency ECO scheduler; Intelligent Power Management; Less than 0.3W Stand-By power; Longer Light Source Life; Software scheduling; Timer-Function
Ecological Materials 100% recyclable packaging; Downloadable manuals
Ecological Standards ErP compliant
Warranty
Projectors 3 years pan-European service
Light Source 3 years or 10000h (whatever comes first)
Shipping Content
Shipping Contents Cable Cover (NP11CV); IR Remote Control (RD - 466E); Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM
Optional Accessories
Optional Accessories 3 optional bayonet lenses; MultiPresenter Stick; Universal Ceiling Mounts (PJ01UCM, PJ02UCMPF); XpanD 3D Glasses (X105-RF-X2); XpanD 3D RF Emitter (AD025-RF-X2)
Lenses - motorized NP40ZL (0.79-1.11:1); NP41ZL (1.3-3.02:1); NP43ZL (2.99-5.93:1); NP44ML (0.32:1)
1 Compliance with ISO21118-2012

2 50% of initial brightness at the end of specified laser life time at 25 degree ambient temperature.

* This product has been equipped with a laser module and is classified as Class1 of IEC60825-1 Ed3 2014 and is classified as RG2 of IEC62471-5 Ed1 2015.
DO NOT LOOK DIRECTLY INTO THE BEAM.
