Display
Native Resolution 1080p 1920x1080 Maximum Resolution WQXGA 4096 x 2160
Contrast Ratio (typical) 10,000:1 with Dynamic Contrast
Synchronization Range
Horizontal (Analog/Digital) 15-153 kHz Vertical 48-120 Hz
Signal Compatibility/Connectivity
Supported Video Standards NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, WXGA, UXGA, FHD, WUXGA, 2K, QXGA, WQXGA, 4k Macintosh Signal Compatibility Yes
Sync Compatibility Separate Sync / Composite Sync / Sync on G External Control RS-232, IR, HDBaseT, Wired LAN, DDC/CI, USB

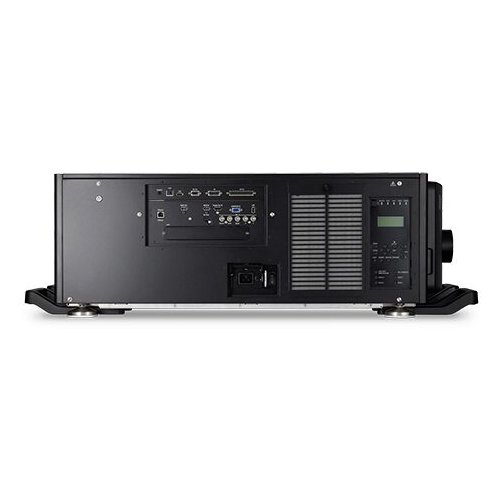

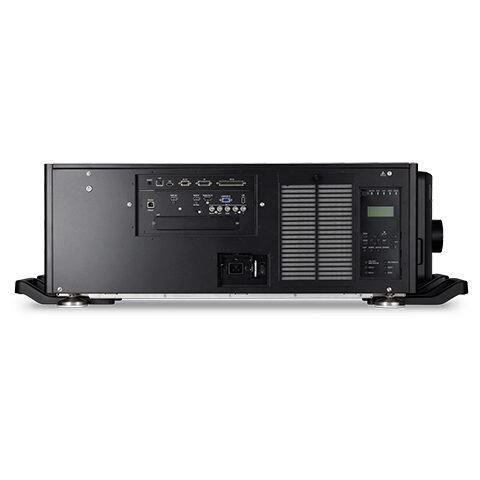

Input Terminals
RGB1(analog):
VGA 15-pin D-sub
RGB2(analog):
5-BNC
RGB3(digital):
HDMI w/HDCP
RGB4(digital):
DisplayPort w/HDCP
RGB5(digital):
HDBaseT

Power Consumption (typical)
On 1392W / 1110W / 5.7W / 1.83W Input Current 9.2A
Power Requirements 200-240V AC, 50/60 Hz
Physical Specifications
Dimensions (WxHxD)
Product:
26.8 x 33.9 x 13.1 in. / 680 x 860 x 333mm
Weight
Net Weight:
149.9 lbs. / 68.0 kg
Environmental Conditions
Operating Temperature 41-104°F / 5-40°C Storage -14-122°F / -10-50°C
Limited Warranty (parts & labor)
5 year or 20,000 hour parts & labor warranty. First year InstaCare Service.
Additional Features
Automatic keystone correction
Cornerstone
Geometric Correction
Auto power on
ECO Mode technology
Closed captioning
Virtual Remote
Sleep timer
Quick power-off
Built-in wall color correction
Advanced AccuBlend
AutoSense

Optical
Display Technology DLP (0.65" DMD) Lamp Type Laser/Phosphor
Light Output(Lumens) 12,000 normal Light Source Life 20,000 hours
Screen Size (diagonal) 100 to 500 in. / 1.02 to 12.7m Throw Ratio 1.5 to 3.02
Projection Distance 4.6 to 245.1 ft. / 1.4 to 74.7m Projector Angle 5.8 to 14.4° tele / 10.9 to 18.4° wide
Lens
Zoom:
1 to 2.01
Focus:
Power
F number, fnumber:
F=1.7 to 2.37, f=24.4 to 48.6mm
Keystone Correction /- 40° horizontal, +/- 40° vertical
Mechanical
Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear Fan Noise 48 dB
Regulations "USA: UL60950-1 (2) / UL, FCC Part15 Class A / FCC DoC, Canada CSA C22.2 60950-1-07 (2) / C-UL, ICES-003 Class A / DoC of Canada" Optional Lenses NP-9LS08ZM1, NP-9LS12ZM1, NP-9LS13ZM1, NP-9LS16ZM1
