Projection Technology 1-chip DLP™ Technology
Native Resolution
1920 x 1200 (WUXGA)
Contrast Ratio 1 10000:1
Brightness 1 6000 ANSI Lumen, with std. optional lense
Lamp Laser Light Source
Light Source Life [hrs] 20000 2
Lens 5 optional bayonet lenses
Projection Factor depending on lens selection
Projection Distance [m] 1.02 – 19.39
Screen Size (diagonal) [cm] / [inch] Maximum: 760 / 300"; Minimum: 127 / 50"
Zoom Motorized
Focus Adjustment Motorized
Supported Resolutions
1080i/50/60;
1080p/24/25/30/50/60;
1920x1200 (WUXGA) - 640x480 (VGA);
2048 x 1080 (2k);
2560 x 1600 (WQXGA);
4096 x 2160 (4k);
480i/50;
480p/60;
576i/50;
576p/50;
720p/50;
720p/60
Frequency Horizontal: analog: 15/24-100 kHz, digital: 15/24-153 kHz; Vertical: analog: 48-120 Hz, digital: 24-120 Hz

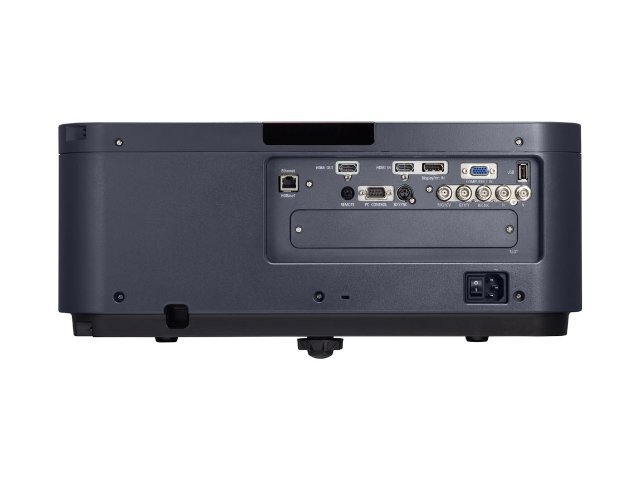

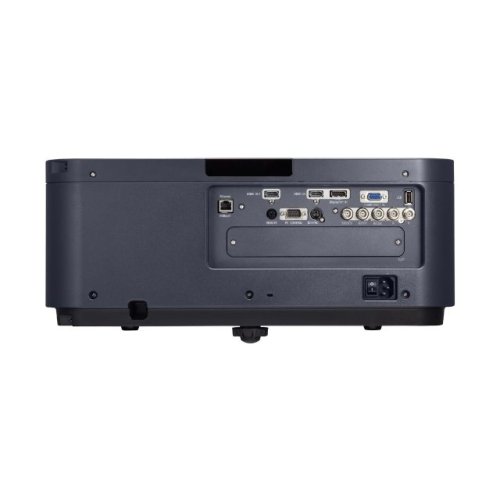

Connectivity
RGB (analog) Input: 1 x 5BNC, shared with Component Signal (YPbPr); 1 x Mini D-sub 15 pin
Digital Input: 1 x DisplayPort supporting HDCP; 1 x HDBaseT; 1 x HDMI™ supporting HDCP
Output: 1 x HDMI supporting HDCP
Video Input: 1 x BNC R Share
S-Video Input: 1 x BNC G/B Share
Control Input: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet; 1 x Ethernet shared with HDBaseT
Option Slot Input: 1 x Slot for optional OPS modules
USB 1 x Type A (USB 2.0 high speed for mouse support)
3D Sync Output: 1 x Mini DIN 3pin
Video Signals NTSC; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM
Remote Control
Input: 1 x 3.5 mm Stereo Mini Jack
Remote Control Auto Adjust; AV Mute; Direct Info; Direct Source Select; Eco Mode Control; Freeze-function; Full Lense control; Help-function; ID Select; Illuminated Buttons; Input Control; Magnify-function; On Screen On/Off Selection; Picture Adjust; PIP Function; Power (On-OFF); Select (up, down, left, right); Shutter function; Test Picture; Wired / Wireless Connection
Electrical
Power Supply 100-240 V AC; 50 - 60 Hz
Power Consumption [W] 270 Eco Mode; 550 Normal Mode
Mechanical
Dimensions (W x H x D) [mm] 484 x 195 x 509 (without lens and feet)
Weight [kg] 18.5
Fan Noise [dB (A)] 38

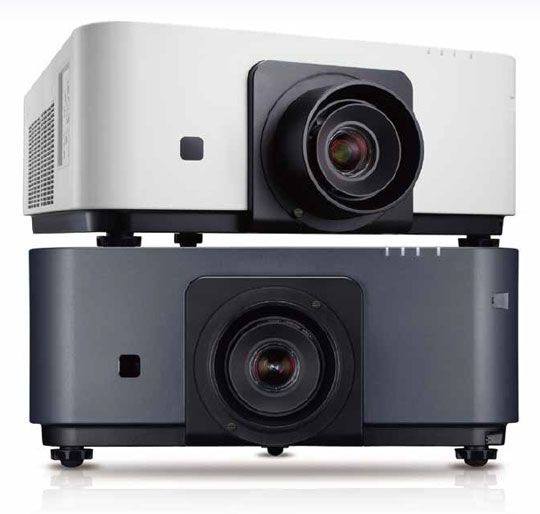

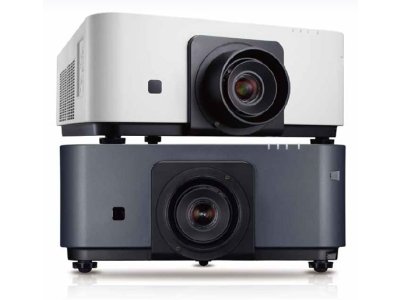

Colour Versions Black; White
Ergonomics
Safety and Ergonomics CE; ErP; RoHS; TUEV Type Approved
Additional Features
Special Characteristics 3D ready; 4K Interface; AMX Beacon; Built-in Display/Multiscreen Splitter; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; DICOM simulation; Digital 3D Reform™; Direct Power-Off Function; Edge Blending Function (Build In); Free Tilt; Full 3D HDMI Support; Geometric Correction; HDBaseT; Keystone Correction (H=±40°, V=±40°); LAN; Lens Shift (vertical +0,5 max/-0,5 max, horizontal ± 0,15 max.); Light Source Adjustment; Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; OPS module support; Optional User Logo; OSD with 27 languages; Password Security System; PIP/Side by Side, HDMI - Input; PJ LINK; Portrait Setting; RS-232 Control; Stacking Function; Timer-Function; Virtual Remote for direct PC control
Green Features
Energy Efficiency Laser Light Source
Ecological Materials 100% recyclable packaging; Downloadable manuals
Ecological Standards ErP compliant
Warranty
Projectors 3 years pan-European service
Light Source 3 years or 10000h (whatever comes first)
Shipping Content
Shipping Contents IR Remote Control (RD - 465E); Network Set-up Guide; Power Cord; Projector; Quick Setup Guide; Stacking Holder; Users Manual on CD-ROM; Utility software
Optional Accessories
Optional Accessories Ceiling Mount Kit; DLP-Link 3D Glasses (VolfoniFit); Flightcase; Portrait Mode Cover (NP07CV); Stacking Frame (PJ01FPX); XpanD 3D Glasses (X105-RFX2); XpanD 3D RF Emitter (AD025-RF-X1)
Lenses NP33ZL (0.75-95:1) available from 04/2015; NP34ZL (0.95-1.22:1); NP35ZL (1.22-1.53:1); NP37ZL (1.52-2.92:1); NP38ZL (2.9-5.5:1)
OPS Slot-in Modules Digital Signage Player; HD/SD-SDI Module; HDBaseT Receiver; Slot-in PCs
1 Compliance with ISO21118-2012

2 50% of initial brightness at the end of specified laser life time at 25 degree ambient temperature.

* This product has been equipped with a laser module and is classified according to Class 2 of Safety of Laser Products IEC 60825-1.
DO NOT LOOK DIRECTLY INTO THE BEAM.
