TECHNICAL SPECIFICATIONS

• Aspect Ratio: 16:9
• Audio: 5W
• Brightness: 3,400 ANSI lumens
• Color Wheel: RGBWRGBW 8 segment
• Compatible Aspect Ratio: 16:9 (native), 4:3 and LBX compatible

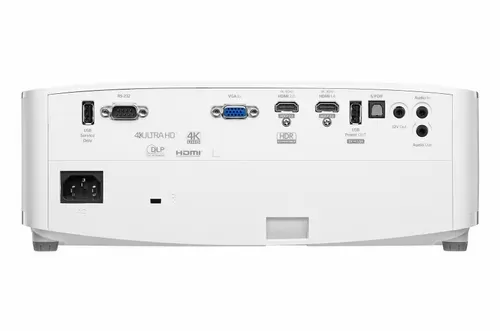

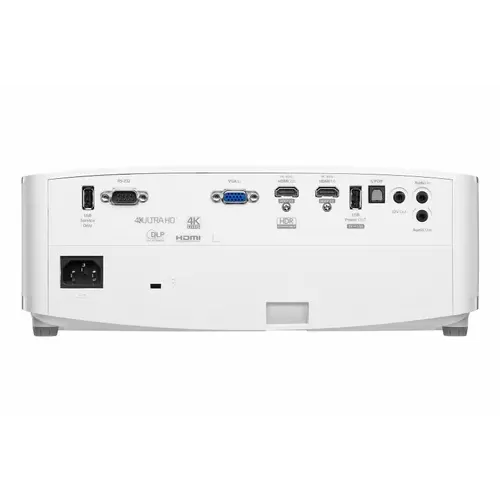

• Connections: HDMI 2.0 (w/ HDCP 2.2, MHL 2.1), HDMI 1.4a, VGA-in, audio-in (3.5mm), audio-out, S/PDIF out (optical), USB 2.0 (service port), USB power (5V, 1.5A), RS-232C, 12V Trigger
• Contrast Ratio: Up to 500,000:1 with Dynamic Black
• Display Technology: Texas Instruments™ 0.47” 4K UHD DMD
• Displayable Colors: 1.07 billion
• Image Size: 34.1” – 302.4
• Keystone Correction: ± 40° Vertical
• Light Source Type: 240W
• Light Source Life: 4,000/10,000/15,000 (Bright/ECO/Dynamic)
• Lens Shift: Vertical: +10%
• Maximum Resolution: 1080p (1920 x 1080, 240Hz), 4K UHD (3840 x 2160, 60Hz)
• Native Resolution: UHD (3840 x 2160)
• Noise Level: 26dB
• Offset: 105% (± 5% variance)
• Operating Temperature: 41–104°F (5–40°C), 85% max humidity
• Power Consumption: 315W typical (Bright), 347W max (Bright), 225W typical (ECO), 248W max (ECO)
• Power Supply: AC input 100-240V, 50-60Hz, auto-switching
• Projection Distance: 4’ – 34.8’ (without zoom)
• Projection Lens: F=1.94 ~ 2.23, f=12.81 ~ 16.74 mm manual focus
• Projection Method: Front, rear, ceiling count, tabletop
• Projection Screen Size: 34.1” – 302.4
• Remote Control: Full Function Home Remote Control
• Throw Ratio: 1.21 – 1.59 (with tolerance ±3%)
• Uniformity: 80%
• Zoom Type: 1.3x optical (manual); 0.8 – 2.0 digital

COMPATIBILITY SPECIFICATIONS

• 3D Compatibility: Frame-pack: 1080p24, 720p50 / 60, Side-by-side: 1080i50 / 60, 720p50 / 60, Over-under: WUXGA24, 720p50 / 60
• Computer Compatibility: 4K UHD 2160p, WUXGA, HDTV 1080p, UXGA, SXGA, WXGA+, WXGA (1366×768), WXGA, HDTV (720p), XGA, SVGA, VGA, PC and Mac compatible
• Horizontal Scan Rate: 31.000 to 135.000KHz
• Optional Wireless: No
• RoHS: Compatible
• Vertical Scan Rate: 24Hz to 120Hz
• Video Compatiblity: 4K UHD 2160p (24/50/60Hz), 1080p (24/50/60Hz), 1080i (50/60Hz), 720p (50/60Hz), 480i/p, 576i/p

PHYSICAL SPECIFICATIONS

• Dimensions (W x H x D): 12.4” x 4.6” x 10.6”
• Security: Kensington® lock port, password (OSD)
• Weight: 8.6 lbs.

OTHER

• Optional Accessories: Mount
• Standard Accessories: AC power cord, remote control, batteries for remote and quick start guide card
• UPC: 796435 81 349 9
• Warranty Info: 1-Year parts and labor limited warranty on the projector, 90 days lamp warranty
