Display Technology Single 0.65" WXGA chip, DLP® Technology from Texas Instruments™

Resolution WXGA 1280 x 800

Brightness 5000 ANSI Lumens

Contrast Ratio 10,000:1 (full on/full off)

Lamp Life2 Eco/Bright 3500/3000 (hrs)

Throw Ratio 3 1.48:1~2.35:1

Zoom Type Digital Zoom: 0.8 ~ 2.0; Optical Zoom: 1.6x Manual zoom

Lens Shift Vertical: +16% (constraints apply see user manual for details)

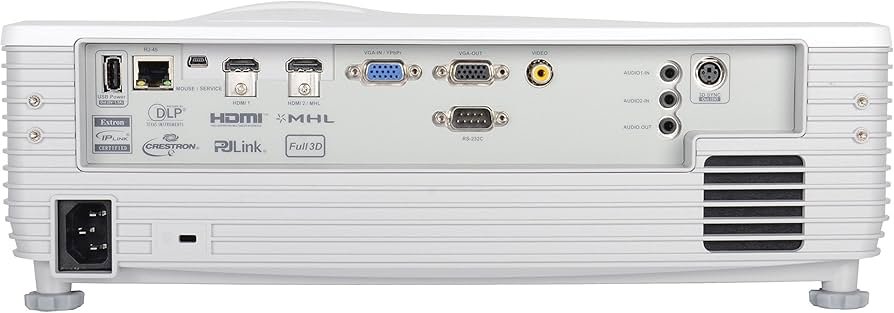

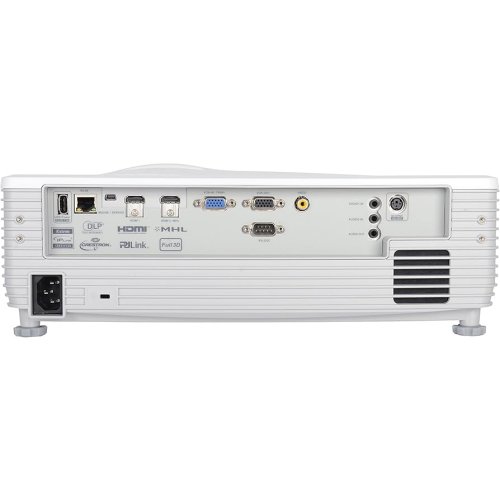

I/O Connectors 3x HDMI 1.4a (2 with MHL, 2 rear and 1 on top), 1x VGA-In, 1x VGA-Out,1x Composite Video (RCA-Y), 2x Audio-In (3.5mm jack), 1x Audio-Out (3.5mm jack), 1x RS-232C (9pin d-sub), 1x mini-USB (service/control), 1x USB-A (5V/1.5A out), RJ45 (LAN), 1x 3D vesa port, AC power (3 pin)

Speaker (Watts) Two 16-Watt Speaker

Keystone Correction ±30° Vertical; ±30° Horizontal

Weight 10.2 lb (4.6 kg)

Dimensions (W x D x H) 14.5" x 5.2" x 12" (369 x 132 x 295 mm)

Aspect Ratio 16:10 (Native), 4:3, 16:9, Auto

Offset 96%–112%

Projection Screen Size 25.6"~301.1" (0.65–7.64 m), Diagonal 16:10

Projection Distance 51.18"–377" (1.3–9.6 m)

Projection Lens F=2.5~3.26, f=20.91~32.63 mm; manual focus

Uniformity 70%

Maximum Resolution 1080p (1920 x 1080)

Computer Compatibility UXGA, SXGA, XGA, SVGA, VGA, WXGA, 1080p, Mac

Video Compatibility PAL (B, D, G, H, I, M, N, 4.43MHz), NTSC (M, J, 3.58MHz, 4.443MHz), SECAM (B, D, G, K, K1, L, 4.25,MHz, 4.4MHz, 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz) 1080p(24/50/60Hz)

3D Compatibility Side-by-Side:1080i(50/60Hz)

Frame-pack: 1080p(24Hz), 720p(50/60Hz)

Over-Under: 1080p(24Hz), 1080i(50/60Hz), 720p(50/60Hz)

3D glasses are needed and are sold separately.

Refer to user manual for details.

Horizontal Scan Rate 15.375–91.146 KHz

Vertical Scan Rate 24–85 Hz (120 Hz for 3D feature projector)

Displayable Colors 1.07 Billion

Noise Level (Eco mode) 29dB

Power Supply AC input 100–240V, 50–60 Hz, auto-switching

Power Consumption 421W Max (Bright), 329W Max (ECO), <0.5W (Standby)

Lamp Type 310-Watt

Operating Conditions 41–113°F (5–45°C), 85% max humidity

Security Kensington® lock port, security bar, and keypad lock

Remote Control IR remote

Standard Accessories W490 projector, AC power cord, VGA cable, remote control, batteries, multilingual CD-ROM user’s manual, basic user manual and warranty card

Optional Accessories Universal ceiling mount, Optoma screen, DLP® Link™ 3D glasses, wireless HDMI system

Optional Wireless Yes

Projection method Front, rear, ceiling mount, table top

Warranty 3-Year Optoma Express Service, 1-Year on Lamp

1Lamp based projectors brightness and lifetime will vary depending on selected projector mode, environmental conditions and usage. As is common with all lamp based projectors, brightness will decrease over the lamp lifetime. LED projectors do not have a replaceable lamp and the brightness does not decay significantly over the product lifetime.

2Typical lamp life achieved through testing. Will vary according to operational use and environmental conditions

3 +/- 5% tolerance
