Specyfikacja

TECHNICAL SPECIFICATIONS

• 360 Operation: 360° and Portrait mode operation (limitations apply on 360° single axis installation. Please check user manual for more details)
• Aspect Ratio: 16:9 (native) and 4:3 compatible
• Audio: 2 x 10W speakers (stereo)
• Brightness: 6,000 ANSI lumens

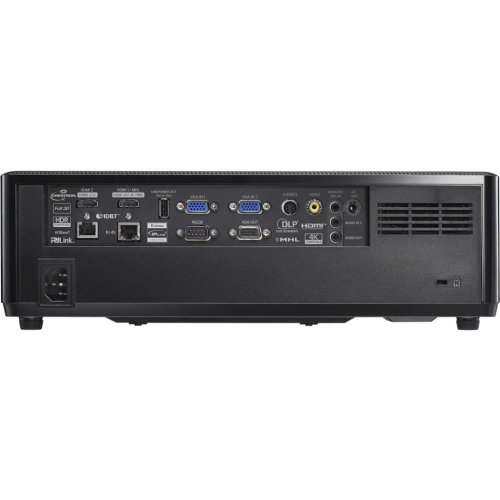

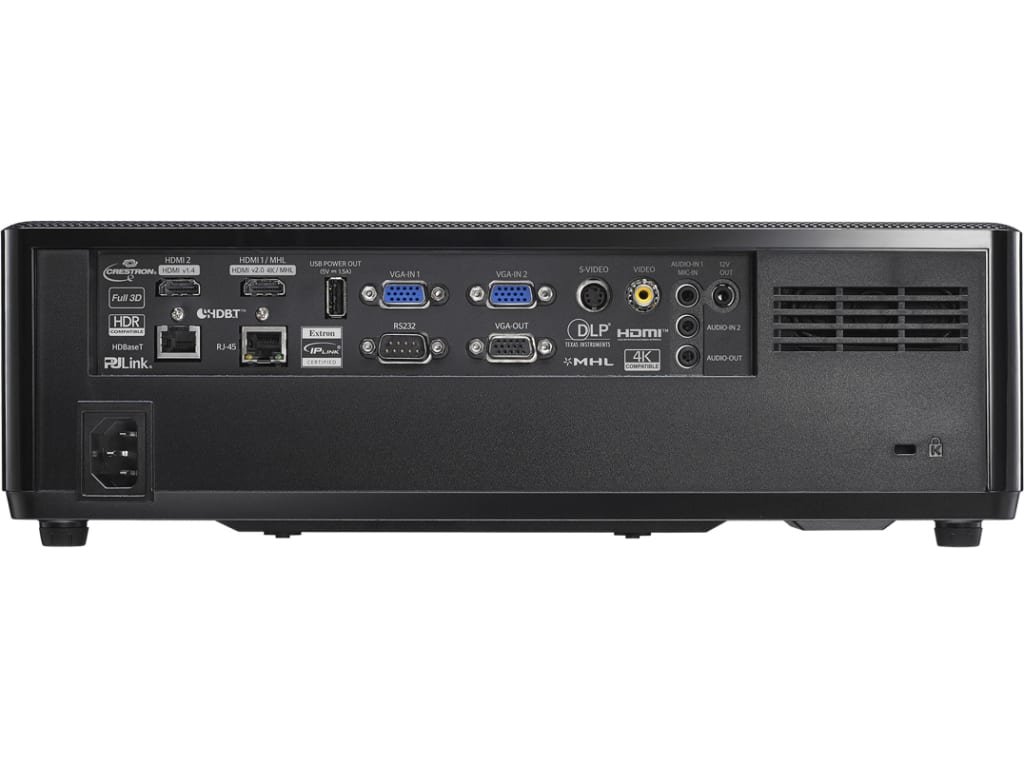

• Connections: 1x HDMI 2.0 (HDCP 2.2, MHL), 1x HDMI 1.4, 1x composite, 1x VGA, 1x composite, 1x VGA out, 1x audio in, 1x mic/audio in, 1x USB-A (power), 1x 12V trigger
• Contrast Ratio: 300,000:1 (Extreme Black enabled) 1,800:1 full on/full off
• Display Technology: Texas Instruments™ 0.65” 1080p DMD
• Displayable Colors: 1.07 billion
• Keystone Correction: ±30° vertical and horizontal
• Light Source Type: DuraCore laser
• Light Source Life: Up to 30,000 hrs (Eco), 20,000 hrs (Normal)
• Lens Shift: 21% vertical
• Maximum Resolution: 4K (4096 x 2160, 60Hz)
• Native Resolution: 1080p (1920 x 1080)
• Noise Level: 33dB
• Offset: 106%
• Operating Temperature: 41–104°F (5–40°C), 85% max humidity
• Power Consumption: Bright: 415W (typical), 477W (max), Eco: 182W (typical), 209W (max)
• Power Supply: AC input 100–240V, 50–60Hz, auto-switching
• Projection Distance: 4.3’- 32.8′
• Projection Lens: F=2.5-3.0 f=17.63-31.63
• Projection Method: Front, rear, ceiling mount, tabletop, 360° and portrait mode operation capable
• Projection Screen Size: 31” – 301”
• Remote Control: Full size remote with laser
• Throw Ratio: 1.2-1.9:1
• Uniformity: 85%
• Zoom Type: 1.6x optical, 0.8 – 2.0x digital

COMPATIBILITY SPECIFICATIONS

• 3D Compatibility: Supports all HDMI 1.4a mandatory 3D formats and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz. Required 3D glasses are sold separately.
• Computer Compatibility: VGA, SVGA, HDTV(720P), WXGA, WXGA+, SXGA, SXGA+, UXGA, HDTV(1080p), WUXGA, 4K UHD (24/30/50/60Hz), 4K (DCI) (24/30Hz)
• Horizontal Scan Rate: 15.375 – 91.146 KHz
• Vertical Scan Rate: 24 – 85 Hz (120 Hz for 1080p 3D feature)
• Video Compatiblity: PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p, 4K UHD 2160p (24/30/50/60 Hz), 4K (DCI) (24/30Hz)

PHYSICAL SPECIFICATIONS

• Dimensions (W x H x D): 14.7” x 4.6” x 11.9”
• Security: Kensington® lock port, password (OSD)
• Weight: 12.3 lbs

OTHER

• What's in the Box?: ZH606-B, AC power cable, remote, batteries, quick start guide and warranty card
• Optional Accessories: Remote, mount
• UPC: 796435 44 454 9
• Warranty Info: 3-year or 20,000 hour light source warranty (whichever comes first), 3-year Optoma Express advance exchange warranty on the projector.
