TECHNICAL SPECIFICATIONS

• 360 Operation: Yes
• Aspect Ratio: 16:10 native, 16:9 and 4:3 compatible
• Audio: 2 x 10W speakers (stereo)
• Brightness: 5,000 ANSI lumens

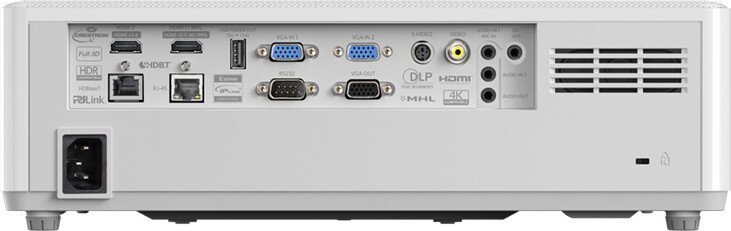

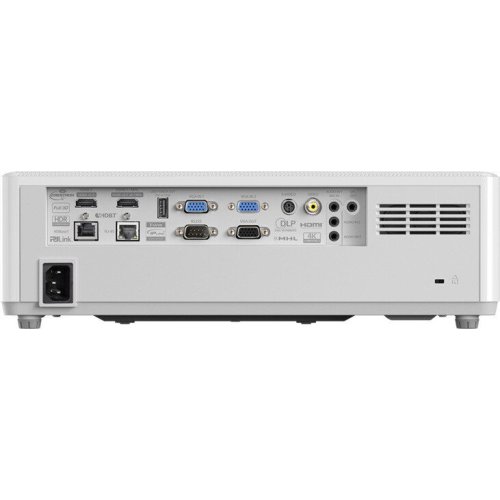

• Connections: 1x HDMI 2.0 (HDCP 2.2, MHL), 1x HDMI 1.4, 1x HDBaseT, 1x composite, 2x VGA, 1x S-video, 1x audio in, 1x mic/audio in, 1x USB-A (power), 1x VGA out (VGA 1 only), 1x audio out, 1x 12v trigger
• Contrast Ratio: 300,000:1 (Extreme Black enabled) 1,800:1 full on/full off
• Display Technology: Texas Instruments™ 0.67” WUXGA DMD
• Displayable Colors: 1.07 billion
• Keystone Correction: ±30° vertical and horizontal
• Light Source Type: Laser phosphor
• Light Source Life: Up to 20,000 hrs
• Lens Shift: +8% vertical
• Maximum Resolution: 4K UHD (3840 x 2160)
• Native Resolution: WUXGA (1920 x 1200)
• Noise Level: 36db (Normal) / 30db (Eco)
• Offset: 99%-107% ±5%
• Operating Temperature: 41–104°F (5–40°C), 85% max humidity
• Outputs: 1x VGA out (VGA 1 only), 2x audio out, 1x 12v trigger
• Portrait Mode: Yes
• Power Consumption: 353W ±15% (Full), 321W±15% (Eco)
• Power Supply: AC input 110– 240V, 50–60 Hz
• Projection Distance: 3.28’- 32.8’
• Projection Lens: F=2.5-3.26, f=20.91-32.62
• Projection Method: Front, rear, ceiling mount, tabletop, 360° and portrait mode operation capable
• Projection Screen Size: 20.8” – 331.6”
• Remote Control: Full size remote with laser
• Throw Ratio: 1.4 – 2.24 (distance/width), ±5% Variance
• Uniformity: 80%
• Zoom Type: 1.6x optical, 0.8 – 2.0x digital

COMPATIBILITY SPECIFICATIONS

• 3D Compatibility: Supports all HDMI 1.4a mandatory 3D formats and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz. Required 3D glasses are sold separately.
• Computer Compatibility: UXGA, SXGA, XGA, SVGA, VGA, WXGA, WUXGA, Mac
• Horizontal Scan Rate: 15.375 – 91.146 KHz
• Vertical Scan Rate: 24 – 85 Hz
• Video Compatiblity: PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p, 4K UHD 2160p (24/50/60 Hz)

PHYSICAL SPECIFICATIONS

• Dimensions (W x H x D): 14.7” x 4.6” x 11.9”
• Security: Kensington® lock port, password (OSD)
• Weight: 12.12 lbs

OTHER

• Optional Accessories: Standard Accessories
• Universal ceiling mount, HDCast Pro, HDBaseT transmitter, 3D glasses: AC power cable, lens cap, remote control, batteries, quick start guide, CD user manual, carrying case
