TECHNICAL SPECIFICATIONS

• 360 Operation: Yes
• Aspect Ratio: 16:10 (native), 16:9, 4:3, LBX and auto compatible
• Audio: 10 Watt Stereo Speaker
• Brightness: 4,000 ANSI lumens

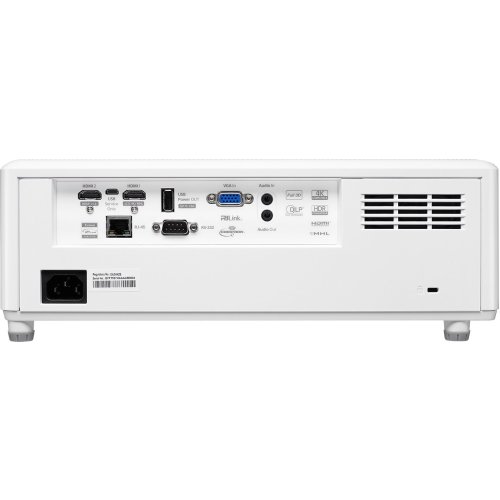

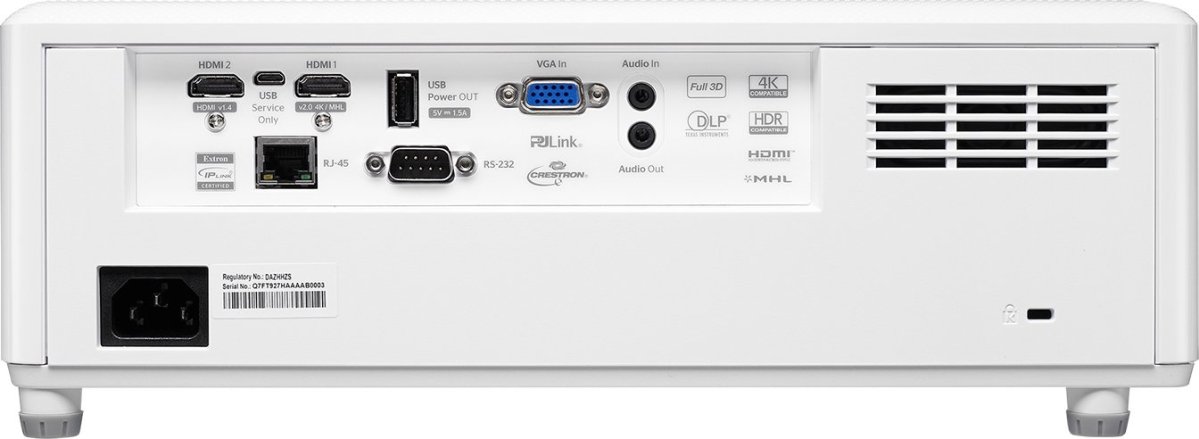

• Connections: 1x HDMI 2.0 (HDCP 2.2, MHL), 1x HDMI 1.4, 1x VGA, 1x audio in (3.5mm), 1x USB-A (power, 5V, 1.5A), 1x micro USB (service)
• Contrast Ratio: 250,000:1 (Extreme Black enabled) 1,800:1 full on/full off
• Display Technology: Texas Instruments™ 0.65” WXGA DMD
• Displayable Colors: 1.07 billion
• Keystone Correction: ±30° Vertical
• Light Source Type: DuraCore laser
• Light Source Life: Up to 30,000 hours (Eco), 20,000 hours (Normal)
• Maximum Resolution: HDMI 2.0: 4K UHD (3840 x 2160 @ 60Hz), 4K (4096 x 2160, 60Hz), HDMI 1.4: WUXGA (1920 x 1200)
• Native Resolution: WXGA (1280 x 800)
• Noise Level: 32dB
• Offset: 113%
• Operating Temperature: 41–104°F (5–40°C), 85% max humidity
• Power Consumption: Bright: 219W typical, 252W max, Eco: 162W typical, 186W max
• Power Supply: AC input 100–240V, 50–60Hz, auto-switching
• Projection Distance: 3’ – 32.6’ (without zoom)
• Projection Lens: f=16.90-21.60mm, F=2.43-2.78mm
• Projection Method: 360˚, front, rear, ceiling mount, table top 360˚: auto dims to 60%±5% in 195˚ – 345˚ orientation Portrait: auto dims to 90%±5%
• Projection Screen Size: 19.7” – 315.8”
• Remote Control: Full size remote with laser pointer
• Throw Ratio: 1.19-1.54:1 ±5%
• Uniformity: 75%
• Zoom Type: 1.3x optical, 0.8 – 2.0x digital

COMPATIBILITY SPECIFICATIONS

• 3D Compatibility: 3D glasses are needed and sold separately. Refer to user manual for details., Supports all HDMI 1.4a mandatory 3D formats (Frame pack, side-by-side, top-bottom) and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz (i.e. 60 or 72 frames per eye).
• Computer Compatibility: VGA, SVGA, HDTV(720P), WXGA, WXGA+, SXGA, SXGA+, UXGA, HDTV(1080p), WUXGA, 4K, 4K UHD
• Horizontal Scan Rate: 15.375 – 91.146 KHz
• Vertical Scan Rate: (120 Hz for 1080p 3D feature), 24 – 85 Hz
• Video Compatiblity: PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p, 4K UHD 2160p (24/50/60 Hz), 4K

PHYSICAL SPECIFICATIONS

• Dimensions (W x H x D): 13.26” x 4.8” x 10.5”
• Security: Kensington® lock port, password (OSD)
• Weight: 9.4 lbs

OTHER

• What's in the Box?: ZW400, AC power cable, remote control, batteries, quick start user manual
• Accessories Part Numbers: 4K UHD Casting and Mirror Dongle: UHDCast Pro, QuickCast Pro 4K HDMI starter kit: QCP-4K-KIT (2 TX, 1 RX, 1 Cradle), QuickCast Pro 4K HDMI starter kit: QCP-SK-4K-HDMI (1 TX and 1 RX), Remote (replacement): BR-3075W, Universal ceiling mount: BM-5001U, Universal Ceiling mount: OCM815W, Universal Ceiling mount: OCM818W-RU
• UPC: 796435 44 494 5
• Warranty Info: 1 Year Parts and Labor Limited Warranty on the Projector, 5-year or 12,000 Hour Light Source Warranty (Whichever Comes First)
