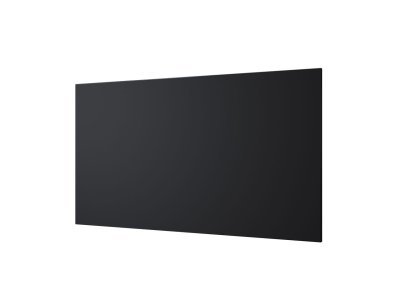

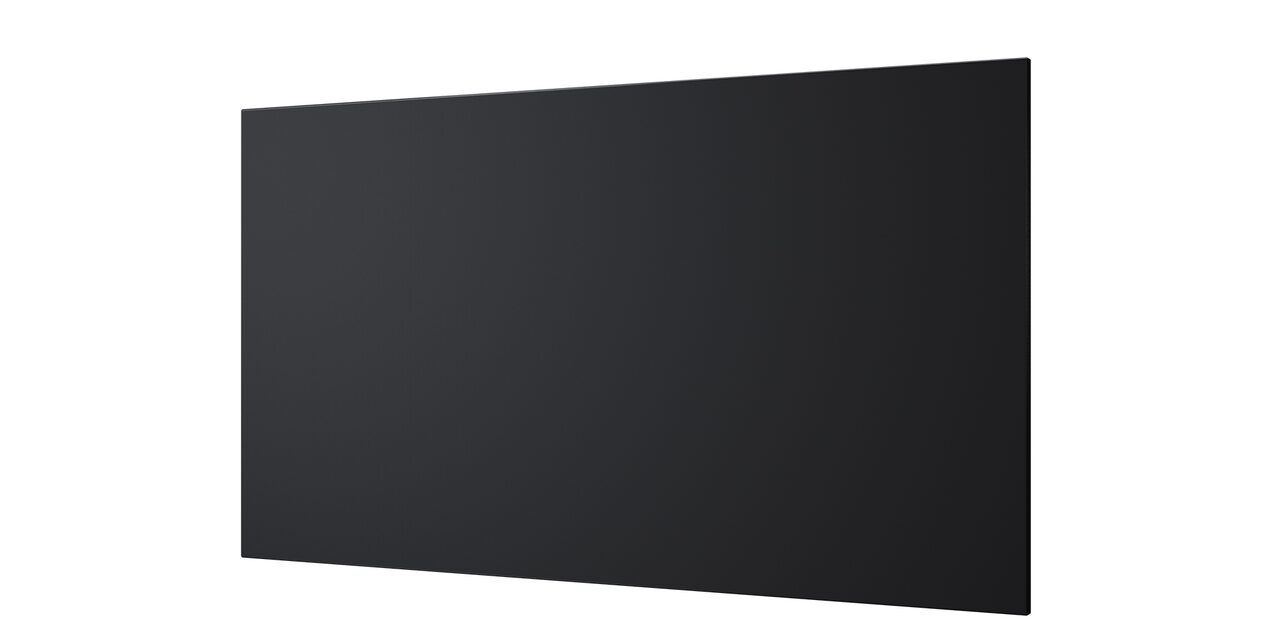

DISPLAY PANEL -> Screen Size（Diagonal） 110-inch (2790.3 mm)
DISPLAY PANEL -> Brightness (typ.) 700 cd/m²
DISPLAY PANEL -> Aspect ratio 16:9
DISPLAY PANEL -> Effective Display Area (W x H) 2432 x 1368 mm (95.74" x 53.85")
DISPLAY PANEL -> Resolution 1920 x 1080
DISPLAY PANEL -> Contrast Ratio (typ.) 4000:1
DISPLAY PANEL -> Viewing Angle(H / V) 170°/160°
DISPLAY PANEL -> LED type / Pixel pitch 3-in-1 SDM / 1.27 mm
CONNECTION TERMINAL(Control Box) -> AC Input IEC C14 x 1
CONNECTION TERMINAL(Control Box) -> HDMI™ IN HDMITM TYPE A Connector × 3
CONNECTION TERMINAL(Control Box) -> HDMI™ OUT HDMITM TYPE A Connector × 1
CONNECTION TERMINAL(Control Box) -> SERIAL IN D-sub 9-pin x 1, RS-232C Compatible
CONNECTION TERMINAL(Control Box) -> IR IN Stereo mini jack (φ 3.5 mm) x 1
CONNECTION TERMINAL(Control Box) -> AUDIO 1 IN (L / R) Stereo mini jack (φ 3.5 mm) x 1(Shared video input except USB and MEMORY VIEWER)
CONNECTION TERMINAL(Control Box) -> AUDIO OUT (L / R) Stereo mini jack (φ 3.5 mm) x 1(Shared video input except USB and MEMORY VIEWER)
CONNECTION TERMINAL(Control Box) -> DIGITAL AUDIO OUT SPDIF x 1
CONNECTION TERMINAL(Control Box) -> LAN RJ45 x 1 for network connection, PJLinkTMsupported
CONNECTION TERMINAL(Control Box) -> USB TYPE A USB Connector Type A x 1 (DC 5V/2A, USB 3.0 is supported)(For Maintenance)
USB Connector Type A x 1 (DC 5 V / 0.5 A, USB 2.0 is supported)
CONNECTION TERMINAL(Control Box) -> USB TYPE B USB Connector Type mini B x 1 (DC 5 V / 0.5 A, USB 2.0 is supported)
CONNECTION TERMINAL(Control Box) -> SLOT x 2
Intel® SDM specification
SLOT1: SDM-S / SDM-L, Supply power 3.3 V / Max 1.1 A, 12 V / Max 5.5 A
SLOT2: SDM-S / SDM-L, Supply power 3.3 V / Max 1.1 A, 12 V / Max 2.75 A
CONNECTION TERMINAL(Display Panel) -> AC Input IEC C14 x 4
CONNECTION TERMINAL(Display Panel) -> VIDEO IN RJ45 x 4
CONNECTION TERMINAL(Power Box) -> AC Input Neutrik (NAC3MP-HC) Rating 30 A x 1
CONNECTION TERMINAL(Power Box) -> AC Output IEC C13 x 6
CONNECTION TERMINAL(Power Box) -> Control Signal RJ45 x 1
CONNECTION TERMINAL(Power Box) -> Sensor Input Stereo Mini Jack (Φ2.5 mm) x 1
ELECTRICAL(All-In-One : Display Panel/Control Box/Power Box) -> Power Supply AC 220 V - 240 V 50 Hz/60 Hz 10.0 A
ELECTRICAL(All-In-One : Display Panel/Control Box/Power Box) -> Power Consumption 1503 W (Shipping Condition) / 1980 W (Rated Condition)
ELECTRICAL(All-In-One : Display Panel/Control Box/Power Box) -> On Mode Average Power Consumption *1 708 W (Shipping Condition)
ELECTRICAL(All-In-One : Display Panel/Control Box/Power Box) -> Power Off Condition Approx.0.5 W
ELECTRICAL(All-In-One : Display Panel/Control Box/Power Box) -> Stand-by Condition Approx.0.5 W
ELECTRICAL -> Apparent power 2064 W
ELECTRICAL -> Energy efficiency class for Europe G class
MECHANICAL -> Dimension(W x H x D)[Display Panel] 2442 x 1378 x 98.5 mm (96.14" x 54.25" x 3.88")
MECHANICAL -> Weight[Display Panel] Approx. 90.0 kg / 198.5 lbs.
MECHANICAL -> Dimension(W x H x D)[Control box] 433 x 650 x 62 mm (17.05" x 25.59" x 2.44")
MECHANICAL -> Weight[Control box] Approx. 6.6 kg / 14.6 lbs.
MECHANICAL -> Dimension(W x H x D)[Power box] 300 x 300 x 62 mm (11.82" x 11.82" x 2.44")
MECHANICAL -> Weight[Power box] Approx. 2.2 kg / 4.9 lbs.
INSTALLATION -> Orientation Landscape
INSTALLATION -> Tilting Angle 0°
INSTALLATION -> Operating Time *2 24h / day
ENVIRONMENTAL -> Operating Environment(Temperature) 0 °C to 40 °C (32 °F to 104 °F) for up to 1400 m (4593 ft) altitude)/
0 °C to 35 °C (32 °F to 95 °F) for between 1400 m to 2800 m (4593 ft to 9186 ft) altitude
ENVIRONMENTAL -> Operating Environment(Humidity) (No condensation) 10% to 80%
Footnote Description
Based on IEC 62087 Ed.2 measurement method
In case of running for a long time, the moving image is recommended to be displayed.
Including the display panel, control box, powerbox, and wall-hanging bracket.
MECHANICAL -> Dimension(W x H x D)[All-in-one] *3 2442 x 1378 x 98.5 mm (96.14" x 54.25" x 3.88")
MECHANICAL -> Weight(W x H x D)[All-in-one] *3 Approx. 109.4kg / 241.2 lbs
