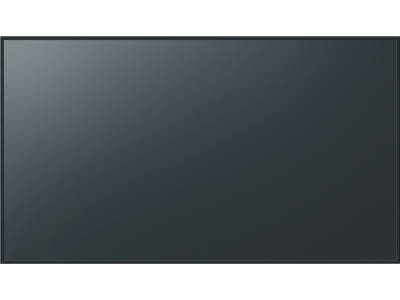

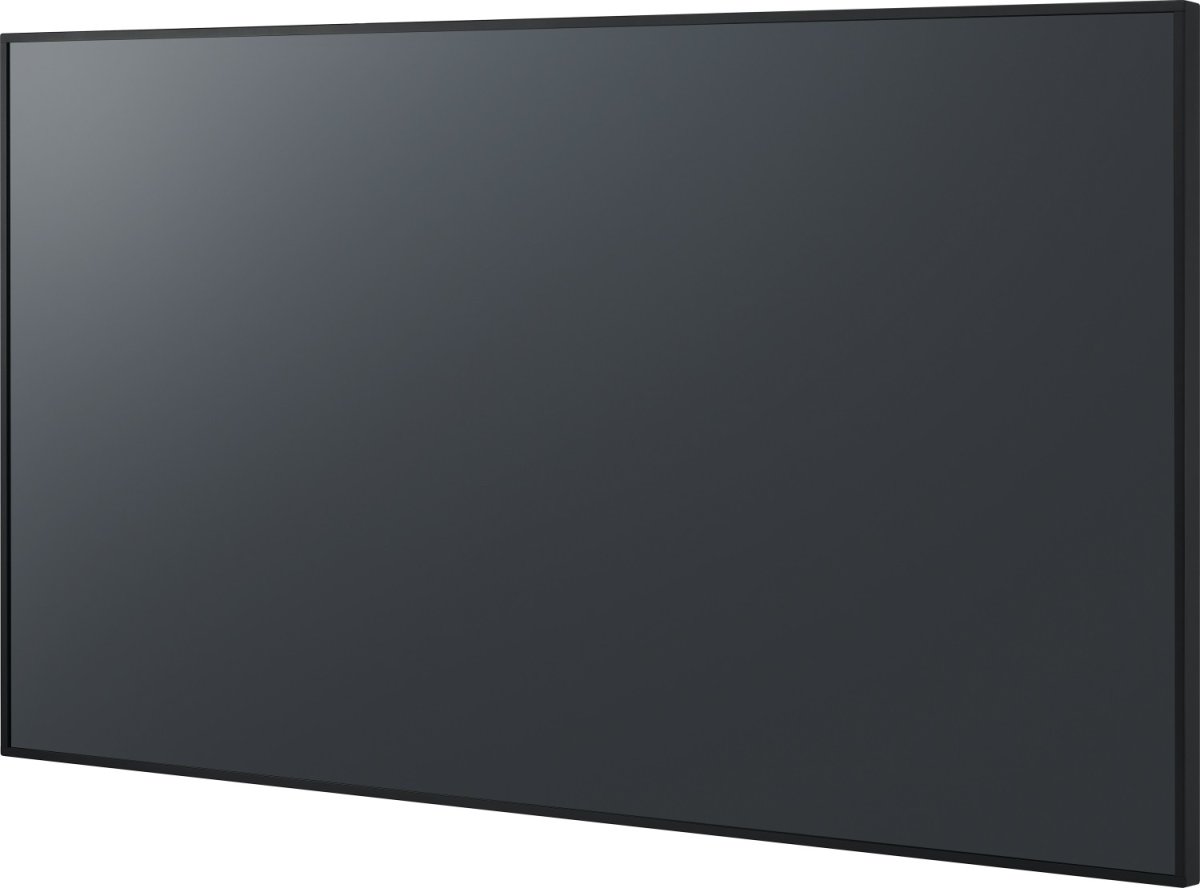

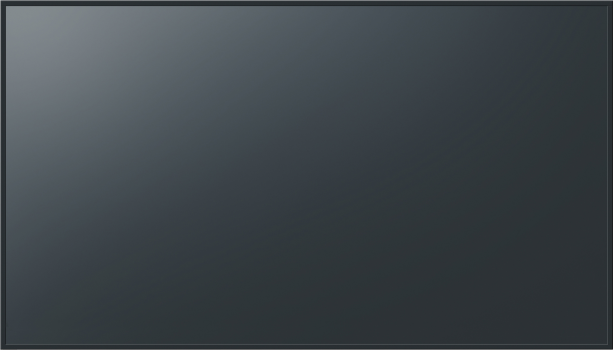

Panel Size 86-inch (2174,2 mm)
Panel Type E-LED
Aspect Ratio 16:09
Effective Display Area (W x H) 1895 x 1065,9 mm (74.6" x 41.96")
Resolution (H x V) 3840 x 2160
Brightness (typ.) 500 cd/m2
Contrast Ratio 1100:1
Response Time 8.0 ms (Typ) (G to G)
Viewing angle [(T/B)/(L/R)] 178°/178° (CR≥10)
Panel Surface Treatment Anti-glare, anti-reflective with the level of haze approx. 5%(±3%)
Detection Method InGlass™ Touch Detection of human finger, passive stylus
Touch Operation Up to 20-point multi-touch
Power Supply 12-24V / 1A external
OS Win 7/8/10, Android, Mac OS*4, Linux
Terminals | HDMI In HDMI Type A Connector x 4
Terminals | DisplayPort IN DisplayPort x 1
Terminals | DisplayPort OUT DisplayPort x 1
Terminals | PC In Mini D-sub 15-pin x 1
Terminals | Serial D-sub 9pin x 1, RS-232C Compatible
Terminals | IR In Stereo Mini jack (M3) x 1
Terminals | Audio In Pin Jack (L/R) x2
Terminals | Audio Out Stereo Mini jack (M3) x 1, SPDIF x 1
Terminals | USB USB Connector Type-A x 2, Type-C x 1 (Internal) Type-A x 1
Terminals | Slot x1 (Intel® SDM specification, Corresponding size SDM-S / SDM-L, 12V x max. 3.5A)
Terminals | LAN RJ45 x 1
Power Requirements 110-127 V AC, 50/60 Hz, 220-240 V AC, 50/60 Hz
Power Consumption max. 371 W (319 W)*5
Power Off Condition 0 W
Stand-by Condition Approx. 0.5 W
Wi-Fi Dongle type
Carton Dimensions (W x H x D) 1.966,5 x 1137,5 x 72,7 [88,6]*6 mm
Carton Size (W x H x D) (mm) 2.163 x 1.405 x 380 mm
Weight 95,9 kg
Gross Weight 118 kg
Wall-Hanging Pitch VESA Compliant 600 x 400 mm (23.6˝ x 15.8˝ ), M8
Protective Glass Thickness 3 mm
Bezel Width 33 mm
Built-in Speaker 24 W [12 W + 12 W]
Orientation Landscape / Portrait
Tilting angle*1 Landscape setting: 0 - 20 degrees forward, Portrait setting: 0 - 20 degrees forward
Operating Environment Temperature: 0° to 40°C (32 °F to 104 °F) / Humidity: 20-80% (Non condensation) / for up to 0-1400 m (4593 ft) altidute. Temperature 0 °C to 35 °C (32 °F to 95 °F) Altitude 1400-2800 m (4593 ft to 7874 ft)
Operating time*2 24 h/day
Options SNMP Support: Ver. 3.0 Multi Monitoring & Control Software: Ver. 3.1 Windows only Early Warning Software: ET-SWA100 Series Whiteboard Software*3: Downloadable for free - for Windows and Mac OS
Note *1: When installing the display vertically, be sure that the power indicator comes to the right side. Please contact your sales representative with regard to the tilt angle before installation.*2: In case running for a long time, the moving image is recommended to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying a moving images.*3: Downloadable for free. For more information, please visit Global website. https://panasonic.net/cns/prodisplays/download/software/whiteboard/*4 Limited performance. *5: When the slot is not in use. *6 Dimensions including SDM-Slot.
