Strona głównaPROJEKTORY MULTIMEDIALNEPANASONICMonitor LED Panasonic TH-84LQ70W
Panasonic

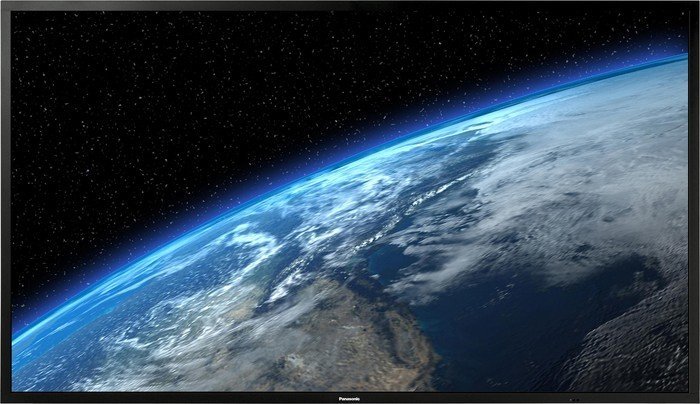

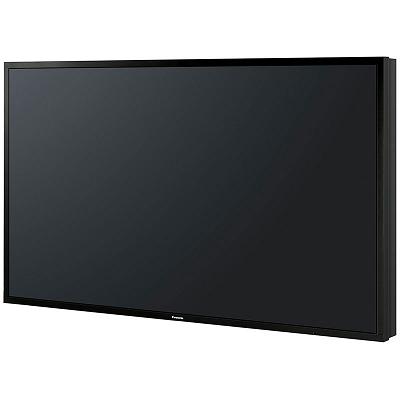

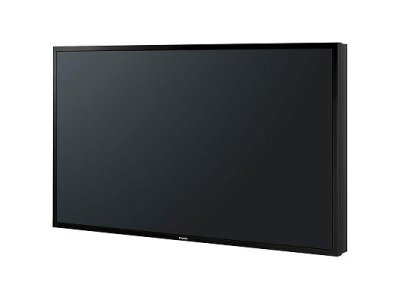

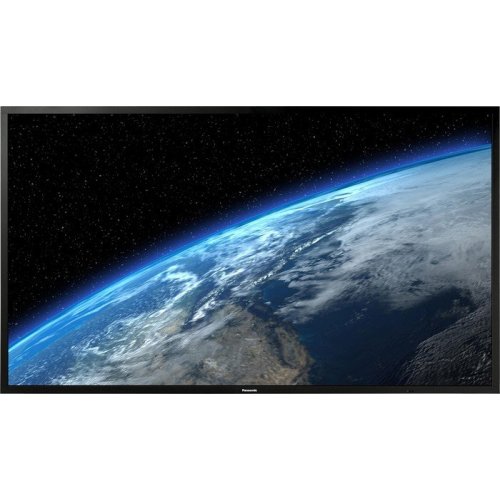

Monitor LED Panasonic TH-84LQ70W

OTRZYMAJ RABAT DODATKOWY NAWET 40%* W każdej chwili możesz się wypisać
Zapisując się do Newslettera, otrzymasz RABAT do 40%* Możesz wypisać się w każdej chwili
Pola wymagane
Cena na telefon

Zapytanie o produkt Monitor LED Panasonic TH-84LQ70W

TokenZmień
Pola wymagane
Produkt niedostępny

Negocjuj cenę

TokenZmień
Pola wymagane
downloadPobierz kartę produktu



Display   84-inch (2,134.6mm)
  IPS / Edge-LED
  16:9
  1,860 x 1,047 mm
  3,840 x 2,160 pixels
  500 cd/m2
Contrast Ratio 1,400:1
Dynamic Contrast Ratio 500,000:1
Response Time 12 ms (G to G)
Viewing Angle (Horizontal/Vertical) 178°/178°
Panel Life Time approx. 50,000 hours (typ)*1
Connection Terminal HDMI IN HDMI TYPE A Connector x 2 (Up to 4K@ 50/60 Hz)*2, HDMI TYPE A Connector x 2 (Up to 2K@ 50/60 Hz)*2
Display Port In DisplayPort x 1 (DP1.2a)*2
DVI-D IN DVI-D 24-pin x 1
AUDIO IN (L/R) Stereo Mini Jack (M3) x 1 set (Shared with PC In)
PC IN Mini D-sub 15-pin x 1(Female)*3
AUDIO IN (L/R) Stereo Mini Jack (M3) x 1 set (Shared with DVI-D In)
Function Slot SLOT NX x 2*4 (Vacant)
Control Serial In D-sub 9-pin x 1*5
LAN RJ45 x 1 100BASE-TX*6
Digital Link RJ45 x 1 100BASE-TX (Shared with LAN)
Audio Audio Out Stereo Mini Jack (M3) x 1
Built in speaker 20 W [10 W + 10 W] (10 % THD)
Electrical Power Requirement 220-240 V AC, 50/60 Hz
Power Consumption 540 W (573 VA), 1843 BTU
On Mode Average Power Consumption*7 415 W
Power Off Condition 0.3 W
Stand-by Condition 0.5 W
Network Stand-by Mode 3 W
Mechanical Dimensions (W x H x D) 1,949 x 1,141 x 99 mm
Bezel Width 32.5 mm
Carton Dimensions (W x H x D) 2,156 x 1,361 x 404 mm
Weight Approx. 108 kg
Gross Weight Approx. 130 kg
Cabinet Material / Colour Metal / Black
Protective Glass YES
Mount Screw Holes Diameter: M16, Valid screw depth: 26mm
ibolt Screw Holes Diameter: M12, Valid screw depth: 25mm
Environment Operating Environment Temperature 0°C to 40°C*8, 0°C to 35°C*9
Humidity 20% to 80% (Non condensation)
Altitude 0 to 2,400 m*10
Storage Environment Temperature -20°C to 60°C
Humidity 20% to 80% (Non condensation)
Standard (Certifications) Safety Regulations Europe: EN60065, IEC60065, EAC; Asia: AS / NZS60065, SASO, IEC60065 / SS, IEC60065 / PAI
Radiation Regulations Europe: EN55022 Class-B, EN55024, EN61000-3-2, EN61000-3-3; Asia: CISPR22 Class-B
Included Accessories AC power cord (approx. 3m), Operating Instructions (Book), (CD-ROM), Remote Control Transmitter, Batteries x2, Clamper, Eyebolt cap, Eyebolt, Panasonic badge attachment plate, Allen wrench
NOTE *1: When the panel lifeframe is at 50% of the brightness under the condition of 25°C (+/-2 degrees celsius). Panel lifeframe may be shortened due to usage environment.
*2: HDCP supported, Embedded audio supported
*3: RGB / YPbPr switchable
*4: Option 3G-SDI terminal board TY-TBN03G: (w/ active throught)
*5: RS-232C compatible
*6: PJLink compatible (shared with DIGITAL LINK)
*7: Based on IEC 62087 Ed. 2 measurement method
*8: for up to 1,400 m altitude
*9: for between 1,400 m and 2,400 m altitude
*10: When using the unit where it is 1,400 m and higher and below 2,400 m above sea level, make sure [High altitude mode] is set to [ON]
