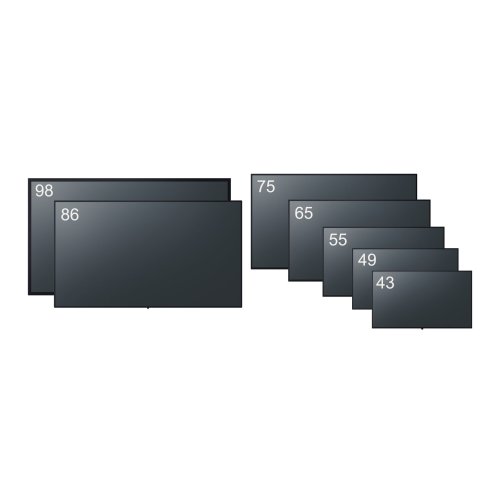

Screen size (diagonal) (inch) 55-inch - 86-inch class (1387.8 mm - 2174.2 mm)
Panel Type IPS/D-LED (86 Inch IPS/E-LED)
Aspect Ratio 16:9
Resolution 3840 x 2160
Brightness (typ.) 500 cd/m2
Contrast Ratio 1200:1
Response Time 8.0 ms (G to G)
Viewing angle [(T/B)/(L/R)] 178° / 178° (CR>10)
Panel Surface Treatment Anti-glare, anti-reflective with the level of haze approx. 5%(±3%)
Touch Panel | Detection method InGlass™ Touch Detection of human finger, passive and active stylus
Touch Panel | Touch operation Up to 20-point multi-touch
Touch Panel | Power Supply 12-24V / 1A external
OS Win 7/8/10, Android, Mac OS*¹, Linux

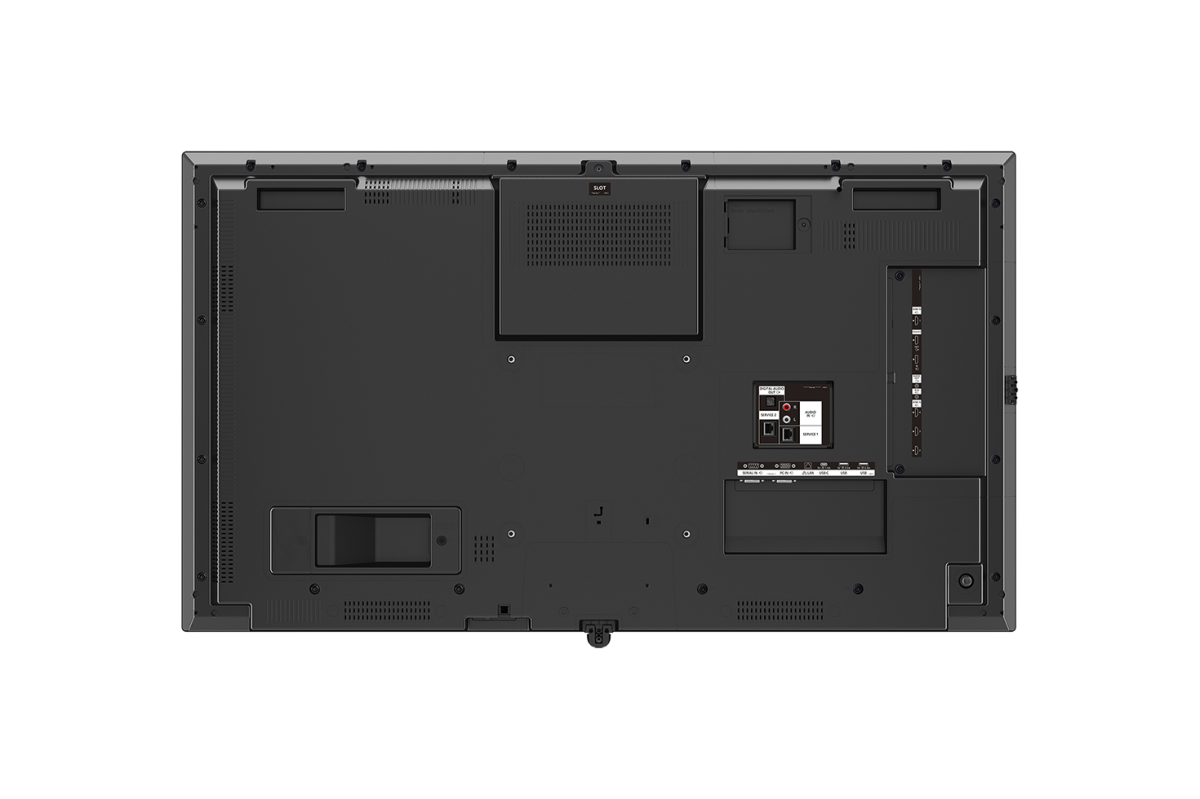

Terminals | HDMI In HDMI TYPE-A Connector x 4 (HDCP 2.2 supported)
Terminals | DisplayPort IN DisplayPort x 1
Terminals | DisplayPort OUT DisplayPort x 1
Terminals | PC In Mini D-sub 15-pin x 1 (Female)
Terminals | Serial D-sub 9-pin x 1 (Female), RS232C Compatible
Terminals | IR In Stereo Mini Jack (M3) x 1
Terminals | Audio In Pin Jack x 2 (L/R)
Terminals | Audio Out Stereo Mini Jack(M3) x1, SPDIF x 1
Terminal | LAN RJ45 x 1
Terminals | Slot x1 (Intel® SDM Specification Capability)
Terminals | USB USB Connector (TYPE-A) x 2, (Type-C) x 1, Internal (Type-A) x 1
Wi-Fi Built-in, IEEE 802.11. a/b/g/n/ Dual Wi-Fi CERTIFIED (Dongle Type with 86 Inch)
Built-in Speaker 55 & 65 Inch = 16 W [8 W + 8 W] / 75 & 86 Inch = 24 W [12 W + 12 W]
Power Requirements 220–240 V AC, 50/60 Hz
Power Off Condition 0 W
Stand-by Condition Approx. 0.5 W
Wall-hanging pitch (mm) VESA Compliant 55 Inch = 400 x 200 mm / 65 Inch 400 x 400 / 75 Inch & 86 Inch = 600 x 400
Protective Glass Thickness 3 mm
Orientation*1 Landscape/Portrait
Tilting angle*2 0-20 degrees forward with landscape/portrait setting
Operating time*3 24 h/day
Operating Environment Temperature: 0 °C to 40 °C (32 °F to 104 °F)/Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) altitude. Temperature: 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400 -2800 m (4593 ft to 7874 ft)
Note *1: When installing the display vertically, be sure that the power indicator comes to the right side. *2: Please contact your sales representative with regard to the tilt angle before installation. *3: In case of long time, the moving image is recommended to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying a moving images.
Effective display area (W x H) (mm) 1209.6 x 680.4 mm
Effective display area (W x H) (inch) 47.62" x 26.78"
Power Consumption 197 W
Dimensions (W x H x D) (mm) 1239 x 712 x 104 mm *Excluding remote IR sensor
Dimensions (W x H x D) (inch) 48.75" x 28.02" x 4.09" *Excluding remote IR sensor
Weight (kg) Approx. 17.2 kg
Bezel width (mm) 12.3 mm (T/R/L), 15.1 mm(B)
Bezel width (inch) 0.48" (T/R/L), 0.59" (B)
Wall-hanging pitch (inch) VESA Compliant 15.8" x 7.9"
Weight (lbs.) 38.0 lbs
