DISPLAY PANEL -> Screen Size 65-inch class (64.5-inch / 1638.9 mm)
DISPLAY PANEL -> Brightness (typ.) 500 cd/m2
DISPLAY PANEL -> Aspect ratio 16:9
DISPLAY PANEL -> Effective Display Area (W x H) 1428.4 x 803.5 mm (56.23" x 31.63")
DISPLAY PANEL -> Resolution 3840 x 2160
DISPLAY PANEL -> Contrast Ratio (typ.) 1200:1
DISPLAY PANEL -> Dynamic Contrast Ratio 50000:1
DISPLAY PANEL -> Response Time (typ.) 8.0 ms (G to G)
DISPLAY PANEL -> Viewing Angle(H / V) 178°/178° (CR＞10)
DISPLAY PANEL -> Panel Surface Treatment Anti-glare type
DISPLAY PANEL -> Haze 0.25

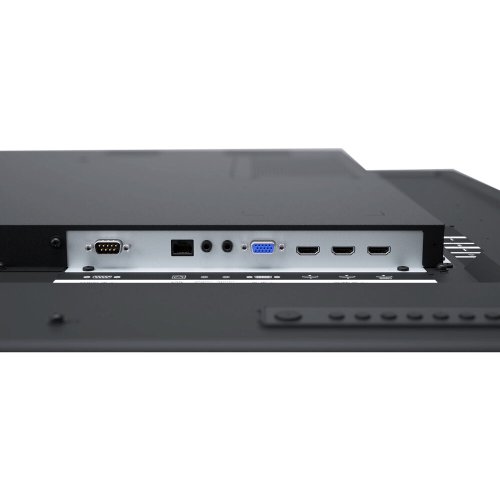

CONNECTION TERMINAL -> HDMI™ IN HDMITM Type A Connector x 3 (HDCP 2.2)
CONNECTION TERMINAL -> PC IN Mini D-sub 15-pin x 1 (DDC2B)
Y/G: with sync 1.0 V [p-p] (75 Ω)
: without sync 0.7 V [p-p] (75 Ω)
PB/CB/B: without sync 0.7 V [p-p] (75 Ω)
PR/CR/R: without sync 0.7 V [p-p] (75 Ω)
HD/VD: TTL (high impedance)
CONNECTION TERMINAL -> SERIAL IN D-sub 9-pin x 1, RS-232C Compatible
CONNECTION TERMINAL -> IR IN Stereo mini jack (φ 3.5 mm) x 1
CONNECTION TERMINAL -> IR OUT Stereo mini jack (φ 3.5 mm) x 1
CONNECTION TERMINAL -> AUDIO 1 IN (L / R) Stereo mini jack (φ 3.5 mm) x 1
CONNECTION TERMINAL -> AUDIO OUT (L / R) Stereo mini jack (φ 3.5 mm) x 1
CONNECTION TERMINAL -> LAN RJ45 x 1 Compatible with PJLinkTM
RJ45 10BASE-T/100BASE-TX

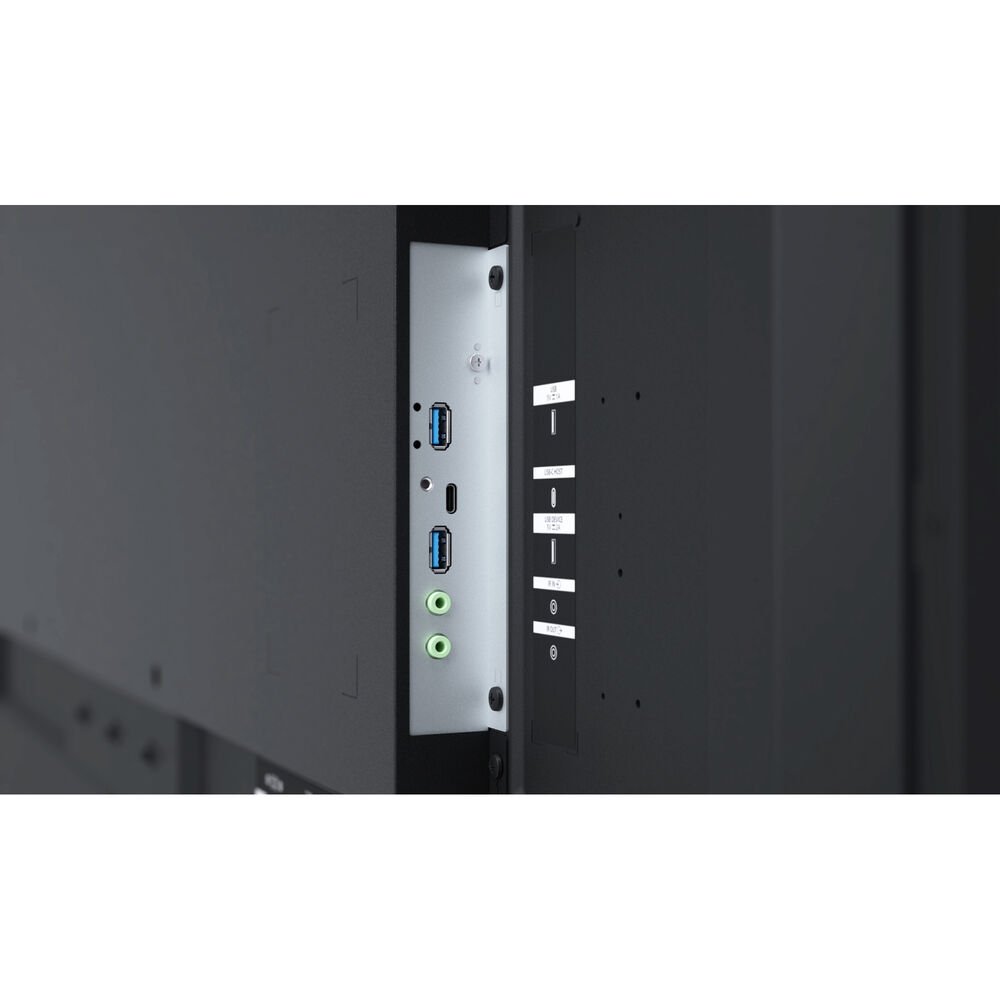

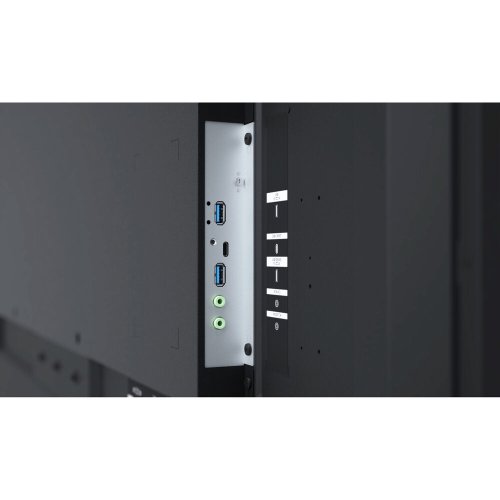

CONNECTION TERMINAL -> USB TYPE A USB Type A Connector x 1 (DC 5 V / 1 A, USB 3.0 is supported)
USB Type A Connector x 1 (DC 5 V / 2 A, USB 2.0 is supported)
CONNECTION TERMINAL -> USB TYPE C USB Type C Connector x 1 (Max 60 W Power Delivery compatible, USB2.0 is supported, DP Alt Mode compatible)
CONNECTION TERMINAL -> SLOT Intel® SDM specification (SDM-S / SDM-L, Supply power 3.3 V / Max 1.1 A , 12 V / Max 5.5 A)
AUDIO -> Built in Speaker 20 W [10 W+10 W]
ELECTRICAL -> Power Supply AC 110 - 240 V 50 Hz / 60 Hz
ELECTRICAL -> Power Consumption 340 W
ELECTRICAL -> On Mode Average Power Consumption *1 226 W
ELECTRICAL -> Power Off Condition Approx. 0.3 W
ELECTRICAL -> Stand-by Condition Approx. 0.5 W
ELECTRICAL -> Apparent power 357 VA
ELECTRICAL -> Energy efficiency class for Europe G Class
MECHANICAL -> Dimension(W) 1463 mm (57.58")
MECHANICAL -> Dimension(H) 838 mm (32.97")
MECHANICAL -> Dimension(D) 94 mm (3.68"), 69 mm (2.72")
MECHANICAL -> Weight Approx. 29.7 kg (65.5 lbs)
MECHANICAL -> Bezel Width(T) 14.9 mm (0.59")
MECHANICAL -> Bezel Width(B) 14.9 mm (0.59")
MECHANICAL -> Bezel Width(L) 14.9 mm (0.59")
MECHANICAL -> Bezel Width(R) 14.9 mm (0.59")
MECHANICAL -> Pitch for Wall-Hanging / Screw / Screw hole depth VESA Compliant 400 x 400 mm (15.8" x 15.8") / M8 / 20 mm (0.8")
INSTALLATION -> Orientation Landscape / Portrait
INSTALLATION -> Tilting Angle Landscape : 0 - 20 degrees forward / backward
Portrait : 0 - 20 degrees forward / backward
INSTALLATION -> Operating Time *6 18 h/day
ENVIRONMENT -> Operating Environment(Temperature) 0℃ to 40℃ : 0℃ to 35℃
ENVIRONMENTAL -> Operating Environment(Humidity) (No condensation) 20% to 80%
Footnote Description
Please contact your sales representative with regard to the tilt angle before installation.
: Excluding handles
: Including handles
: When installing the display vertically, be sure that the power indicator comes to the right side.
: In case of long time, the moving image is recommended to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying a moving images.
