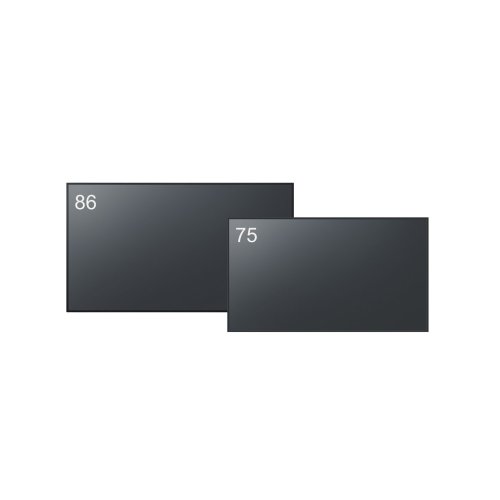

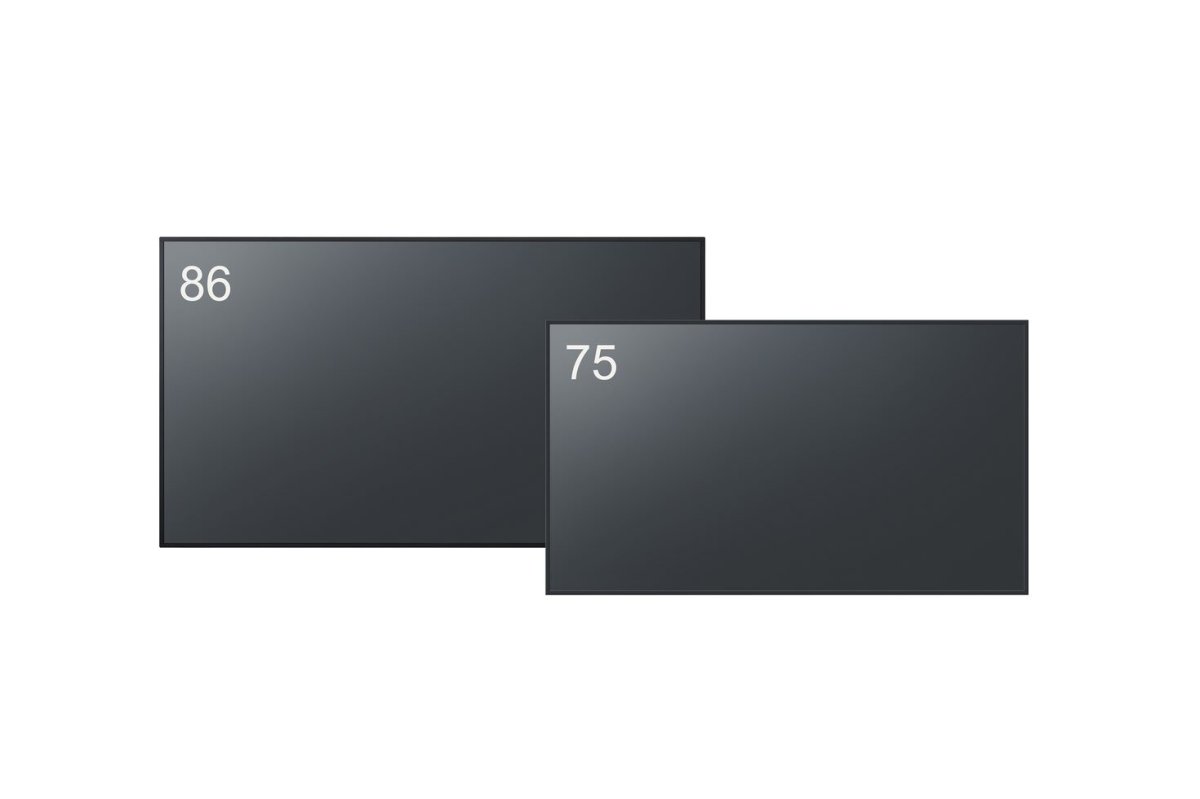

Screen size (diagonal) (inch) 86-inch class (2174.2 mm)
Panel Type IPS / D-LED
Aspect Ratio 16:9
Effective display area (W x H) (mm) 1895.0 x 1065.9 mm
Effective display area (W x H) (inch) 74.60" x 41.96"
Resolution 3840 x 2160
Brightness (typ.) 1200 cd/m²
Contrast Ratio 1200:1
Response Time 8.0ms (G to G)
Viewing angle [(T/B)/(L/R)] 178° / 178° (CR>10)
Panel Surface Treatment Anti-glare low reflection type (Haze 3 %)
Terminals | HDMI In HDMI TYPE-A Connector x 2 (Compatible with HDCP 2.2)
Terminals | DisplayPort IN DisplayPort x 1 (HDCP2.2)
Terminals | DisplayPort OUT DisplayPort x 1 (HDCP1.4)
Terminals | IR IN / OUT Stereo Mini Jack (M3) x 1 / x 1
Terminals | Audio In Stereo Mini Jack (M3) x 1 0.5V [rms] (Shared each video input except USB and MEMORY VIEWER)
Terminals | Audio Out Stereo Mini Jack (M3) x 1, 0.5 V [rms], Variable (-∞ ~ 0 dB) (1 kHz 0 dB Input, 10 kΩ Load)
Terminal | LAN RJ45 x 1, 10 BASE-T / 100 BASE-TX, Compatible with PJLink™
Terminals | Slot Intel® SDM specification Corresponding size SDM-S/SDM-L, Supply power 3.3 V/MAX 1.1 A, 12 V/MAX 5.5 A
Terminals | USB USB Connector (TYPE-A) x 2, DC 5 V/2 A, DC 5V/1A (USB 3.0 Supported)
Built-in Speaker 20 W [10 W + 10 W]
Power Requirements 110–127 V AC, 50/60 Hz, 220–240 V AC, 50/60 Hz
Power Consumption 730 W
Power Off Condition Approx. 0.3 W
Stand-by Condition Approx. 0.5 W
Dimensions (W x H x D) (mm) 1929 x 1100 x 96* mm
Dimensions (W x H x D) (inch) 75.95" x 43.31" x 3.75"
Weight (kg) Approx. 57.8 kg (127.4 lbs)
Bezel width (mm) 15.5 mm (T/B/L/R)
Bezel width (inch) 0.7" (T/B/L/R)
Wall-hanging pitch (mm) VESA Compliant 600 x 400 mm (23.6" x 15.8") M8
Orientation Landscape/Portrait*1
Tilting angle Landscape : 0-20 degrees forwardPortrait : 0-20 degrees forward
Operating Environment Temperature: 0 °C to 40 °C (32 °F to 104 °F)/Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) altitude.Temperature: 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400 -2800 m (4593 ft to 7874 ft)
External Speaker 30 W [15 W + 15 W] (10% THD)
Note *1: When installing the display vertically, be sure that the power indicator comes to the right side. *2: In case of long time, the moving image is recommended to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying a moving images. * The handlepart excluded, the thickness is 82mm (3.22")
Terminals | DVI-D In DVI-D 24-pin x 1 (HDCP 1.1)
Terminals | Serial In D-sub 9-pin x 1, RS232C Compatible
Operating time*2 24 h/day
Terminals | Sensor 4-pole sub-mini jack x 1
Terminals | DIGITAL LINK RJ45 x 1, 100 BASE-TX, Compatible with long reach mode and PJLink™
