Panel Type IPS/E-LED
Aspect Ratio 16:9
Effective display area (W x H) (mm) 1895.0 x 1065.9 mm
Effective display area (W x H) (inch) 74.60" x 41.96"
Resolution 3840 x 2160
Brightness (typ.) 500 cd/m2
Contrast Ratio 1200:1
Response Time 8.0 ms (G to G)
Viewing angle [(T/B)/(L/R)] 178° / 178° (CR>10)
Panel Surface Treatment Anti-glare low reflection type (Haze 3 %)

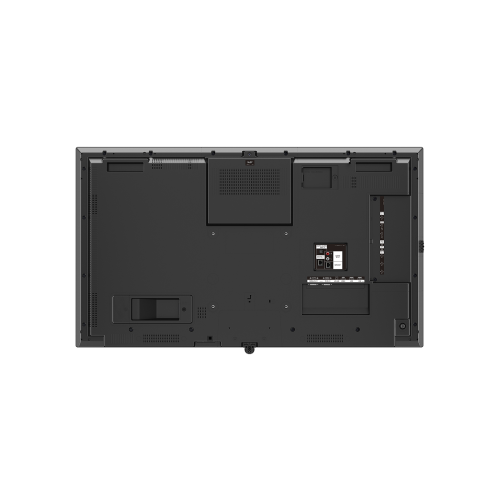

Terminals | HDMI In HDMI TYPE-A Connector x 4 (HDCP 2.2 supported)
Terminals | DisplayPort IN DisplayPort x 1
Terminals | DisplayPort OUT DisplayPort x 1
Terminals | Serial D-sub 9-pin x 1, RS232C Compatible
Terminals | Audio In Pin Jack x 2 (L/R)
Terminals | Audio Out Stereo Mini Jack(M3) x1, SPDIF x 1
Terminal | LAN RJ45 x 1
Terminals | Slot x1 (Intel® SDM Specification Capability)
Terminals | USB USB Connector (TYPE-A) x 2, (Type-C) x 1, Internal (Type-A) x 1
Wi-Fi Dongle, IEEE 802.11. a/b/g/n/ Dual Wi-Fi CERTIFIED
Built-in Speaker 24 W [12 W + 12 W]
Power Requirements 110–127 V AC, 50/60 Hz, 220–240 V AC, 50/60 Hz
Power Consumption 364 W
Power Off Condition 0 W
Stand-by Condition Approx. 0.5 W
Dimensions (W x H x D) (mm) 1929 x 1100 x 81 mm *Excluding remote IR sensor
Dimensions (W x H x D) (inch) 75.91" x 43.28" x 3.16" *Excluding remote IR sensor
Weight (kg) Approx. 62.9 kg
Bezel width (mm) 15.3 mm (T/R/L/B)
Bezel width (inch) 0.6" (T/R/L/B)
Wall-hanging pitch (inch) VESA Compliant 23.6" x 15.8"
Wall-hanging pitch (mm) VESA Compliant 600 x 400 mm
Operating Environment Temperature: 0 °C to 40 °C (32 °F to 104 °F)/Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) altitude. Temperature: 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400 -2800 m (4593 ft to 7874 ft)
Weight (lbs.) 138.7 lbs
Terminals | PC In Mini D-sub 15-pin x 1 (Female)
Terminals | IR In Stereo Mini Jack (M3) x 1
Note *1: When installing the display vertically, be sure that the power indicator comes to the right side. *2: Please contact your sales representative with regard to the tilt angle before installation. *3: In case of long time, the moving image is recommended to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying a moving images.
Orientation*1 Landscape/Portrait
Tilting angle*2 0-20 degrees forward with landscape/portrait setting
Operating time*3 24 h/day

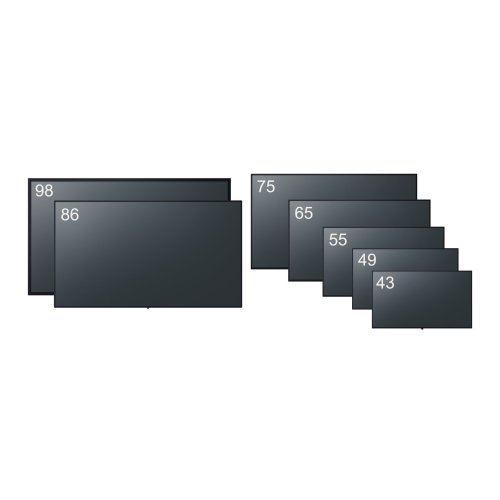

Screen size (diagonal) (inch) 86-inch class (2174.2 mm)
