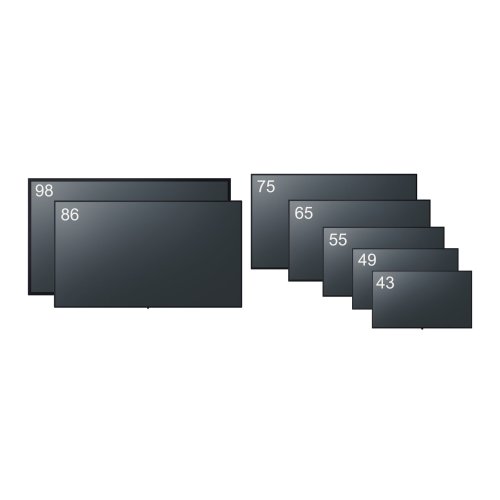

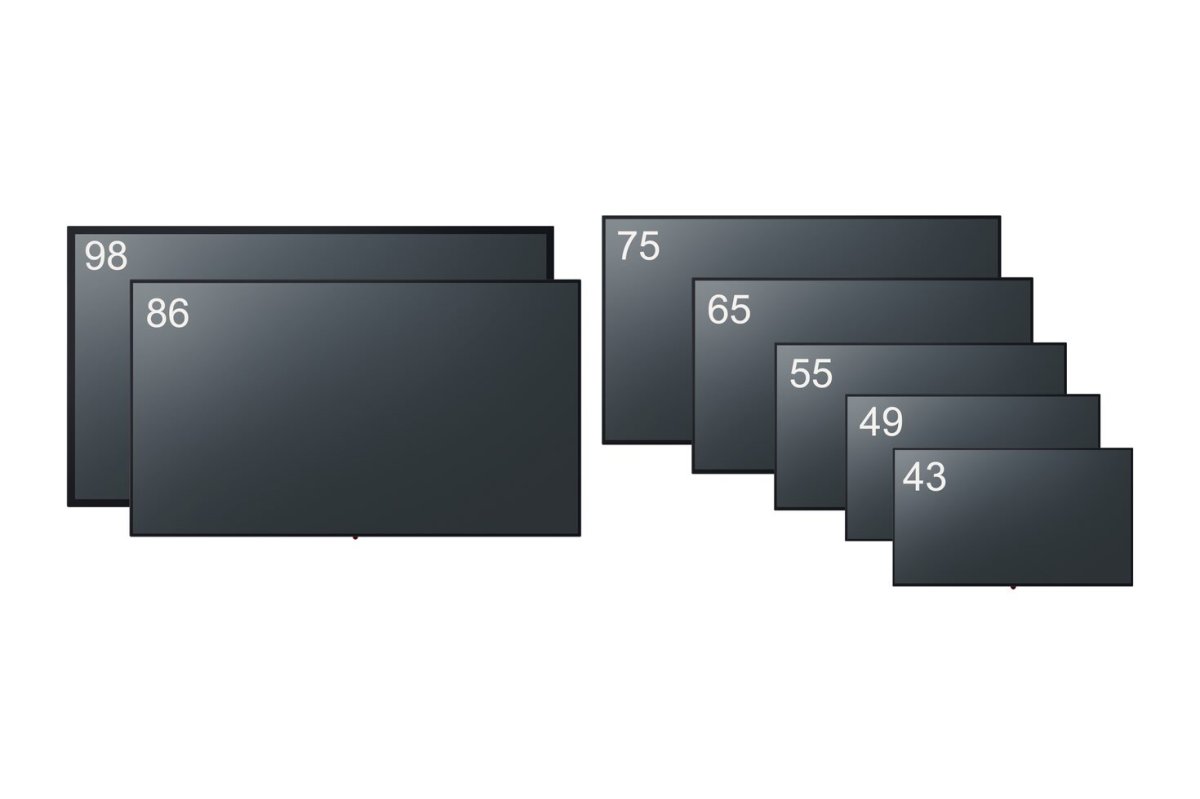

Screen size [diagonal] (inch) 98-inch class (2476.9 mm)
Panel Type IPS/D-LED
Aspect Ratio 16:9
Effective display area (W x H) (mm) 2158.8 x 1214.3 mm
Effective display area (W x H) (inch) 84.99" x 47.80"
Resolution 3840 x 2160
Brightness (typ.) 500 cd/m2
Contrast Ratio 1200:1
Response Time 8.0 ms (G to G)
Viewing angle [(T/B)/(L/R)] 178° / 178° (CR>10)
Panel Surface Treatment Anti-glare type (Haze 25 %)
Terminals | HDMI In HDMI TYPE-A Connector x 4
Terminals | PC In Mini D-sub 15-pin x 1 (Female)
Terminals | Serial D-sub 9-pin x 1 (Female), RS232C Compatible
Terminals | IR In Stereo Mini Jack (M3) x 1
Terminals | Audio In 1 Pin Jack (L/R) x 1 (TBD)
Terminals | Audio Out Stereo Mini Jack (M3) x 1, SPDIF×1
Terminal | LAN RJ45 x 1
Terminals | USB USB Connector Type-A x 2, Type-C x 1, (Internal) Type-A x 1
Wi-Fi Dongle, IEEE 802.11. a/b/g/n/ Dual Wi-Fi CERTIFIED
Built-in Speaker 24 W [12 W + 12 W]
Power Requirements 110–127 V AC, 50/60 Hz, 220–240 V AC, 50/60 Hz
Power Consumption 650 W
Power Off Condition 0 W
Stand-by Condition Approx. 0.5 W
Dimensions (W x H x D) (mm) 2216 x 1271 x 91 mm *Excluding remote IR sensor
Dimensions (W x H x D) (inch) 87.25" x 50.02" x 3.55" *Excluding remote IR sensor
Weight (kg) Approx. 99.4 kg
Weight (lbs.) 219.2 lbs
Bezel width (mm) 28.2 mm (T/R/L/B)
Bezel width (inch) 1.11" (T/R/L/B)
Wall-hanging pitch (mm) VESA Compliant 800 x 400 mm
Wall-hanging pitch (inch) VESA Compliant 35.5" x 23.7"
Orientation Landscape (Not support to the portrait installation)
Tilting angle*1 0-20 degree forward
Operating time*2 24 h/day
Note *1: Please contact your sales representative with regard to the tilt angle before installation. *2: Displaying a still image for a long time may cause burn-in (image persistence artifacts), it could be mitigated when display video image.
Operating Environment Temperature: 0 °C to 40 °C (32 °F to 104 °F)/Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) altitude. Temperature: 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400 -2800 m (4593 ft to 7874 ft
